1.5.5 Tri Service Group Example with Two HEUs
This tri-service group example supports two HEUs. In this topology, the services routed via the two HEUs can be grouped in any
combination between the two, providing up to three service groups. These groups of services are all routed towards a common
OIU. Each OIU module (OIM) can be configured to support any (legal) combination of service groups and the corresponding
services are routed from the OIM to its hosted RAU units.
Note: Multiple service groups allocated to the same OIM cannot share any identical frequency bands.

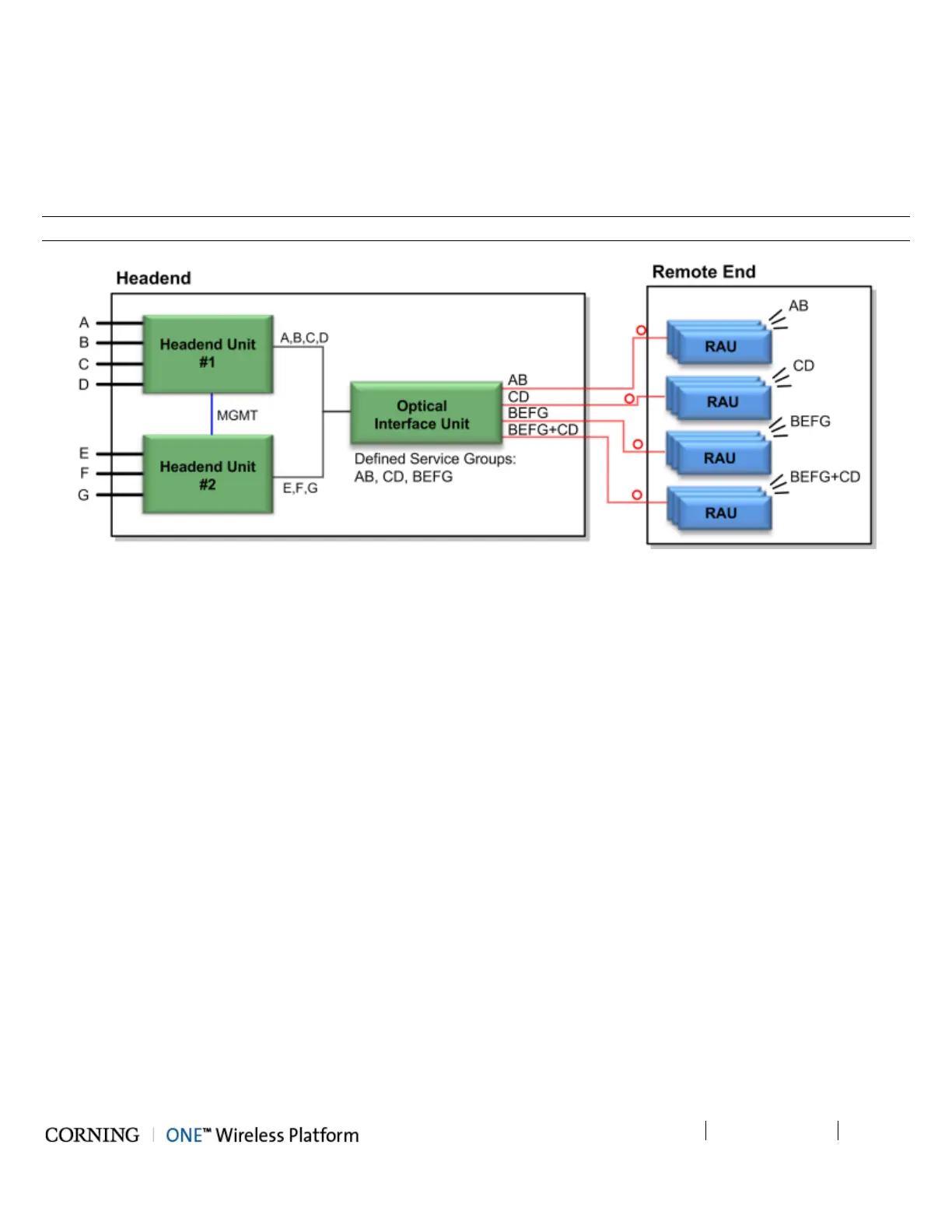

Figure 1-12. Example of Tri-Service Group Configuration with Two HEUs
