Appendix A: RAU Upgrades P/N 709C011801 Page 124
6.2.4 Additional Bracket Installation Options
Note: A T-Bar Mounting Bracket can be used (not provided) to mount the GEU-S below an acoustic ceiling.
1. Referring to Figure 6-9, install the T-Bar on the ceiling above the acoustic tiles (according to manufacturers’ instructions).
2. Make sure to allow for a minimum of 1-in between ceiling tile and GEU-S.

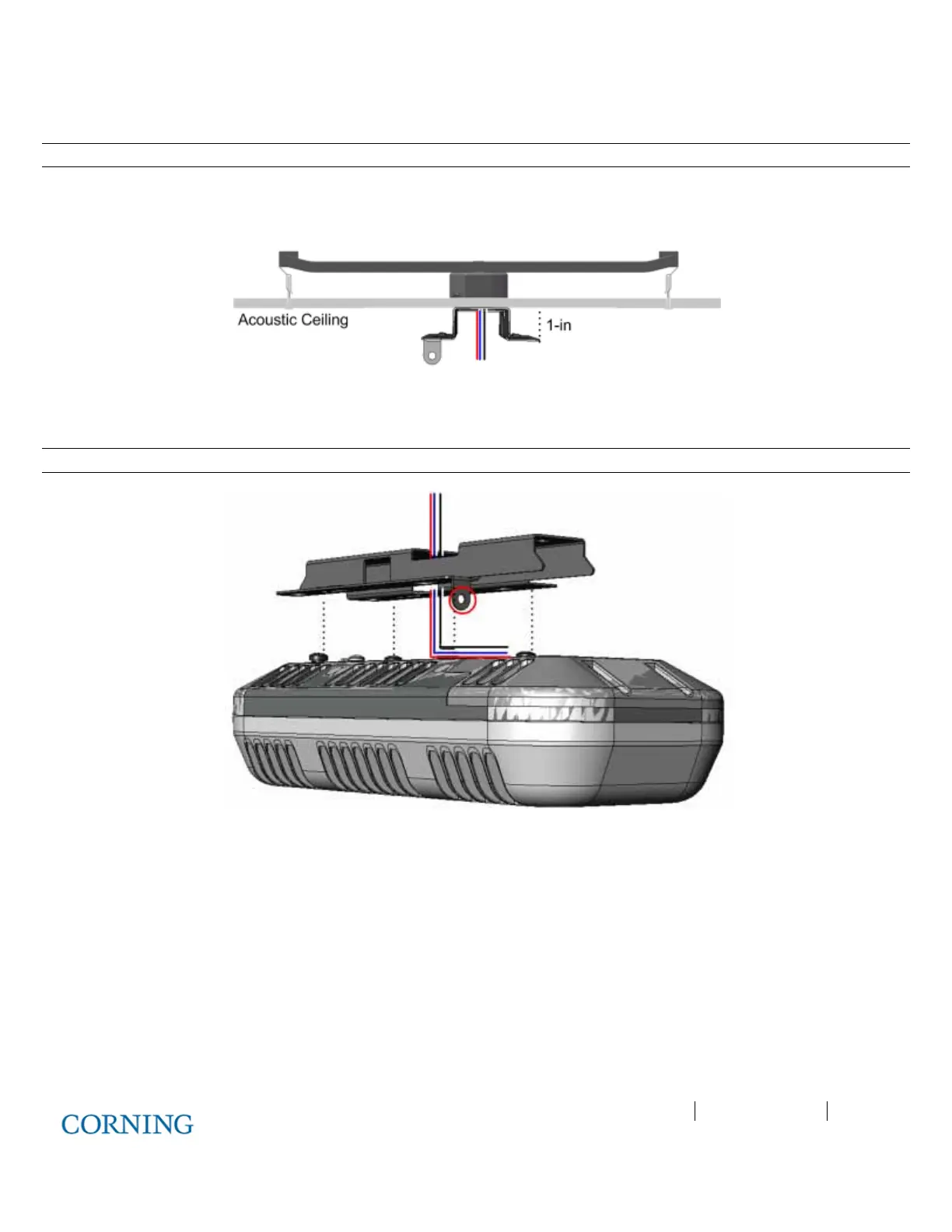

Figure 6-9: Below Ceiling Installation
3. Route the connections cables through the center of the GEU-S Mounting Bracket.
Note: The safety screw tab (circled in Figure 6-10) should face the same direction as the GEU-S connectors.
Figure 6-10: Routing Cables and Mounting GEU-S on Bracket
4. Install GEU-S bracket on the T-Bar, using any of the appropriate bracket installation holes.
