Appendix A: RAU Upgrades P/N 709C011801 Page 123
DRAFT
To install the mounting bracket
Mount the bracket on the wall (Figure 6-7) or concrete ceiling (Figure 6-8) using any of the screw hole sets and the appropriate
screws (not provided).

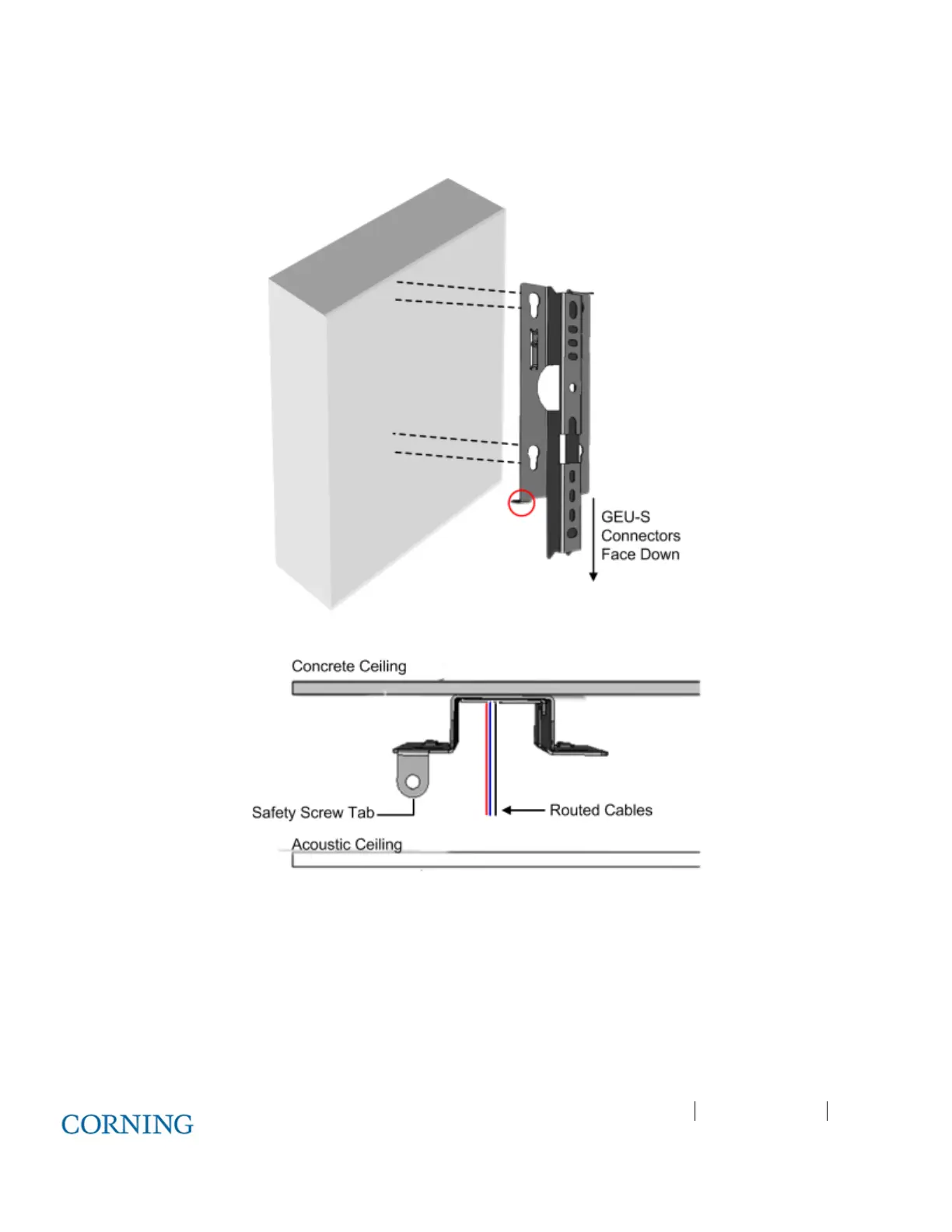

Figure 6-7: Mounting Bracket on Wall (Routed Cables Not Shown)
Figure 6-8: Bracket Installation and Routed Cables
