Installation – RF Path Elements P/N 709C011801 Page 82

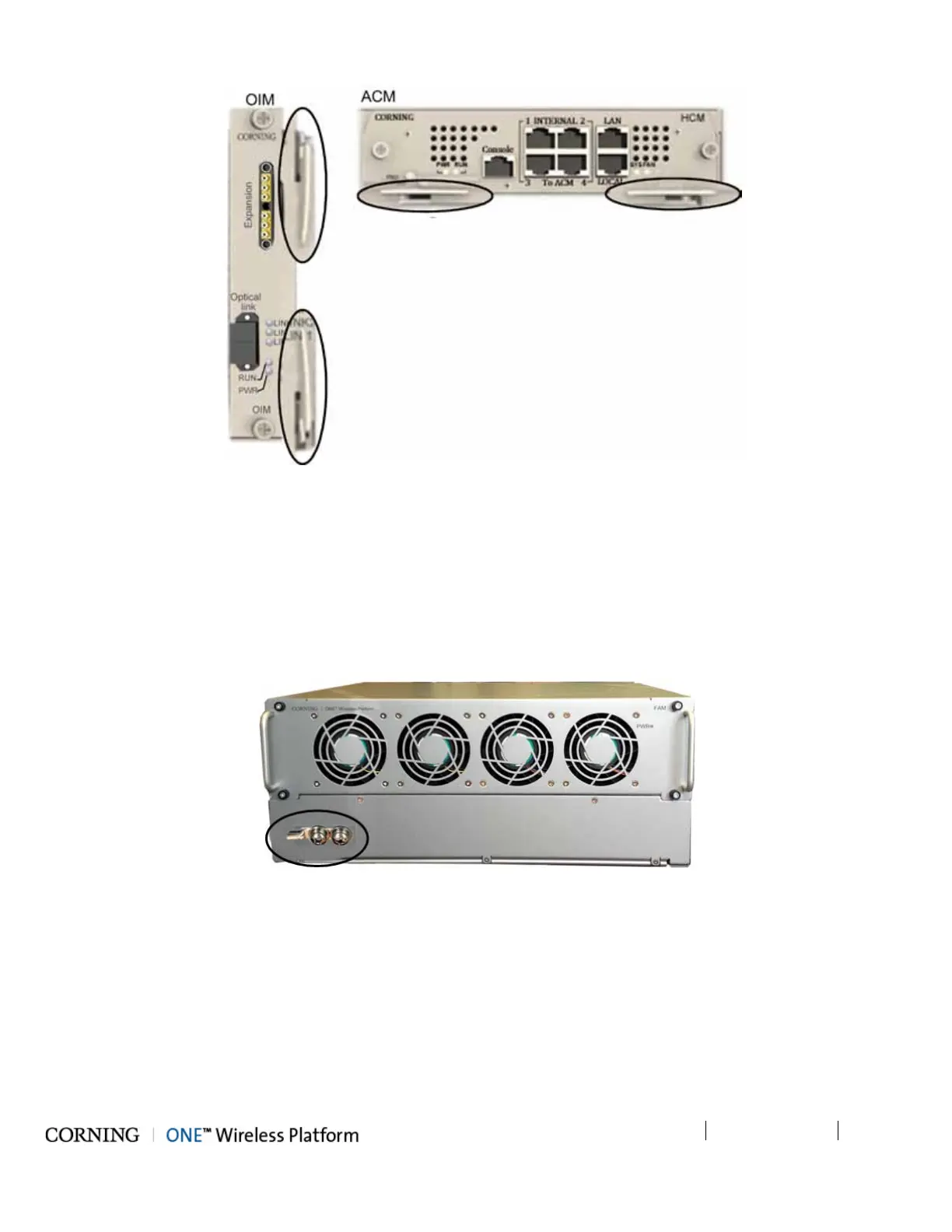

Figure 5-28. Example of Module Type Captive Screws and Ejectors
5.1.3.4 Grounding Chassis
1. The grounding connection is performed via a two-hole, standard barrel grounding lug located on the HEU rear panel (see
Figure 5-29).
• For use with stranded copper wire conductors
• 10-14 AWG
• Holes - 1/4 inch.
Figure 5-29. OIU Grounding Lug (Chassis Rear)
