Appendix A: RAU Upgrades P/N 709C011801 Page 122

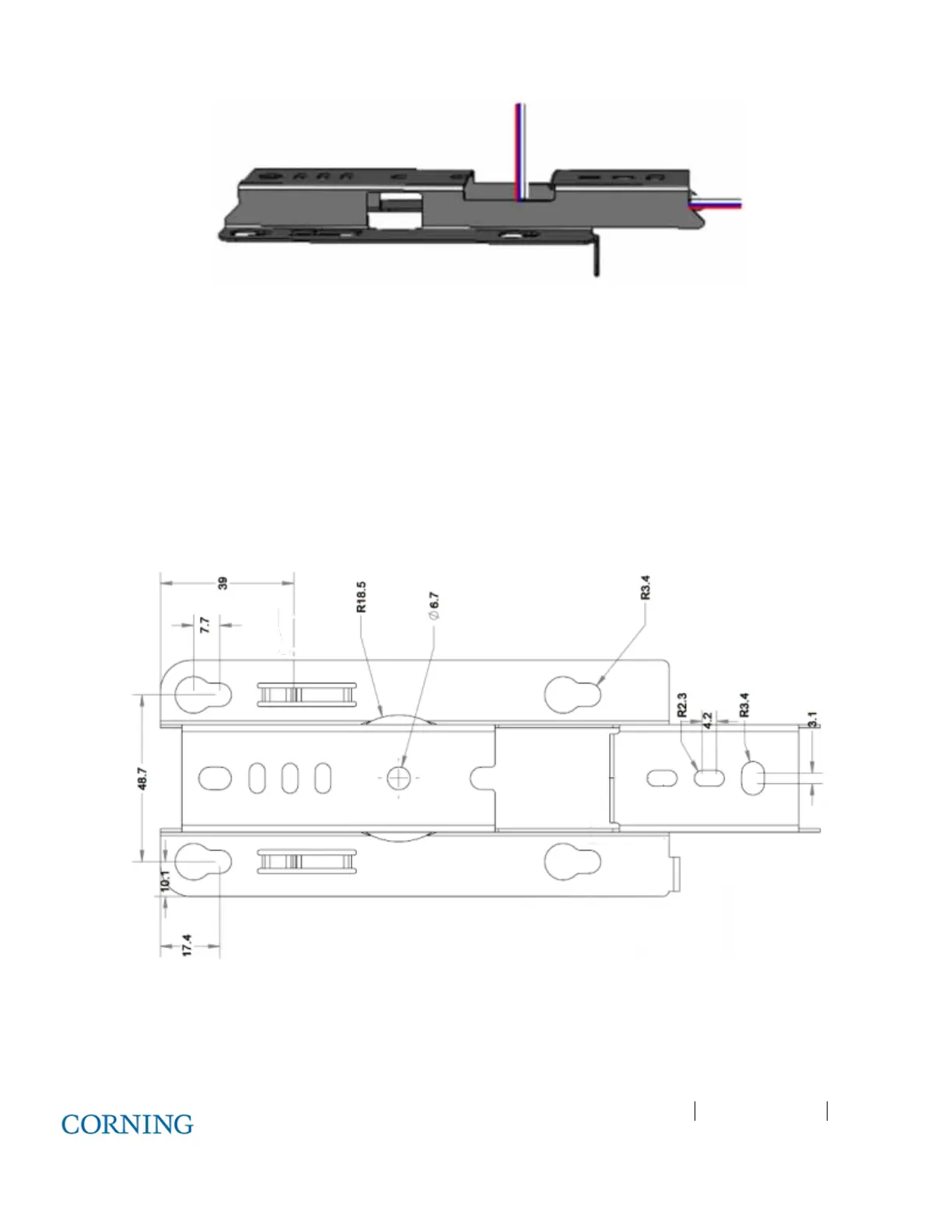

Figure 6-5: Mounting Bracket on Wall
6.2.3 Installing the Mounting Bracket
Note the following:
• For wall mount installations - GEU-S must be installed parallel to the wall with the connectors facing downwards. See
Figure 6-7
• For above acoustic ceiling installations:
• Allow for at least 1 inch above the acoustic ceiling for air flow cooling.
• Safety screw tab (shown in Figure 6-8) should be positioned to face the same direction as the GEU-S connectors.
• Refer to Figure 6-6 for bracket dimensions.
Figure 6-6: Mounting Bracket Dimensions
