CORNING ONE - Mounting ICU in 19-IN Rack

Installation – RF Path Elements P/N 709C011801 Page 94
DRAFT
5.2.1.4 Mounting ICU in 19-IN Rack
Note the following:
• Continue to next section if ICU is to be mounted on wall.
• If the ICU is rack mounted, the modules can be inserted either before or after the unit is mounted.
1. Mount the ICU in the 19-in communication rack and secure using pre-assembled bracket.

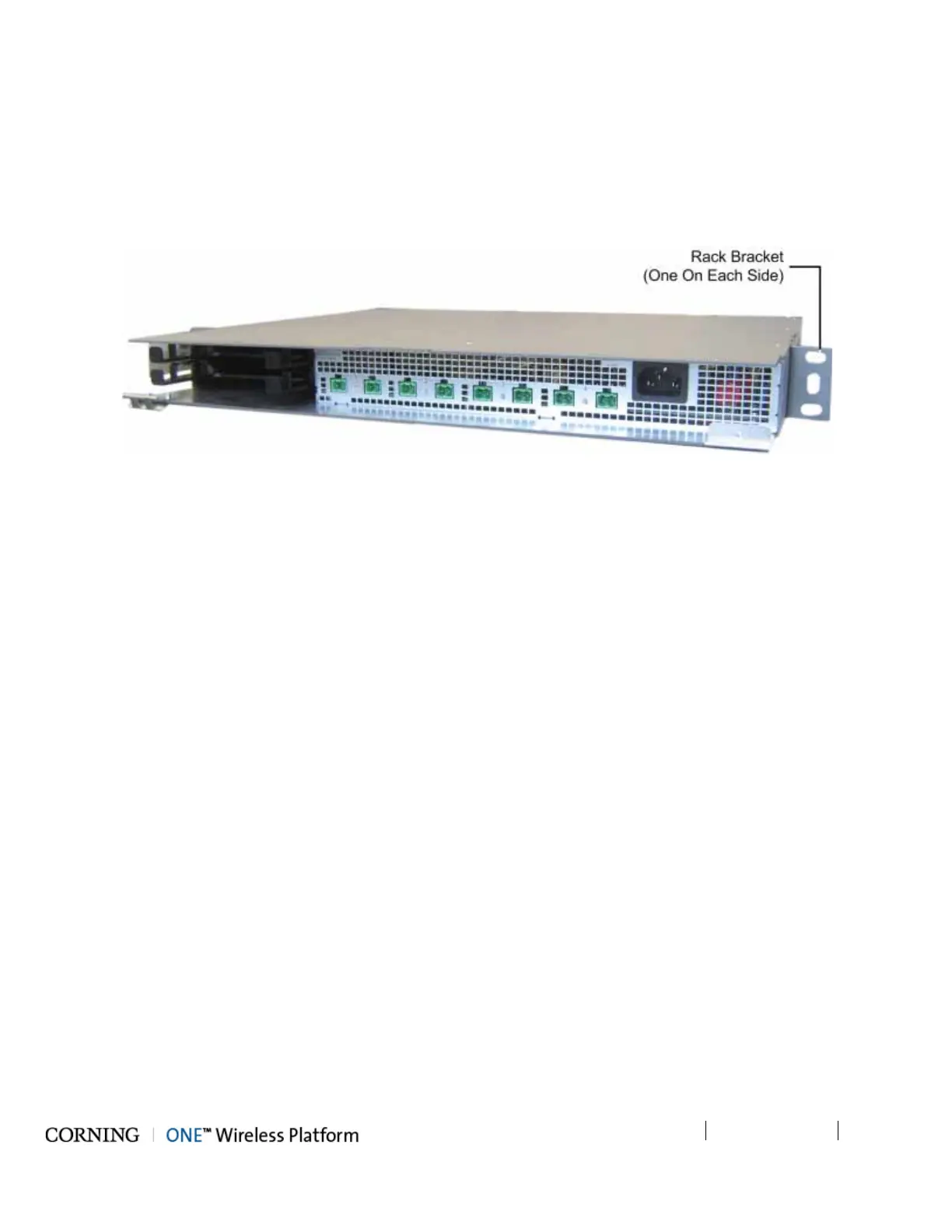

Figure 5-46. ICU Rack Brackets
