Unit Descriptions - RF Path P/N 709C011801 Page 48
2.3.3 RxU (Remote Expansion Unit)
The RxU is an Add-on to the RAU which provides support for MIMO services (i.e. 700MHz LTE, AWS).

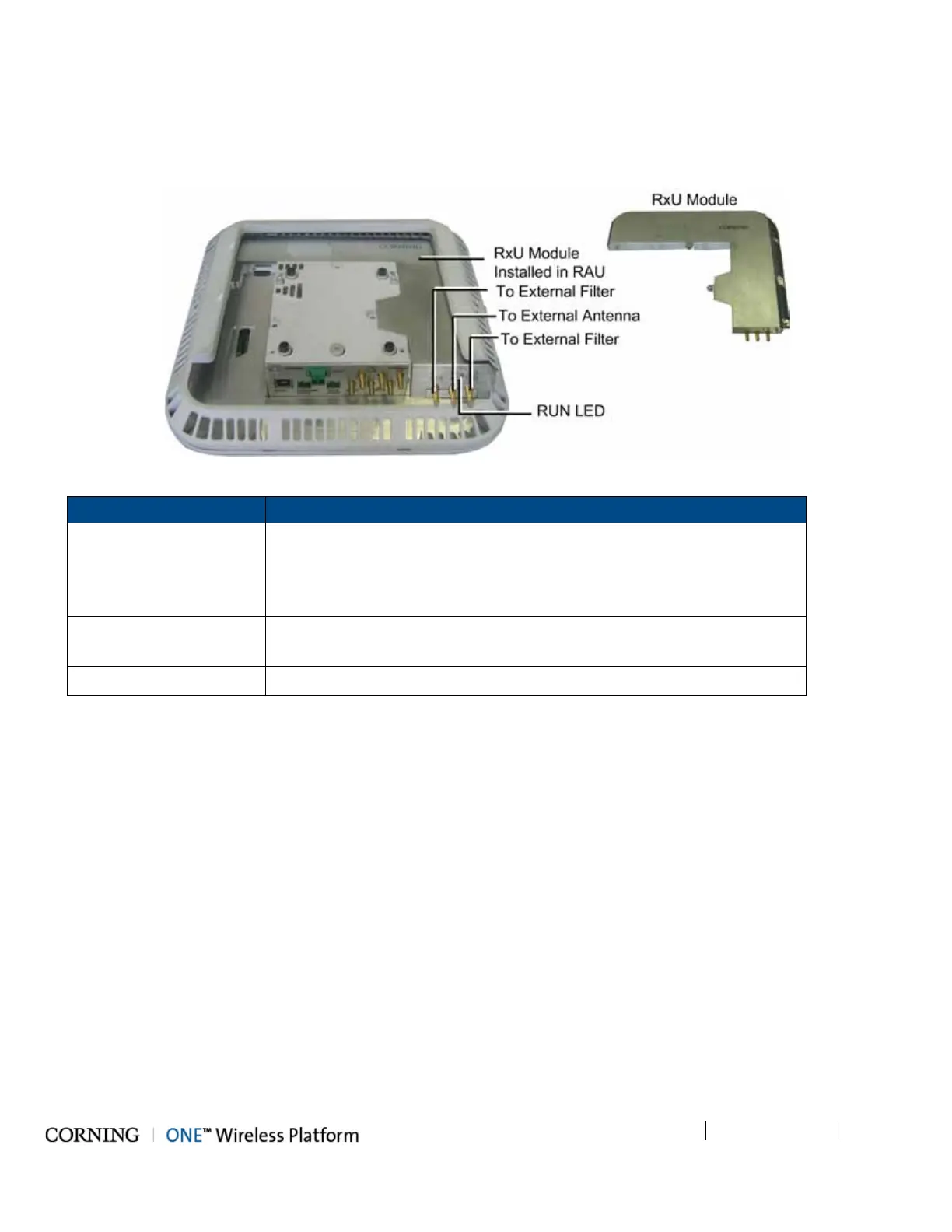

Figure 2-17. RxU Interfaces
Module Description
External Antenna
RF Connection to external antenna, used for above-ceiling installation.
Antenna must have a return loss of 12 dB.
(Both the RxU and the RAU antennas are used since this implements a
MIMO configuration)
External RF Filters
QMA RF ports for external cavity filter use (if required by site planner). For
CELL and LTE filters.
RUN LED Indicates SW is up and running.
Table 2-14. RxU Front Panel Interface Connections
