Unit Descriptions - RF Path P/N 709C011801 Page 47

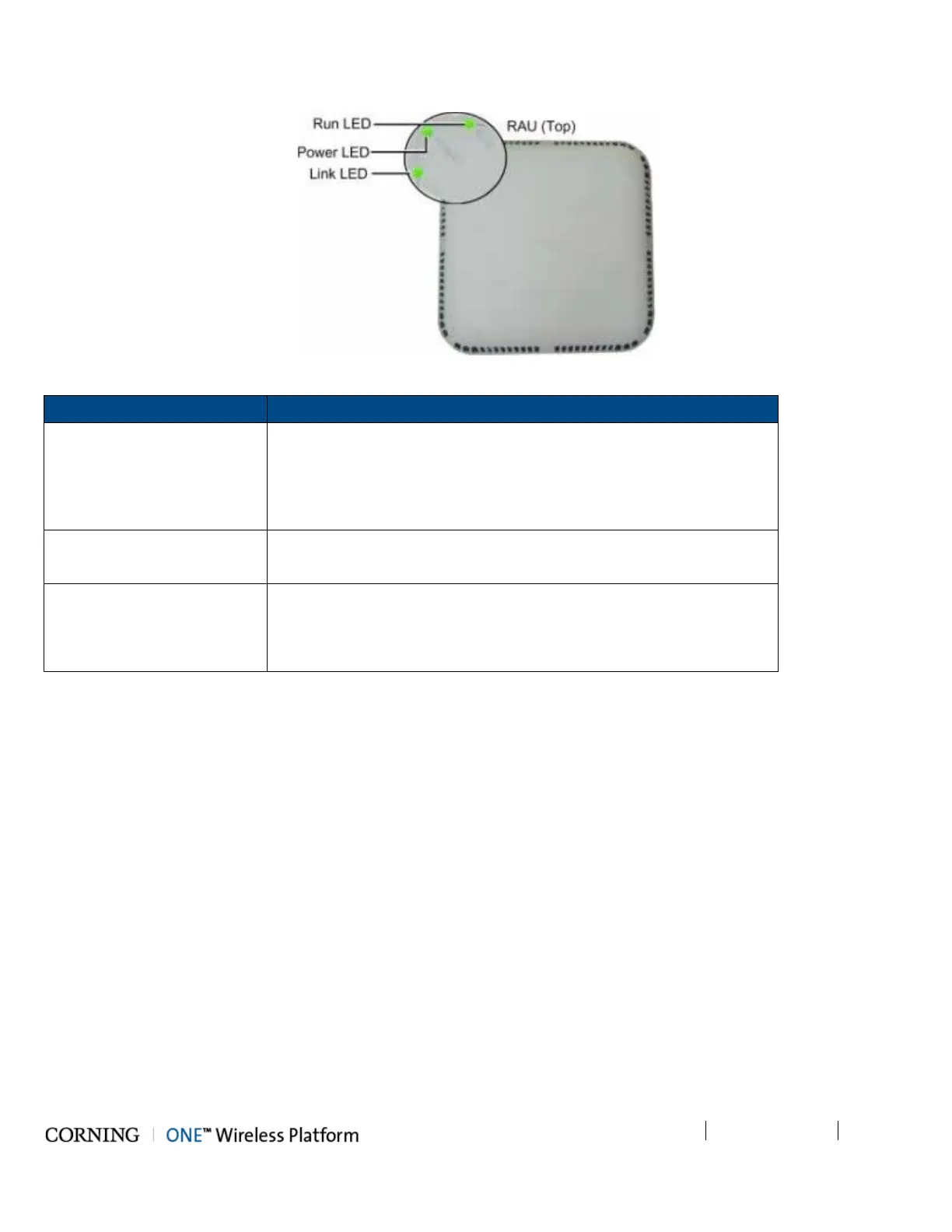

Figure 2-16. RAU LEDs
LED Description
RUN Blinking Green Blinking – RAU Initializing
Steady Green – RAU boot up sequence complete and module SW up an
running
Off – No power supplied to unit
POWER Steady Green - Power input detected by RAU
Off - No power supplied to RAU
LINK Steady Green – Optical link power to/from the RAU is normal
Blinking green – Optical power from remote is lower than required
Off – No optical link is detected
Table 2-13. RAU Status LEDs Description
