CORNING ONE - Routing Connection Cables

Installation – RF Path Elements P/N 709C011801 Page 98
DRAFT
5.2.2.3 Routing Connection Cables
1. Locate the following connection cables:
• DC wiring:
o One pair for MAIN POWER connection
o One pair for SECONDARY POWER connection (for RAU models including GEM module)
• Fiber pairs:
o One fiber pair for RAU module
o One fiber pair for GEM module (for RAU models including GEM)
• Grounding wire
2. Route the connection cables through center of the Mounting Bracket. See Figure 5-50.

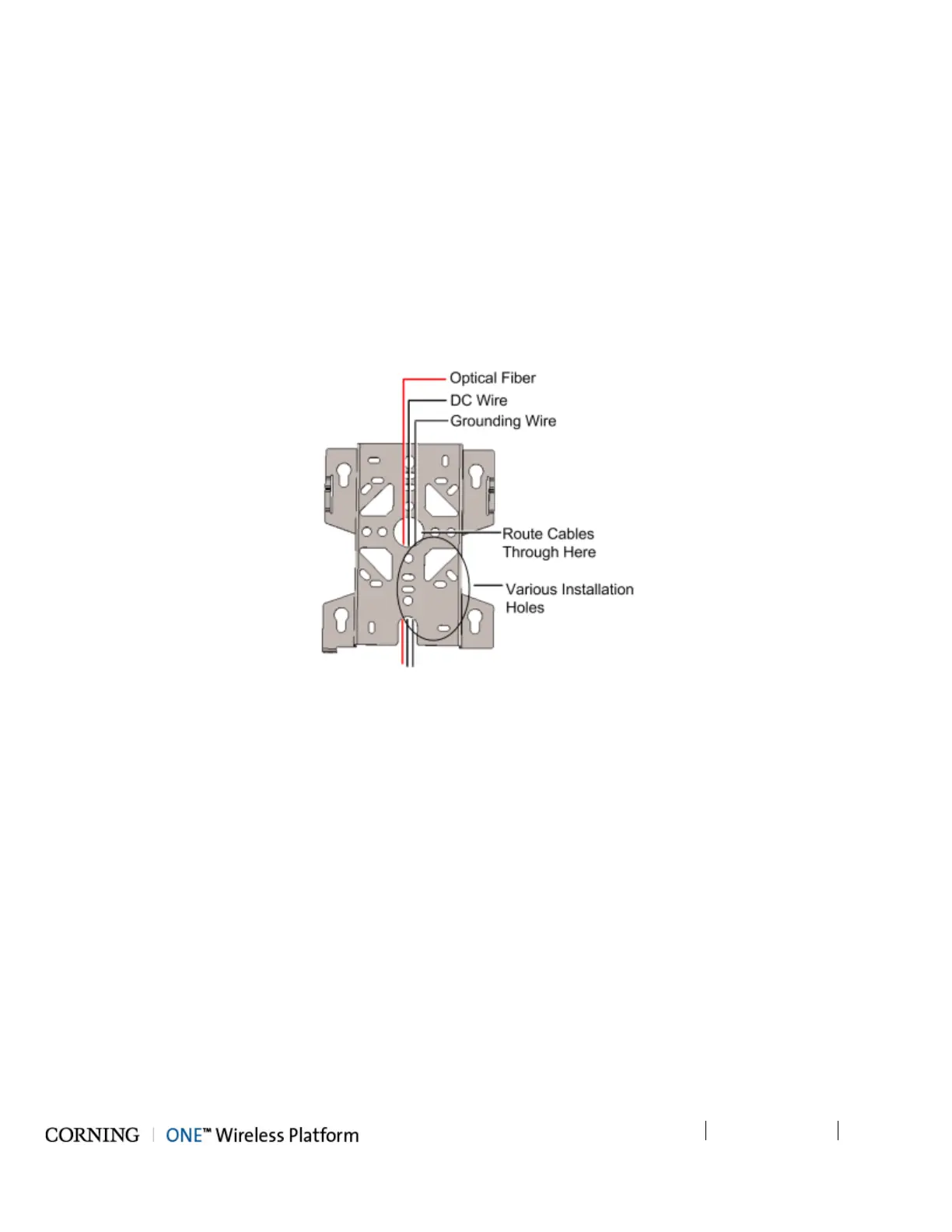

Figure 5-50. Routing Connection Cables through Bracket
