CORNING ONE - RAU Installation; General Information; Package Contents

Installation – RF Path Elements P/N 709C011801 Page 97
DRAFT
5.2.2 RAU Installation
5.2.2.1 General Information
• The RAU modules are deployed on the floor level and interface to the RF antennas.
• The RAU can be provided in a number of configurations:
• RAU (without RxU and GEM)
• RAU + RxU
• RAU + GEM
• RAU + RxU + GEM
Note: Existing RAU units can be upgraded with RxU (for MIMO support) and/or GEM modules (for Ethernet services) – see
Appendix A for instructions on how to upgrade the RAU with these modules.
• The RAU supports various mounting installation options:
• Wall
• Ceiling/acoustic ceiling
Note: If the RAU is installed below or mid-mount an acoustic ceiling, a support bar (T-Bar) is required (not included).
Acoustical ceiling grid work is not designed to support the weight of the enclosure.
• Required ambient temperature:
• Wall-mount installations (vertical): 45
◦
C [113
◦
F]
• Ceiling-mount installations (horizontal): 50
◦
C [122
◦
F]
• RAU weight:
• RAU Alone: 7.93 (3.6 kg)
• RAU + RxU + GEM: 12.12 lbs (5.5 kg)
• RAU optic fiber connections and DC power are provided via a Corning Composite cable (ordered separately).
• External cavity filters are required for installations in which RAU/RXU modules supporting the corresponding CELL and LTE
bands are deployed alongside units supporting the public safety service. See section 5.2.3.

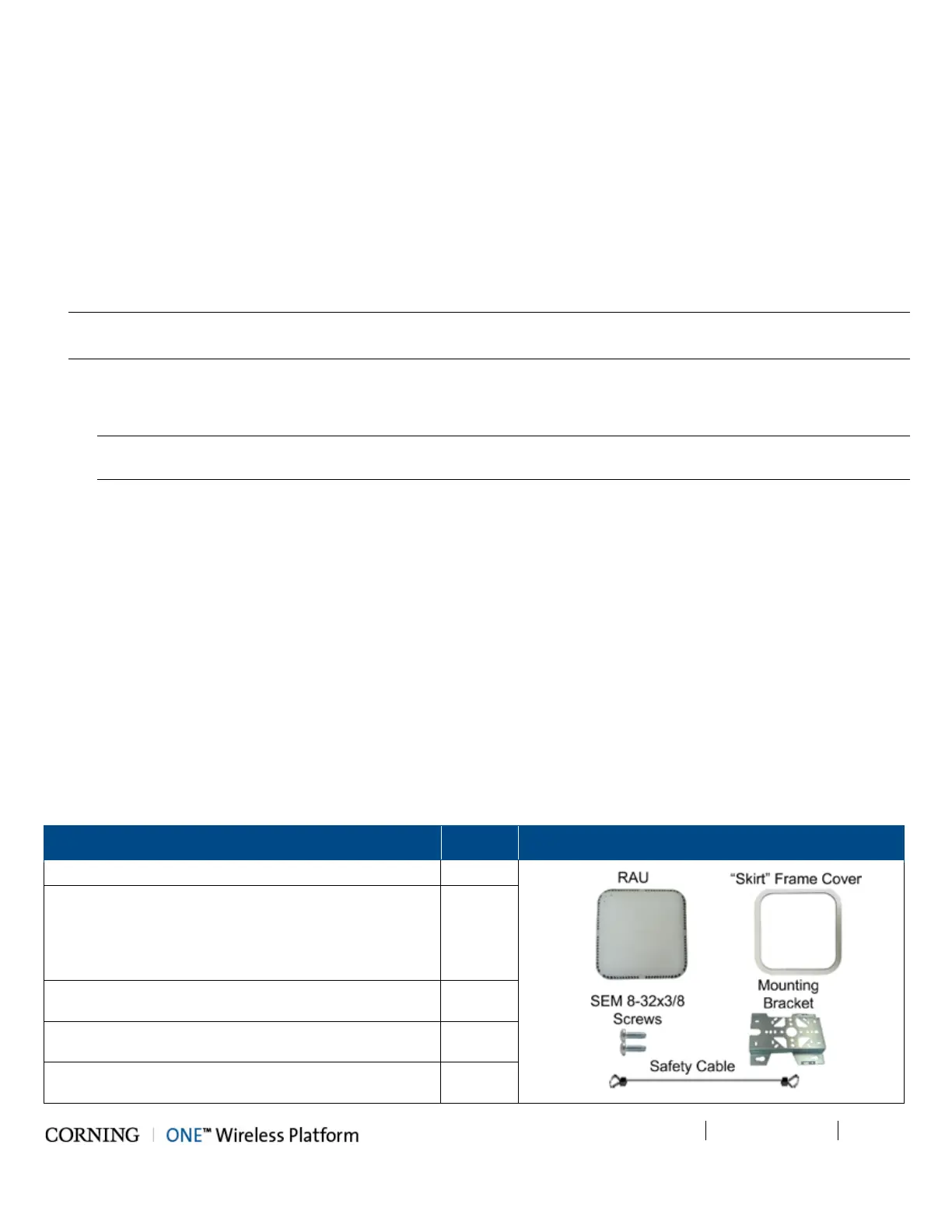

5.2.2.2 Package Contents
Check your package contents to verify that the items in the packing list are included. If any of the listed items are missing,
contact your Corning representative.
Item Quantity Image
Remote Antenna Unit (RAU)
1
Mounting Bracket (factory assembled on RAU
underside)
Note: Mounting Bracket includes holes in various sizes
and locations for flexible installation options. Mounting
screws not provided.
1
Screw, SEM 8-32X3/8 , Pan Head, Philips - used for
grounding and to secure bracket to RAU
2
“Skirt” Frame Cover – used for acoustic ceiling cut-out
template and for aesthetic installation
1
Safety Cable – used to secure RAU to permanent
structure in acoustic ceiling installations
1
