CORNING ONE - Digital Coverage Component Specifications; Centralized Ethernet Unit (CEU)

Appendix B: Specifications P/N 709C011801 Page 143
DRAFT

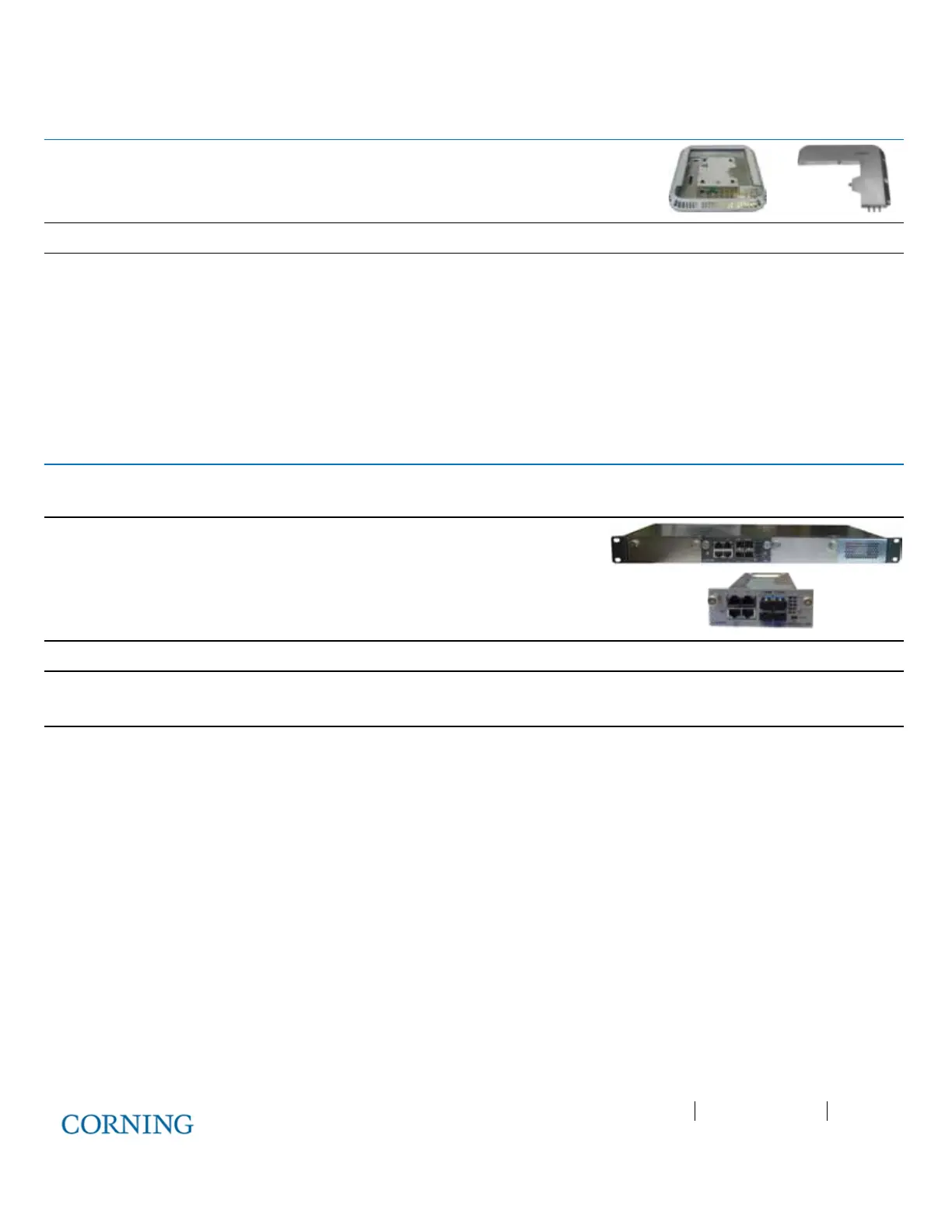

Remote Expansion Unit (RxU)
Services
Upgrade module supporting two services
AWS MIMO and LTE 700 MIMO
Interfaces
Three pins for integration with RAU (power, control and RF)
Management
Management via host RAU
Physical Characteristics
Mounting: Installed in the RAU enclosure
Dimensions
(H x W x D):
1.09 x 12.8 x 9.8 in
(27.7 x 327.5 x 250 mm)
Weight: 3.08 lbs (1.4 kg)
Digital Coverage Component Specifications
Centralized Ethernet Unit (CEU)
CEU will host the following module:
Three CEMs; Centralized Ethernet Module; media and rate converter, Ethernet (copper) to fiber.
Interfaces
CEM supports four 10/100/1000BASE-T RJ-45 connectors
to four LC UPC fiber connectors
Four 10/100/1000BASE-T Copper ports
Four 1000BASE-X fiber SFP
Throughput
Eight Gbps forwarding per CEM
Power
Input: 110-240 V AC, 50-60 Hz power
Power Consumption (fully occupied): 50 W
Physical
Characteristics
Mounting: Rack-mount 19 in; 1U
Dimensions
(H x W x D):
CEU:
1.71 x 17/19 (with mounting ears x 8.5 in
(43.66 x 431.8 / 482.8 with mounting ears x 216 mm)
CEM
Module:
1.41 x 3.94 x 7.68 in
(36 x 100.14 x 195.14 mm)
Weight:
CEU: 7.55 lb (3.4 kg)
CEM
Module:
1.44 lb (0.65 kg)
