5.1.3.6 RF Connections to HEU
RF connections between the OIU and HEU are performed using the ERFC cable (included in HEU order) and are described in
section 5.1.2.6 - RIX to OIX Connections. See Figure 5-31 for general view of connections.

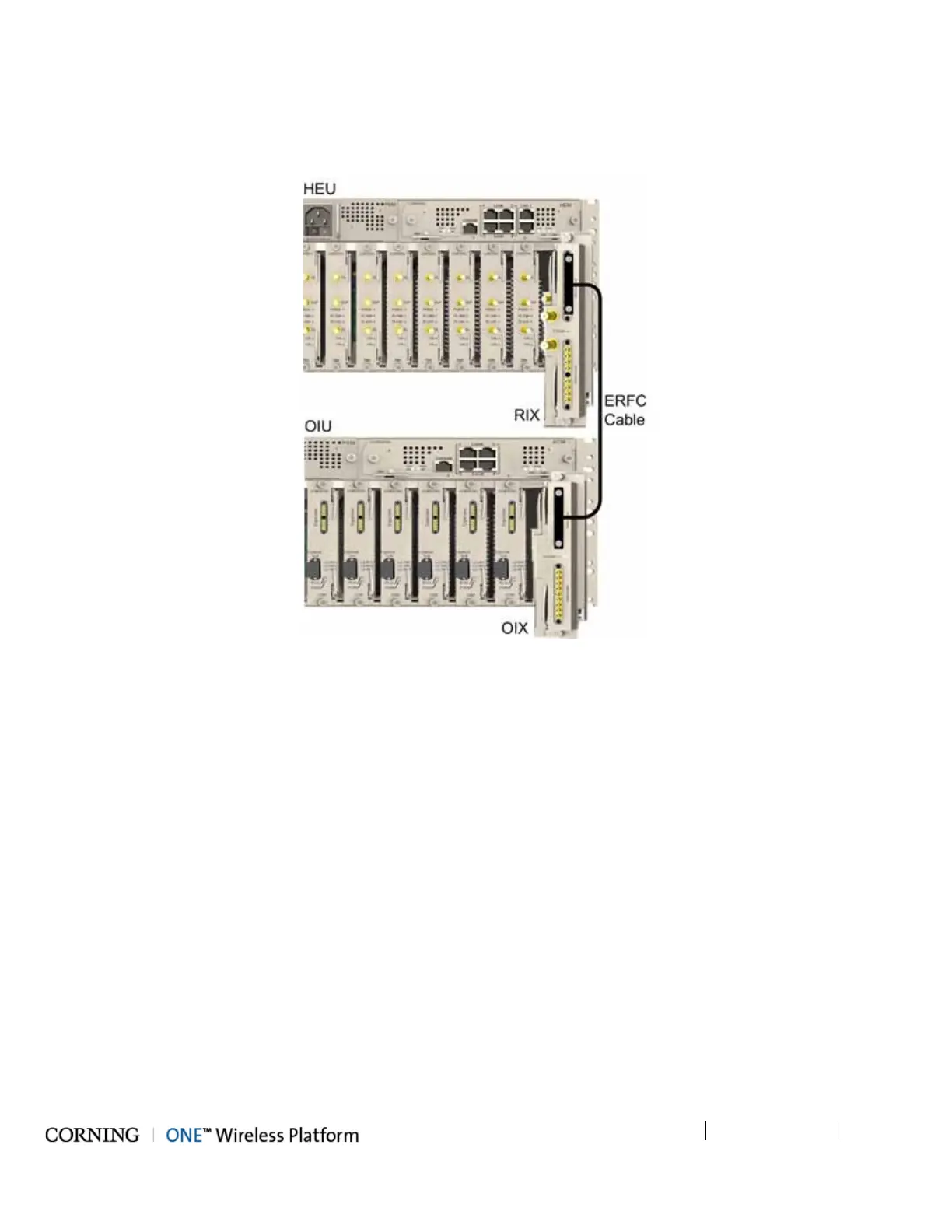

Figure 5-31. OIX to RIX RF Connection
