Installation – RF Path Elements P/N 709C011801 Page 64
DRAFT
RIX Module Kit (1 or 2 according to order)
Quantity
Item
Radio Expander Module – expands the RF sources to the OIU 1
Item
Pilot Transport Cable (P/N: PCKC47*) – Single QMA to QMA cable;
L = 47 in; used for passing reference clock signal connections
between RIX modules.
*Additional lengths can be ordered:
• PCKC20: L=20 in
• PCKC63: L=63 in
• PCKC79: L=79 in
1
ERFC Cable Kit (according to order)
Quantity
Item
ERFC (Expander Cable) - RF interface cable to HEU; 9 pin SMP to
SMP connector
Available in five different lengths:
• ERFC16: L= 16 in
• ERFC24: L= 24 in
• ERFC34: L= 34 in
• ERFC40: L= 40 in
• ERFC59: L= 59 in
1
ETM Kit (according to order)
Quantity
Item
ETM Expander Termination Module (for unoccupied Expander slot) 1
PSM Kit (AC or DC modules - 1 or 2 kits according to order)
Quantity
Item
PSM-AC: 100-240 VAC Power Supply Module including s
tandard
IEC 60320-1 C13 cable
1
PSM-DC: 48 V DC Power Supply Module; 9 A Max.; six pin DC input
terminal block connector
; includes six terminal rings used for
crimping onto the DC wires
1
Controller Module Kit (HCM or ACM - according to order)
Quantity
Item
HCM Kit (Headend Control Module) –
installed in Main HEU unit;
enables remote/local management of all hosted units
1
ACM Kit (Auxiliary Control Module) – installed in Auxiliary HEU units;
provides management connections for the Auxiliary HEU.
1

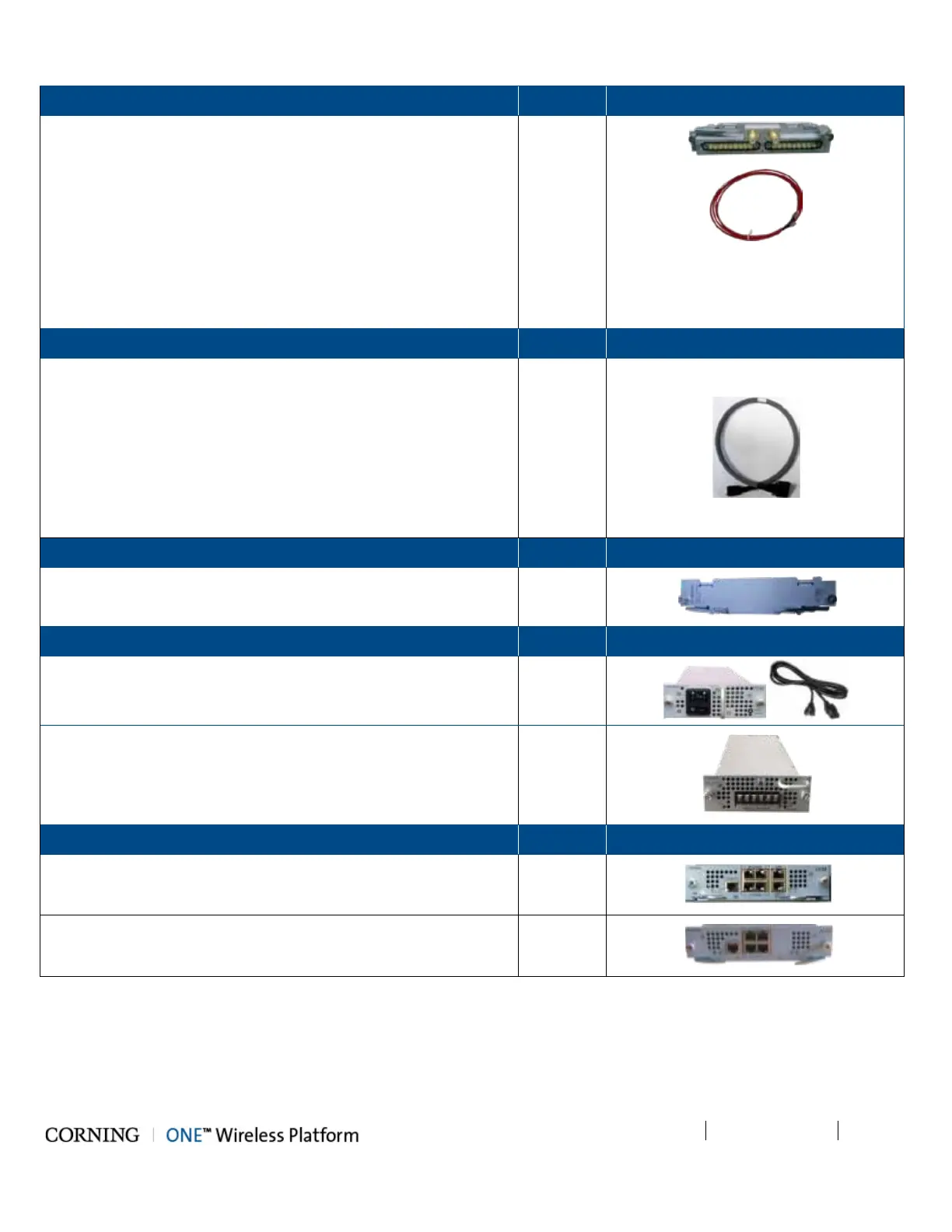

Table 5-1. Items Required for HEU Installation
