Parameter Description
Area ID
Enter a 32-bit number in the form of an IPv4 address that uniquely identifies the
OSPFv3 area in the OSPFv3 domain.
Priority (0-255)
Enter the priority used in the election of the Designated Router (DR). It is a number
between 0 and 255. Its default value is 1.
Hello Interval (1-65535)
Enter the interval time between the transmissions of OSPFv3 Hello packets, in
seconds. The Hello Interval and Dead Interval should be the same for all routers on
the same link. The default value is 10.
Dead Interval (1-65535)
Enter the interval time between the receipts of Hello packets from a neighbor router
before the selected area declares that router down. The Dead Interval must be
evenly divisible by the Hello Interval.
Enter the instance ID of the interface. The default value is 0.
Metric (1-65535)
Enter the field that allows the entry of a number between 1 and 65535 that is the
representative of the OSPFv3 cost of reaching the selected OSPFv3 interface. The
Administrative State
Use the drop-down menu to enable or disable this interface to run OSPFv3. The
default value is Disabled.
Passive Mode
Assign the designated entry to be a passive interface. A passive interface will not
advertise to any other routers than those within its OSPFv3 intranet.
Click the Apply button to accept the changes made.
Click the <<Back button to return to the previous window.
OSPFv3 Virtual Interface Settings
This window is used to configure the OSPFv3 virtual interface settings.
To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 Virtual Interface Settings, as
shown below:

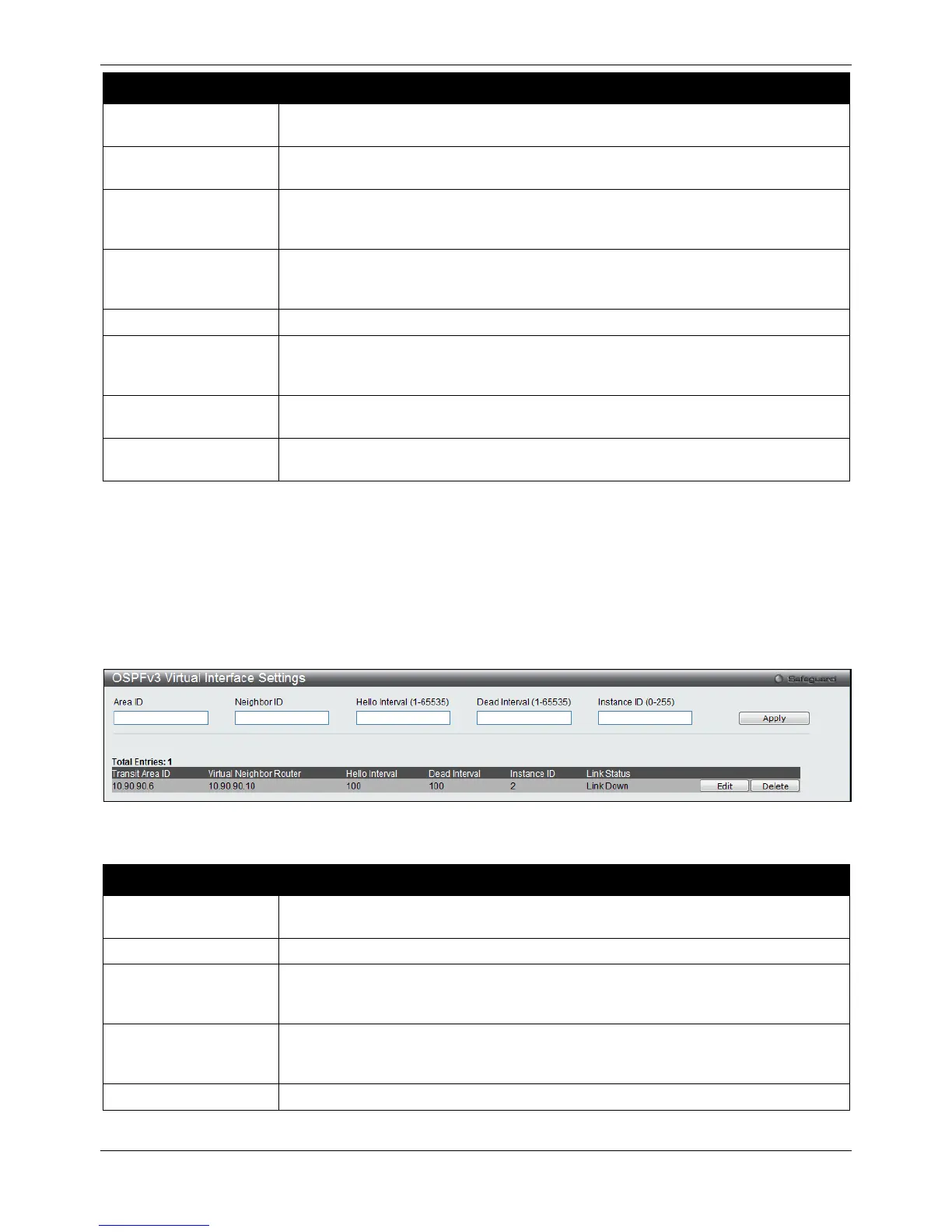

Figure 5-63 OSPFv3 Virtual Interface Settings window
The fields that can be configured are described below:
Parameter Description
Area ID
Enter a 32-bit number in the form of an IPv4 address that uniquely identifies the
OSPFv3 area in the OSPFv3 domain.
The OSPFv3 router ID for the remote router.
Hello Interval (1-65535)
Enter the interval time between the transmissions of OSPFv3 Hello packets, in
seconds. The Hello Interval and Dead Interval should be the same for all routers on
the same link. The default value is 10.
Dead Interval (1-65535)
Enter the interval time between the receipts of Hello packets from a neighbor router
before the selected area declares that router down. The Dead Interval must be
evenly divisible by the Hello Interval.
Enter the instance ID of the interface. The default value is 0.
Click the Apply button to accept the changes made.
