D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
207

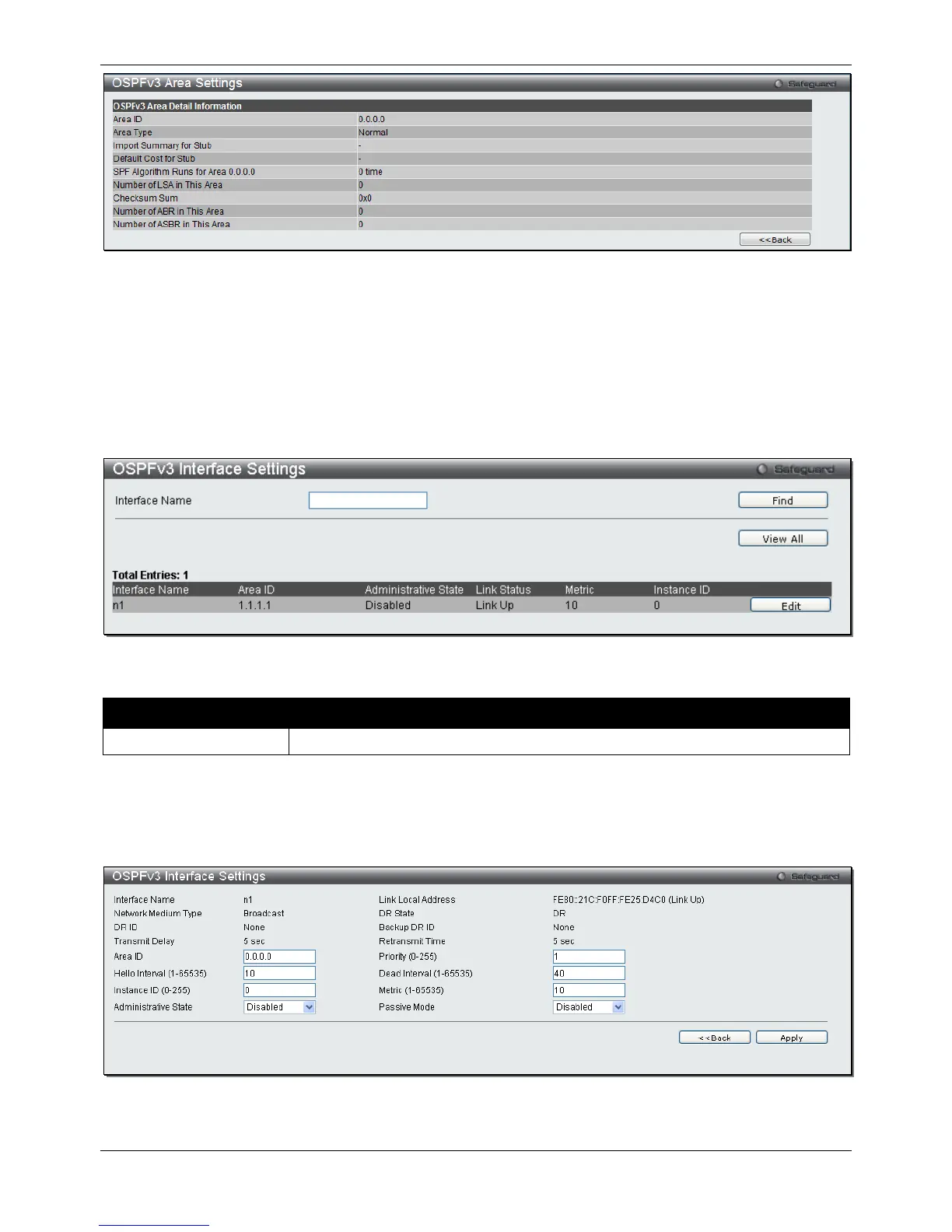

Figure 5-60 OSPFv3 Area Settings - View Detail window
Click the <<Back button to return to the previous window.
OSPFv3 Interface Settings
This window is used to display the OSPFv3 configurations or OSPFv3 interfaces information.
To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 Interface Settings, as shown
below:
Figure 5-61 OSPFv3 Interface Settings window
The fields that can be configured are described below:
Parameter Description
Interface Name
Enter the OSPFv3 IP interface name.
Click the Find button to find the interface entered.
Click the View All button to display all the existing entries.
Click the Edit button to re-configure the selected entry.
After clicking the Edit button, the following window will appear.
Figure 5-62 OSPFv3 Interface Settings - Edit window
The fields that can be configured are described below:

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
