Click the Edit button to re-configure the selected entry.
Click the Delete button to remove the selected entry.
OSPFv3 LSDB Table
This window is used to display the OSPFv3 Link State Database (LSDB).
To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 LSDB Table, as shown below:

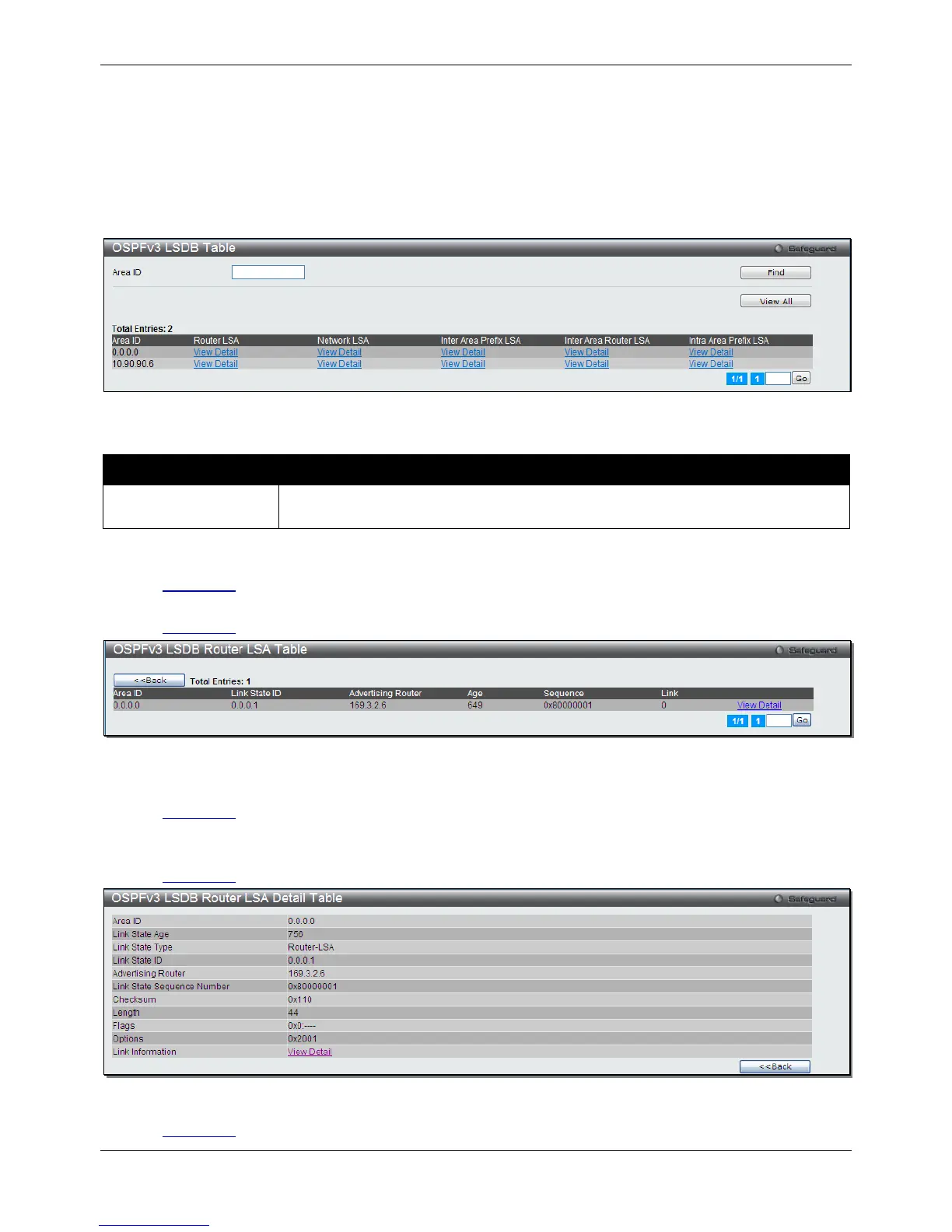

Figure 5-66 OSPFv3 LSDB Table window
The fields that can be configured are described below:
Parameter Description
Area ID
Enter a 32-bit number in the form of an IP address (xxx.xxx.xxx.xxx) that uniquely
identifies the OSPFv3 area in the OSPFv3 domain.
Click the Find button to find the specified entry.
Click the View All button to view all the OSPFv3 Link State Database entries.
Click the View Detail link to under the specific column to view the details of the specific entry.
Click the View Detail link under Router LSA in the OSPFv3 LSDB Table window, the following window will appear.
Figure 5-67 OSPFv3 LSDB Router LSA Table window
Click the <<Back button to return to the previous window.
Click the View Detail link to under the specific column to view the details of the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Click the View Detail link to see the following window.
Figure 5-68 OSPFv3 LSDB Router LSA Detail Table window
Click the View Detail link to under the Link Information to more information.
