D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
214
Click the <<Back button to return to the previous window.

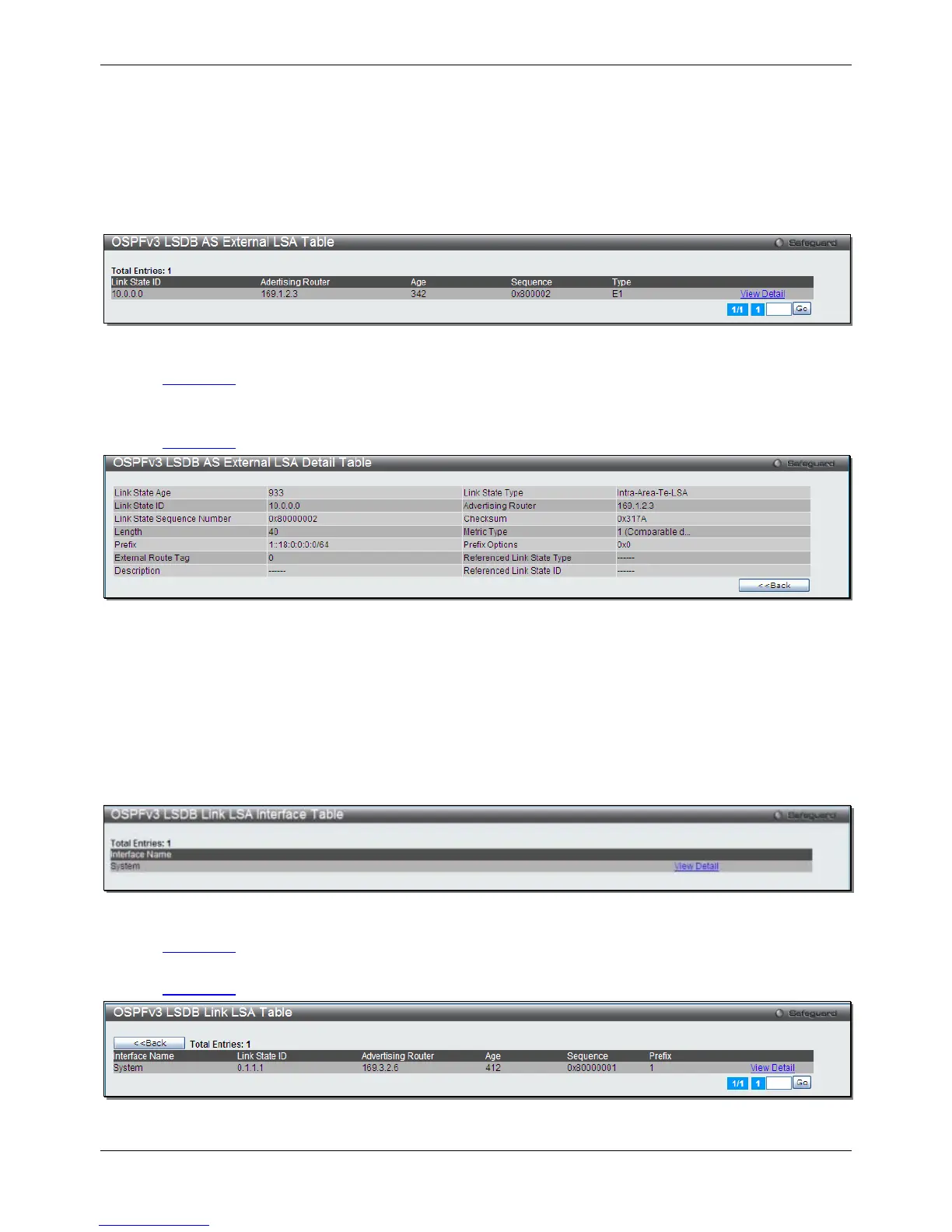

OSPFv3 LSDB AS External LSA Table
This window displays OSPFv3 LSDB AS External LSA information.
To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 LSDB AS External LSA Table, as
shown below:
Figure 5-80 OSPFv3 LSDB AS External LSA Table window
Click the View Detail link to view more information regarding the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Click the View Detail link to see the following window.
Figure 5-81 OSPFv3 LSDB AS External LSA Detail Table window
Click the <<Back button to return to the previous window.
OSPFv3 LSDB Link LSA Interface Table
This window displays OSPFv3 LSDB Link LSA interface information.
To view the following window, click L3 Features > OSPF > OSPFv3 > OSPFv3 LSDB Link LSA Interface Table,
as shown below:
Figure 5-82 OSPFv3 LSDB Link LSA Interface Table window
Click the View Detail link to view more information regarding the specific entry.
Click the View Detail link to see the following window.
Figure 5-83 OSPFv3 LSDB Link LSA Table window

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
