xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
213
Click the View Detail link to see the following window.

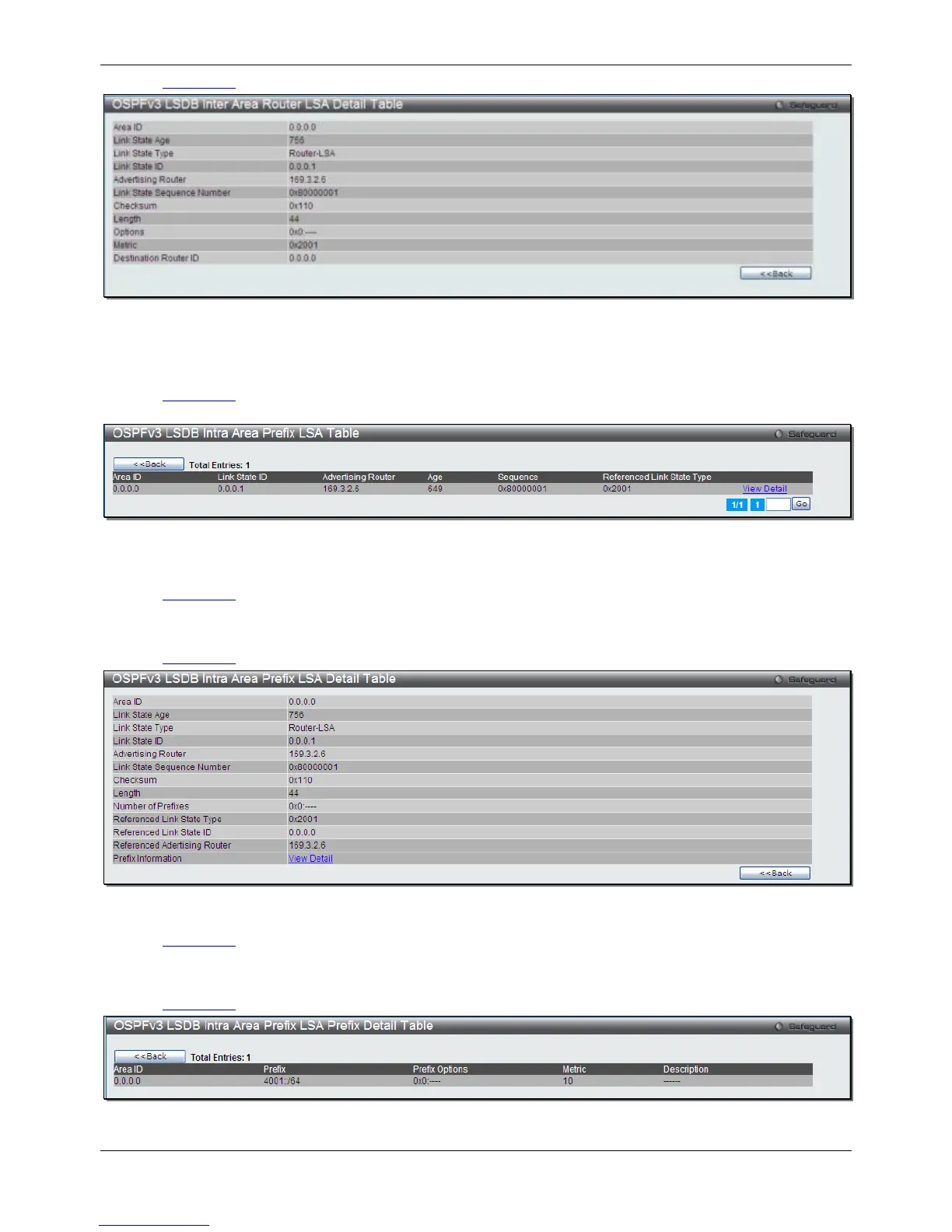

Figure 5-76 OSPFv3 LSDB Inter Area Router LSA Detail Table window
Click the <<Back button to return to the previous window.
Click the View Detail link under Intra Area Prefix LSA in the OSPFv3 LSDB Table window, the following window will
appear.
Figure 5-77 OSPFv3 LSDB Intra Area Prefix LSA Table window
Click the <<Back button to return to the previous window.
Click the View Detail link to under the specific column to view the details of the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Click the View Detail link to see the following window.
Figure 5-78 OSPFv3 LSDB Intra Area Prefix LSA Detail Table window
Click the View Detail link to under the Prefix Information to more information.
Click the <<Back button to return to the previous window.
Click the View Detail link under Prefix Information, the following window will appear.
Figure 5-79 OSPFv3 LSDB Intra Area Prefix LSA Prefix Detail Table window
