D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
212

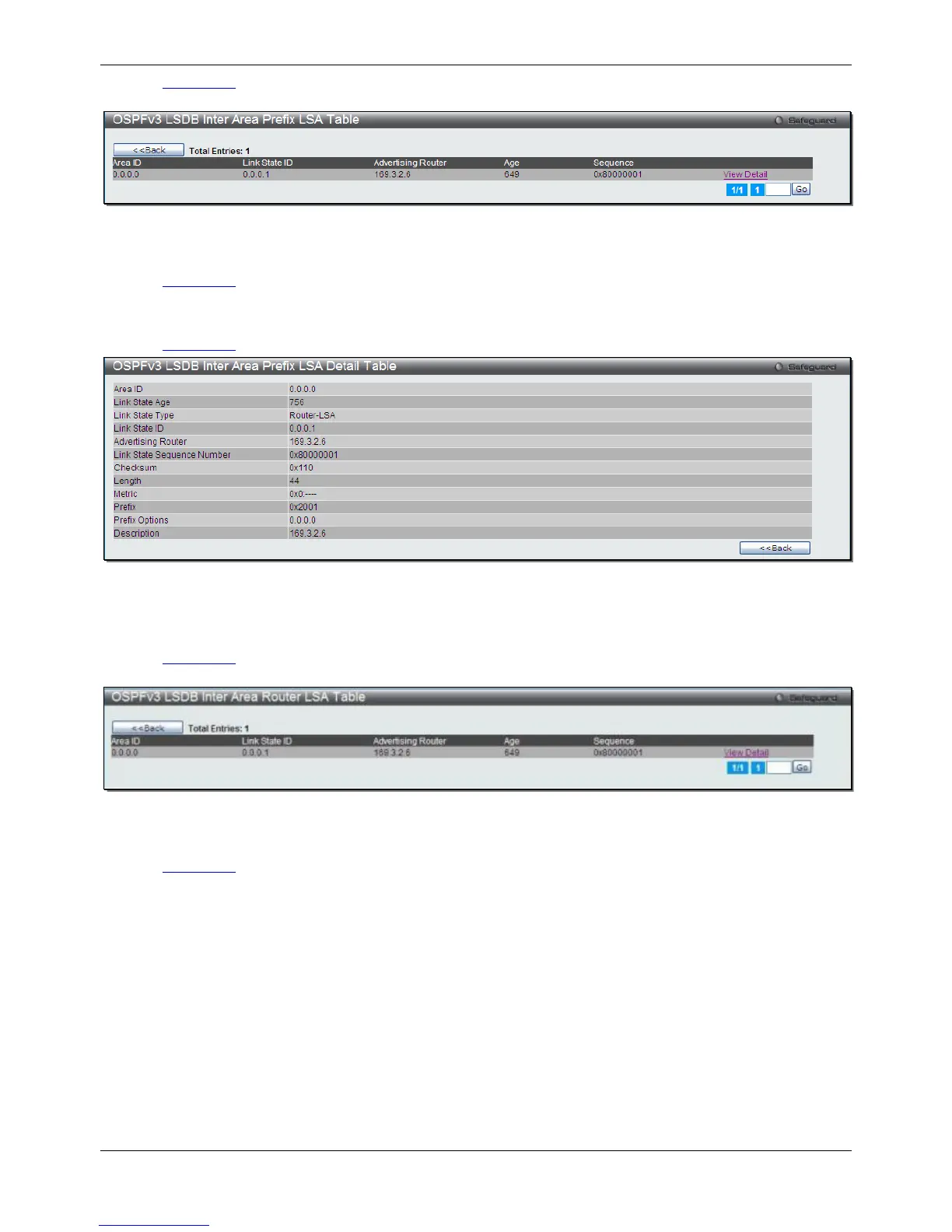

Click the View Detail link under Inter Area Prefix LSA in the OSPFv3 LSDB Table window, the following window will
appear.
Figure 5-73 OSPFv3 LSDB Inter Area Prefix LSA Table window
Click the <<Back button to return to the previous window.
Click the View Detail link to under the specific column to view the details of the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Click the View Detail link to see the following window.
Figure 5-74 OSPFv3 LSDB Inter Area Prefix LSA Detail Table window
Click the <<Back button to return to the previous window.
Click the View Detail link under Inter Area Router LSA in the OSPFv3 LSDB Table window, the following window
will appear.
Figure 5-75 OSPFv3 LSDB Inter Area Router LSA Table window
Click the <<Back button to return to the previous window.
Click the View Detail link to under the specific column to view the details of the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
