D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
243

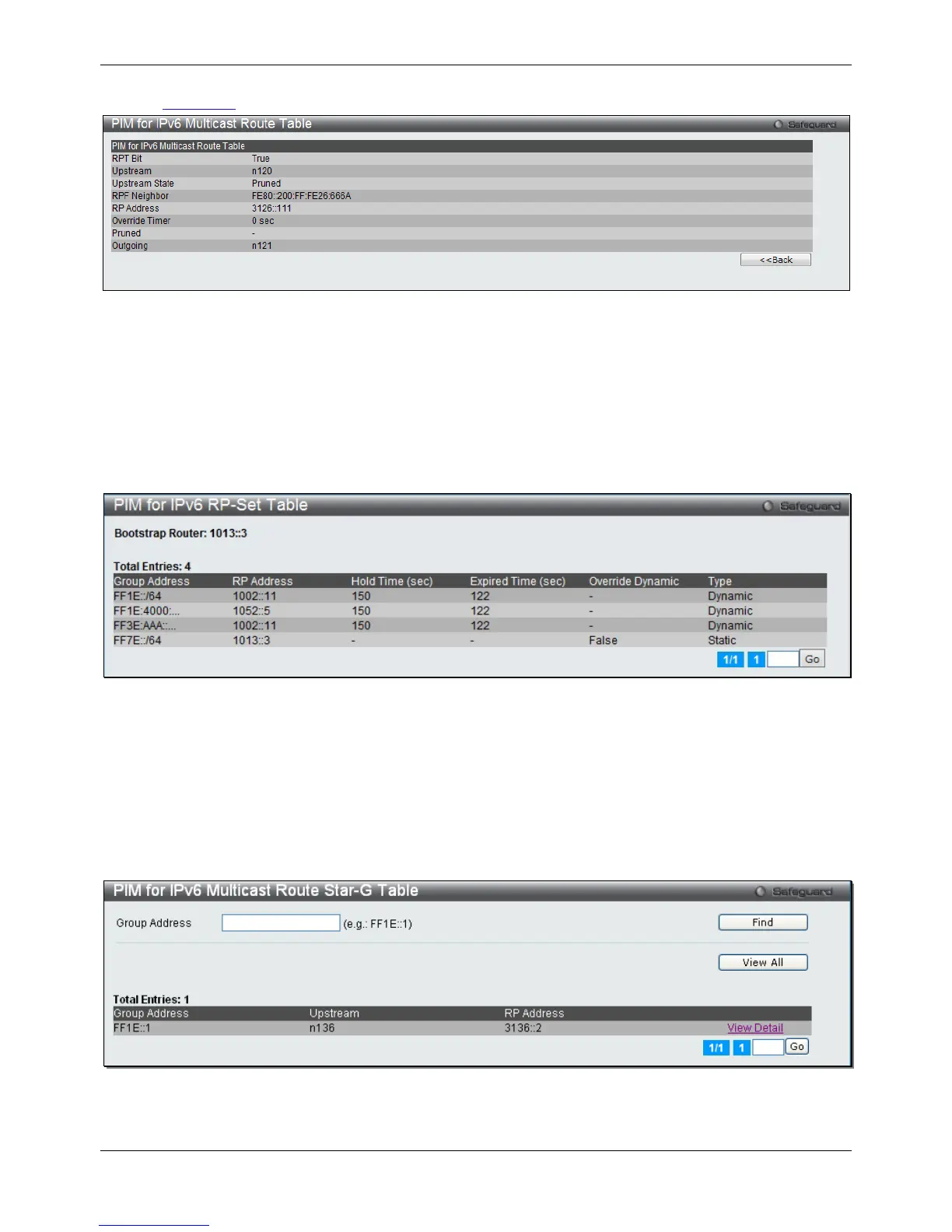

Click the View Detail link of the (S, G, RPT) entry to see the following window.
Figure 5-128 PIM for IPv6 Multicast Route Table - View Detail window
Click the <<Back button to return to the previous window.
PIM for IPv6 RP-Set Table
This window is used to list the entire active RP information.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv6 > PIM for
IPv6 RP-Set Table, as shown below:
Figure 5-129 PIM for IPv6 RP-Set Table window
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
PIM for IPv6 Multicast Route Star-G Table
This window is used to display the multicast routing information for (*, G) entries generated by PIM for IPv6.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv6 > PIM for
IPv6 Multicast Route Star-G Table, as shown below:
Figure 5-130 PIM for IPv6 Multicast Route Star-G Table window
The fields that can be configured are described below:

D-Link xStack DGS-3120 Series Specifications

General

MAC Address Table	16K entries
Ports	10/100/1000BASE-T ports
VLANs	4094
Jumbo Frame	Up to 9KB
Power Supply	Internal power supply (depending on model)
Power over Ethernet (PoE)	No
Layer 3 Features	RIP
Quality of Service (QoS)	8 queues per port, DiffServ
Security Features	ACLs
Management	Web-based, CLI, SNMP
Operating Temperature	0°C to 40°C
Storage Temperature	-40°C to 70°C
SFP Ports	Combo 10/100/1000BASE-T/SFP ports and/or dedicated SFP/SFP+ ports (depending on model)
