Click the <<Back button to return to the previous window.
PIM for IPv6 Multicast Route S-G Table
This window is used to display the multicast routing information for (S, G) or (S, G, rpt) entries generated by PIM for
IPv6.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv6 > PIM for
IPv6 Multicast Route S-G Table, as shown below:

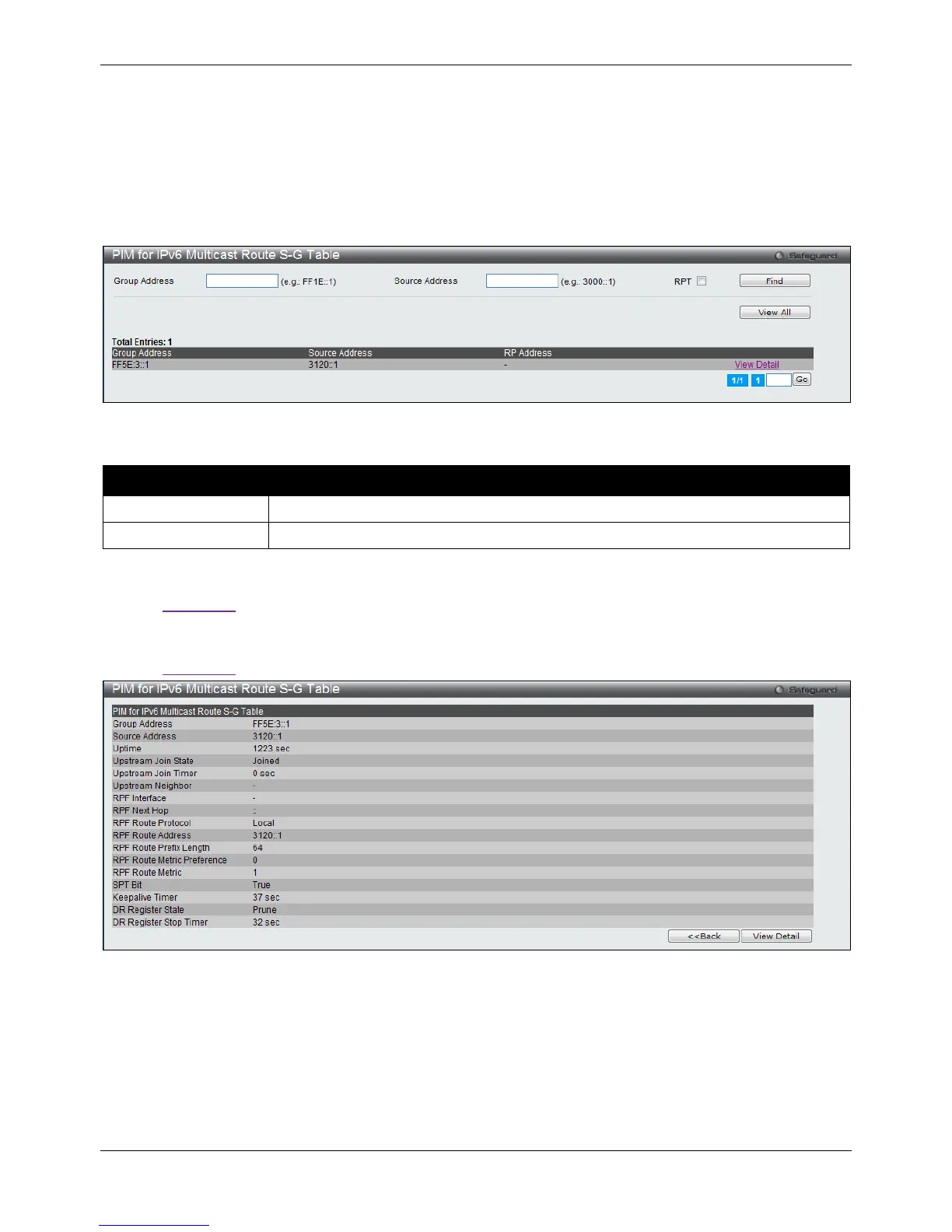

Figure 5-133 PIM for IPv6 Multicast Route S-G Table window
The fields that can be configured are described below:
Parameter Description
Group Address
Enter the IPv6 multicast group address.
Source Address
Enter the source IPv6 interface.
Click the Find button to find the group address, source address or RPT option entered.
Click the View All button to view all (S, G) or (S, G, rpt) entries on this switch.
Click the View Detail link to view more information regarding the specific entry.
Enter a page number and click the Go button to navigate to a specific page when multiple pages exist.
Click the View Detail link to see the following window.
Figure 5-134 PIM for IPv6 Multicast Route S-G Table- View Detail window
Click the <<Back button to return to the previous window.
Click the View Detail button to display the information of the specific entry.
Click the View Detail button to see the following window.
