D-Link xStack DGS-3120 Series Reference Guide

xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
246

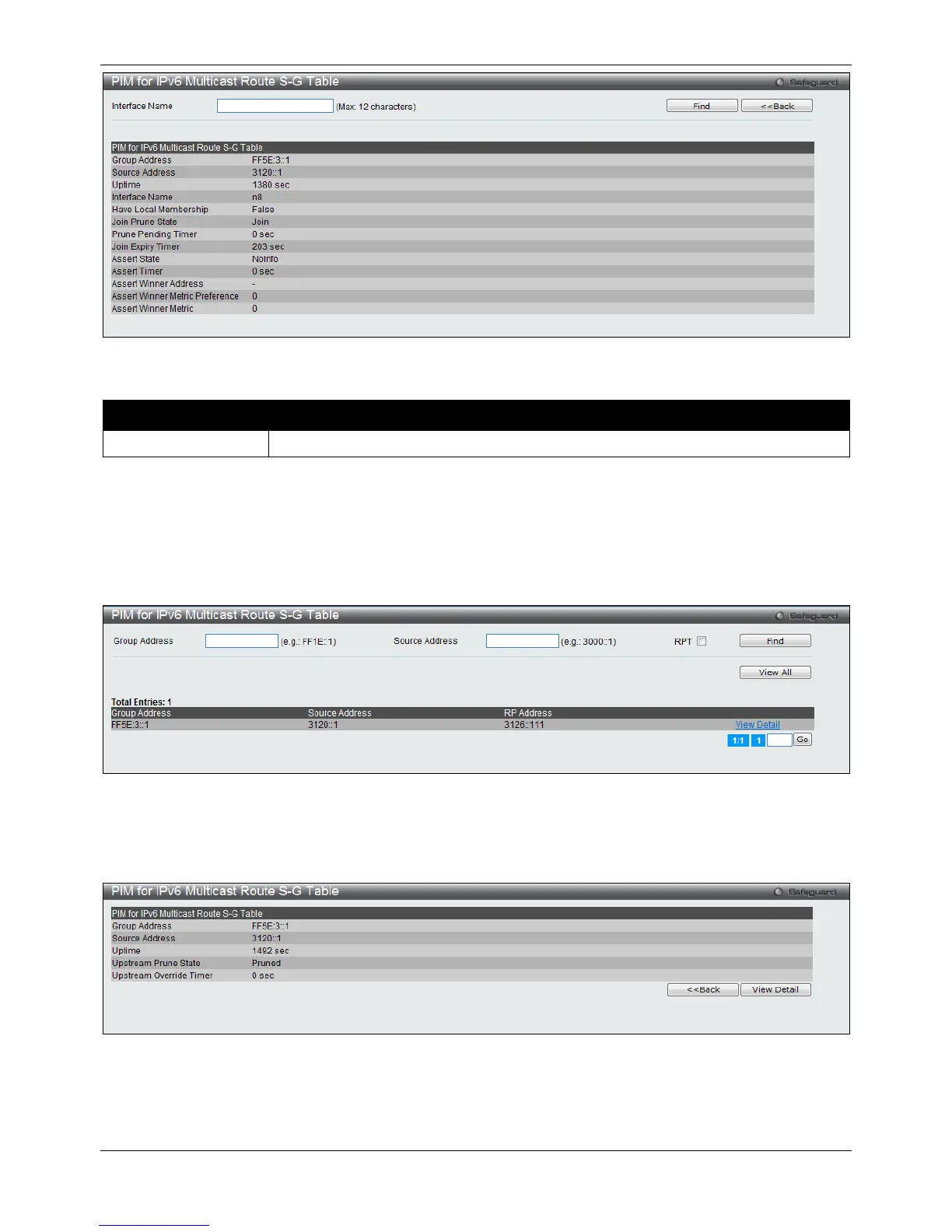

Figure 5-135 PIM for IPv6 Multicast Route S-G Table- View Detail window
The fields that can be configured are described below:
Parameter Description
Interface Name
Enter the IPv6 interface name.
Click the Find button to find the interface entered.
Click the <<Back button to return to the previous window.
To view the following window, click L3 Features > IP Multicast Routing Protocol > PIM > PIM for IPv6 > PIM for
IPv6 Multicast Route S-G Table, select RPT, click find button, as shown below:
Figure 5-136 PIM for IPv6 Multicast Route S-G RPT Table window
Click the View Detail button to display the information of the specific entry.
Click the View Detail button to see the following window.
Figure 5-137 PIM for IPv6 Multicast Route S-G RPT Table – View Detail window
Click the View Detail button to display the information of the specific entry.
Click the View Detail button to see the following window.
