xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
280

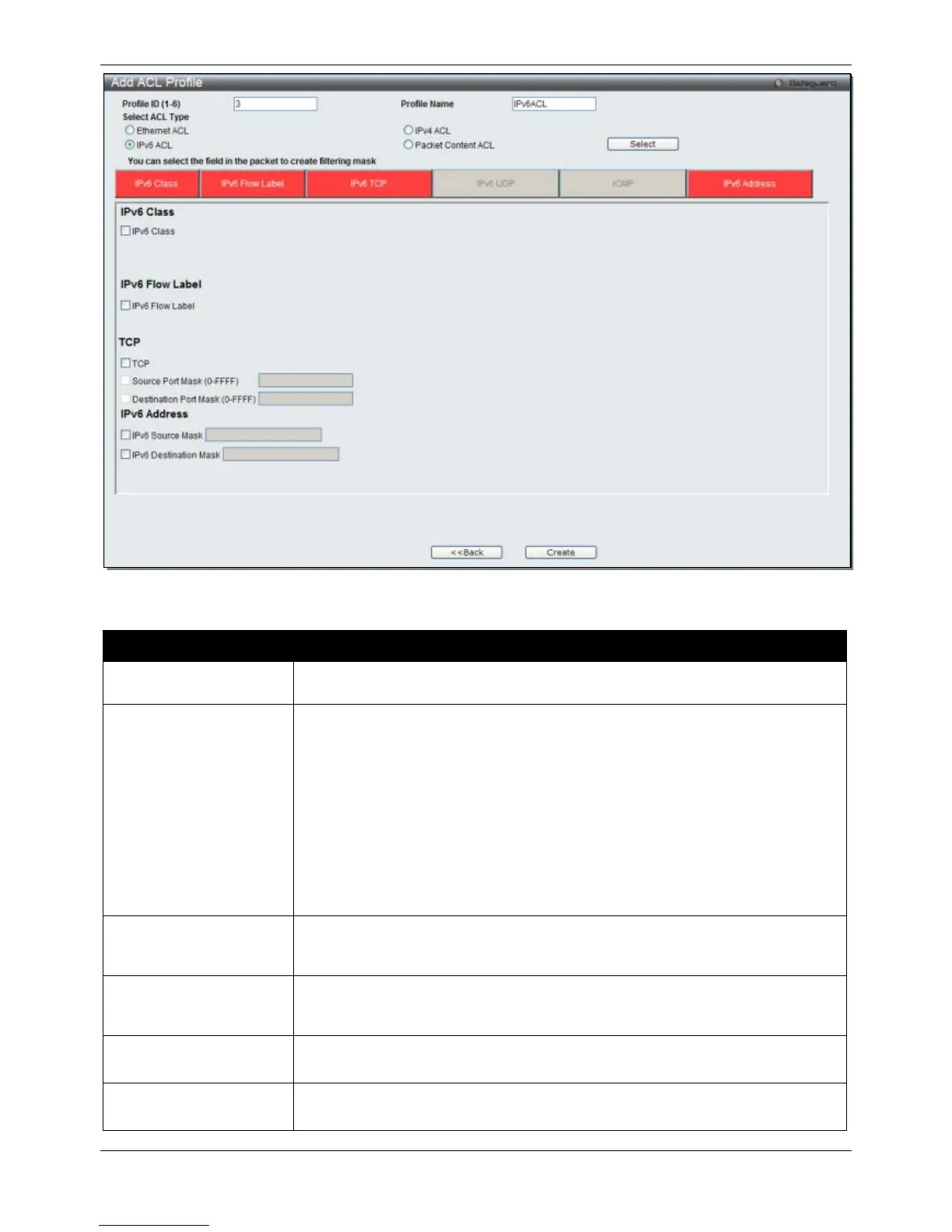

Figure 7-13 Add ACL Profile window (IPv6 ACL)
The fields that can be configured are described below:
Parameter Description
Profile ID (1-6) Enter a unique identifier number for this profile set. This value can be set from 1 to
6. A lower value denotes a higher priority.
Select ACL Type
Select profile based on Ethernet (MAC Address), IPv4 address, IPv6 address, or
packet content. This will change the window according to the requirements for the
type of profile.
Select Ethernet ACL to instruct the Switch to examine the layer 2 part of each
packet header.
Select IPv4 ACL to instruct the Switch to examine the IPv4 address in each
frame's header.
Select IPv6 ACL to instruct the Switch to examine the IPv6 address in each
frame's header.
Select Packet Content to instruct the Switch to examine the packet content in each
frame’s header.
IPv6 Class Ticking this check box will instruct the Switch to examine the class field of the IPv6
header. This class field is a part of the packet header that is similar to the Type of
Service (ToS) or Precedence bits field in IPv4.
IPv6 Flow Label Ticking this check box will instruct the Switch to examine the flow label field of the
IPv6 header. This flow label field is used by a source to label sequences of
packets such as non-default quality of service or real time service packets.
IPv6 TCP Source Port Mask Specify that the rule applies to the range of TCP source ports.
Destination Port MaskSpecify the range of the TCP destination port range.
IPv6 UDP Source Port Mask Specify the range of the TCP source port range.
Destination Port MaskSpecify the range of the TCP destination port mask.
