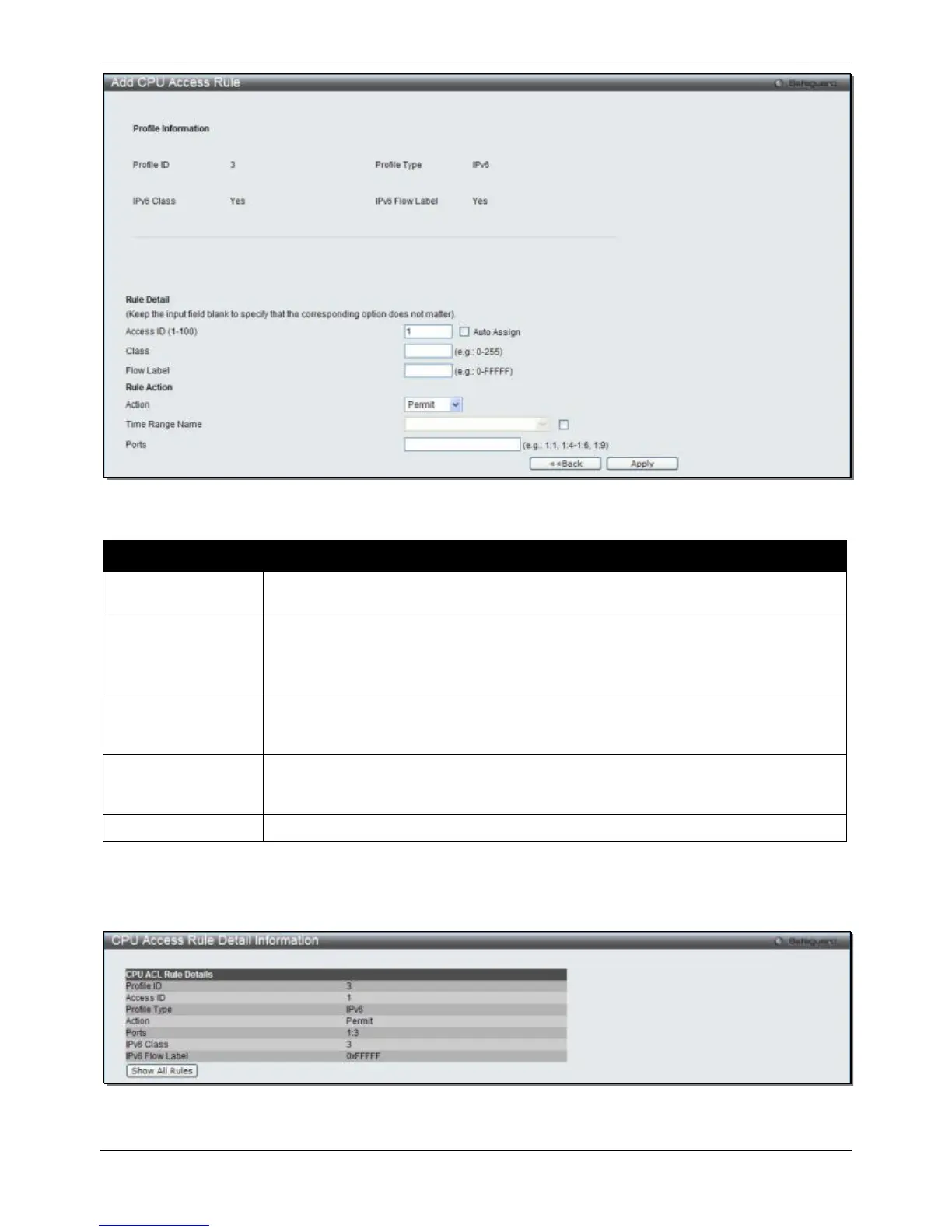

Figure 7-37 Add CPU Access Rule (IPv6 ACL)
The fields that can be configured are described below:
Parameter Description
Access ID (1-100) Enter a unique identifier number for this access. This value can be set from 1 to 100. A
lower value denotes a higher priority.
Action Select Permit to specify that the packets that match the access profile are forwarded by
the Switch, according to any additional rule added (see below).
Select Deny to specify that the packets that match the access profile are not forwarded
by the Switch and will be filtered.
Flow Label
Configuring this field, in hex form, will instruct the Switch to examine the flow label field
of the IPv6 header. This flow label field is used by a source to label sequences of
packets such as non-default quality of service or real time service packets.
Time Range Name
Tick the check box and enter the name of the Time Range settings that has been
previously configured in the Time Range Settings window. This will set specific times
when this access rule will be implemented on the Switch.
Ticking the All Ports check box will denote all ports on the Switch.
Click the Apply button to accept the changes made.
Click the <<Back button to discard the changes made and return to the previous page.
After clicking the Show Details button in the CPU Access Rule List, the following window will appear:
Figure 7-38 CPU Access Rule Detail Information (IPv6 ACL)
Click the Show All Rules button to navigate back to the CPU Access Rule List.
