xStack® DGS-3120 Series Layer 3 Managed Gigabit Ethernet Switch Web UI Reference Guide
406

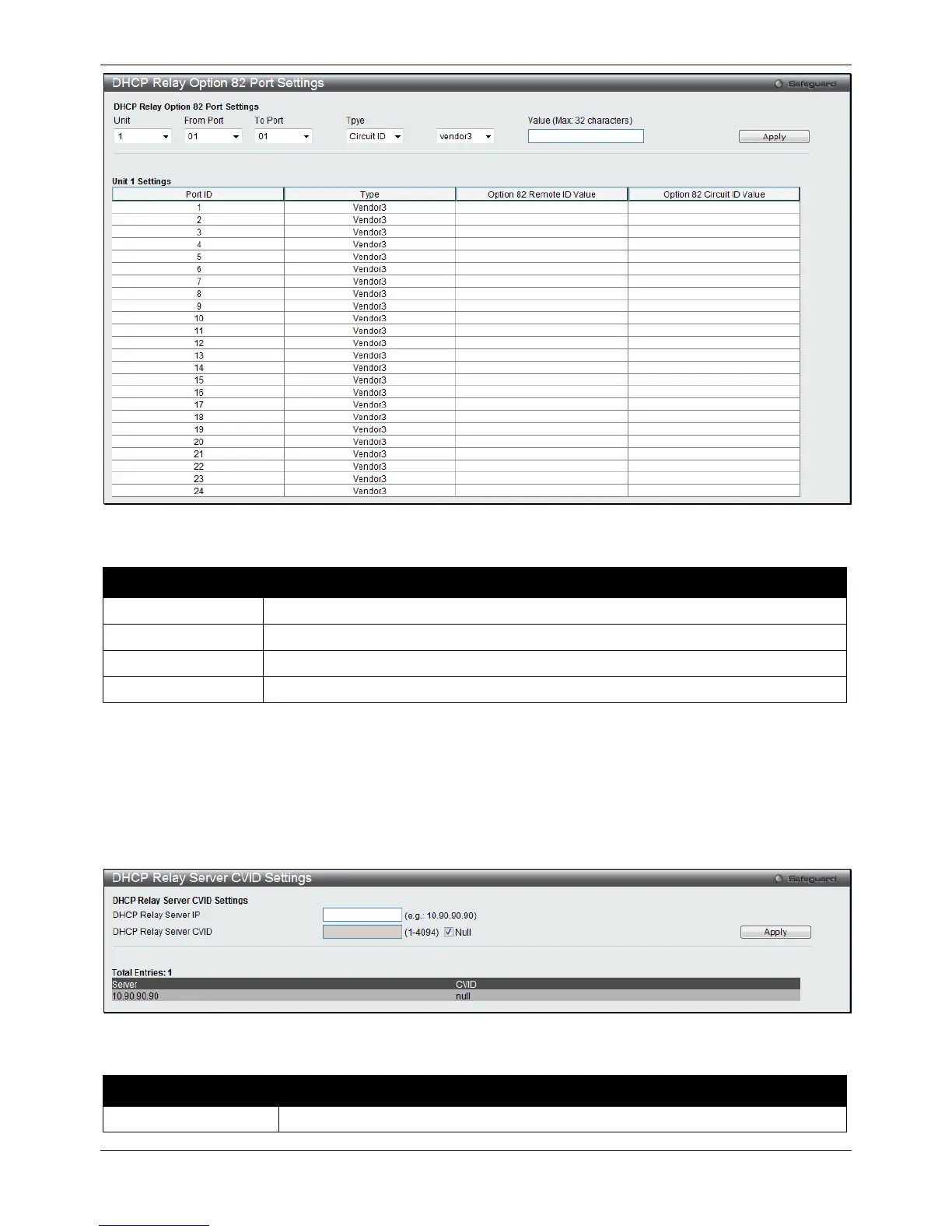

Figure 9-9 DHCP Relay Option 82 Port Settings window
The fields that can be configured are described below:
Parameter Description
Select the unit to be configured. (EI and SI Mode Only)
Select a range of ports to be configured.
Use the drop-down menu to select between Circuit ID and Remote ID.
Enter the user-defined value.
Click the Apply button to accept the changes made.
DHCP Relay Server CVID Settings
This window is used to configure DHCP relay agent destination IP address inner VLAN ID.
To view this window, click Network Application > DHCP > DHCP Relay > DHCP Relay Server CVID Settings as
shown below:
Figure 9-10 DHCP Relay Server CVID Settings window
The fields that can be configured are described below:
Parameter Description
DHCP Relay Server IP
Enter the DHCP or BOOTP server IP address.
