Removal and installation
EATON FS/6309A GEARBOX
ΛΦ45/55 series
3
6

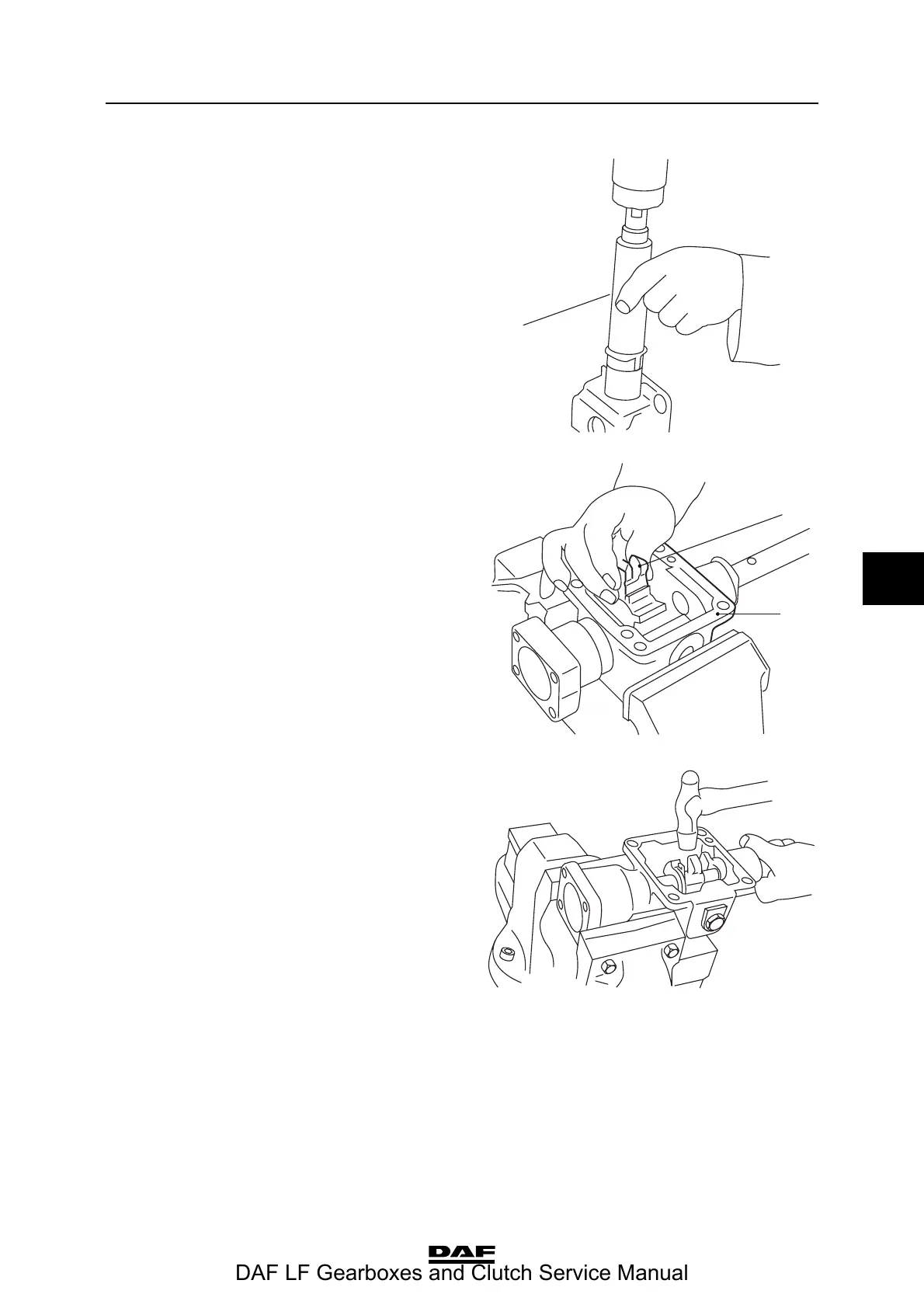

1. Fit a new oil seal ring and, if necessary, new
bushes (4) and (9) using special tool
(DAF no. 1329352).
2. Place the selector finger (18) in the selector
shaft housing (15) with the long groove and
the hole for the pin (19) pointing towards the
rear.
3. Fit the selector shaft (17) into the selector
shaft housing.
4. Make sure that the holes in the selector
finger and the selector shaft are aligned and
fit a new pin (19).
5. Fit the spring clip (10) and a spring holder
(11) onto the selector shaft.
V3 00498
V3 00501
18
15
V3 00514
