EATON FS/6309A GEARBOX
3-10
©
200508
Removal and installation
6
ΛΦ45/55 series
3

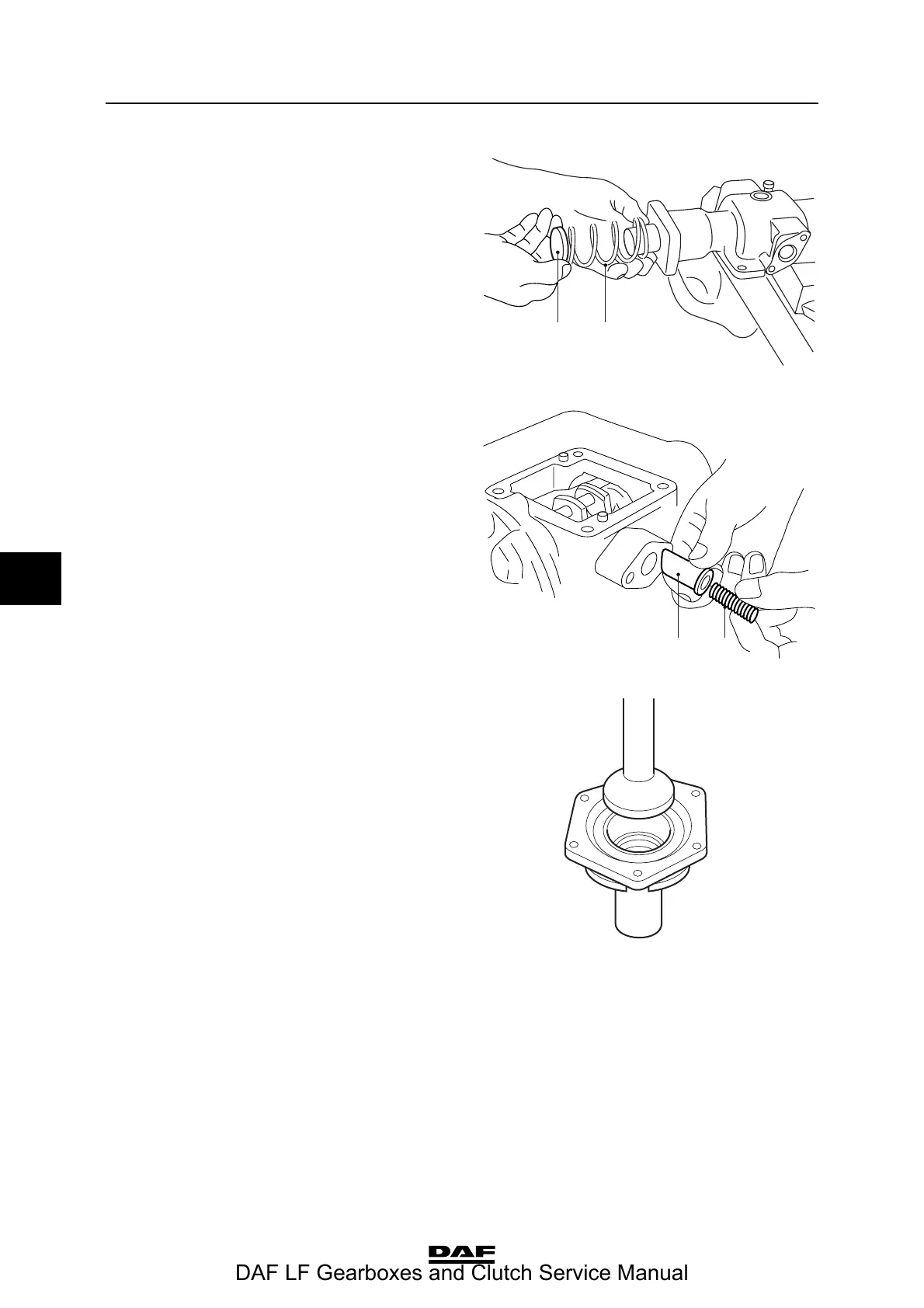

6. Fit the springs (12), a spring holder (11) and
the spring clip (10) onto the selector shaft.
7. Put a new gasket in the end cover (14) and
attach the cover. Tighten the attachment
bolts to the specified torque. See "Technical
data".
8. Fit the retaining pin (6) and the retaining
spring (7) and put a new gasket in the
retaining cover (5) before fitting that as well.
Tighten the attachment bolts to the specified
torque. See "Technical data".
9. Fit the rubber sleeve (2).
10. Tighten the bleeder (20) to the specified
torque. See "Technical data".
11. Fit the bleed control valve and pin (16) and
tighten to the specified torque. See
"Technical data".
12. Fit the selector shaft housing onto the
gearbox using the specified locking
compound and tighten the attachment bolts
to the specified torque. See
"Technical data".
13. Install the shifting arm in the correct position
on the selector shaft and tighten the lock nut
to the specified tightening torque. See
"Technical data".
V3 00506
11 12
V3 00 547
67
V301006
DAF LF Gearboxes and Clutch Service Manual
