MECHANICAL GEARBOX CONTROL
2-2
©
200508
Inspection and adjustment
2
ΛΦ45/55 series
3

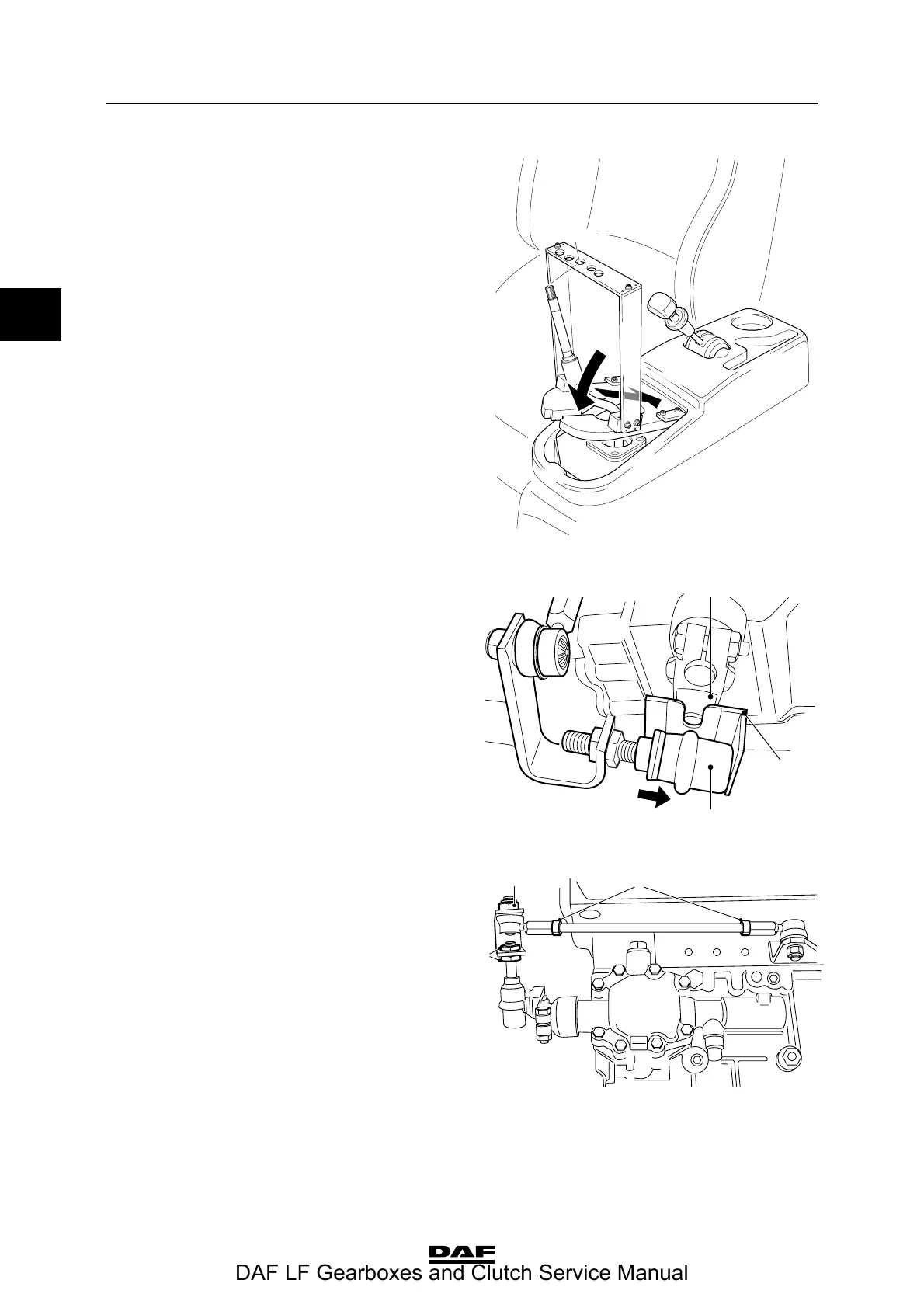

6. Fix the gear lever by fitting the special tool
(DAF no. 1329488) over the gear lever and
inserting the end of the gear lever through
the appropriate opening.
7. Fit the special tool (DAF no. 1453143)
between the ball joint (1) and the arm (2).
Centre the ball joint (1) by pressing it against
the shoulder of the special tool (A).
Note:
On the special tool (A) (DAF no. 1453143) it
is shown which side of the tool must be used
for LHD vehicles and which side for RHD
vehicles.
8. Hand-tighten the lock nuts (3) of the gearbox
lever without moving the control rod.
9. Tighten the lock nuts (3) on the gearbox lever
to the specified torque without moving the
control rod. See "Technical data".
10. Adjust the length of the torque rod in such a
way that it can be positioned in the control
rod without tension. Tighten the attachment
nut (1) to the specified torque. See
"Technical data".
