How to Program
Setup 2 [2]
Setup 3 [3]
Setup 4 [4]
Function:
To enable conflict-free changes from one set-up to
another during operation, link set-ups co ntaining
parameters which are not changeable during
operation. The link will ensure synchronising of
the ‘not changeable d uring operation’ parameter
values when moving from one set-up to another
during operation. ‘Not changeable during operation’
parameters can be identified by the label FALSE in
the parameter lists in the se ctionParameter Lists.
The par. 0-12 link set-up feature is used by Multi
set-up in par. 0-10 Active Set-up. Multi set-up is
used to move from one set-up to another during
operation (i.e. while the motor is running).
Example:
Use Mult i set-up to shift from Set-up 1 to Set-up 2
whilst the motor is running. Programme in Set-up
1 first, then ensure that S et-up 1 and Set-up 2
are synchronised (or ‘linked’). Synchronisation
can be performed in two ways:

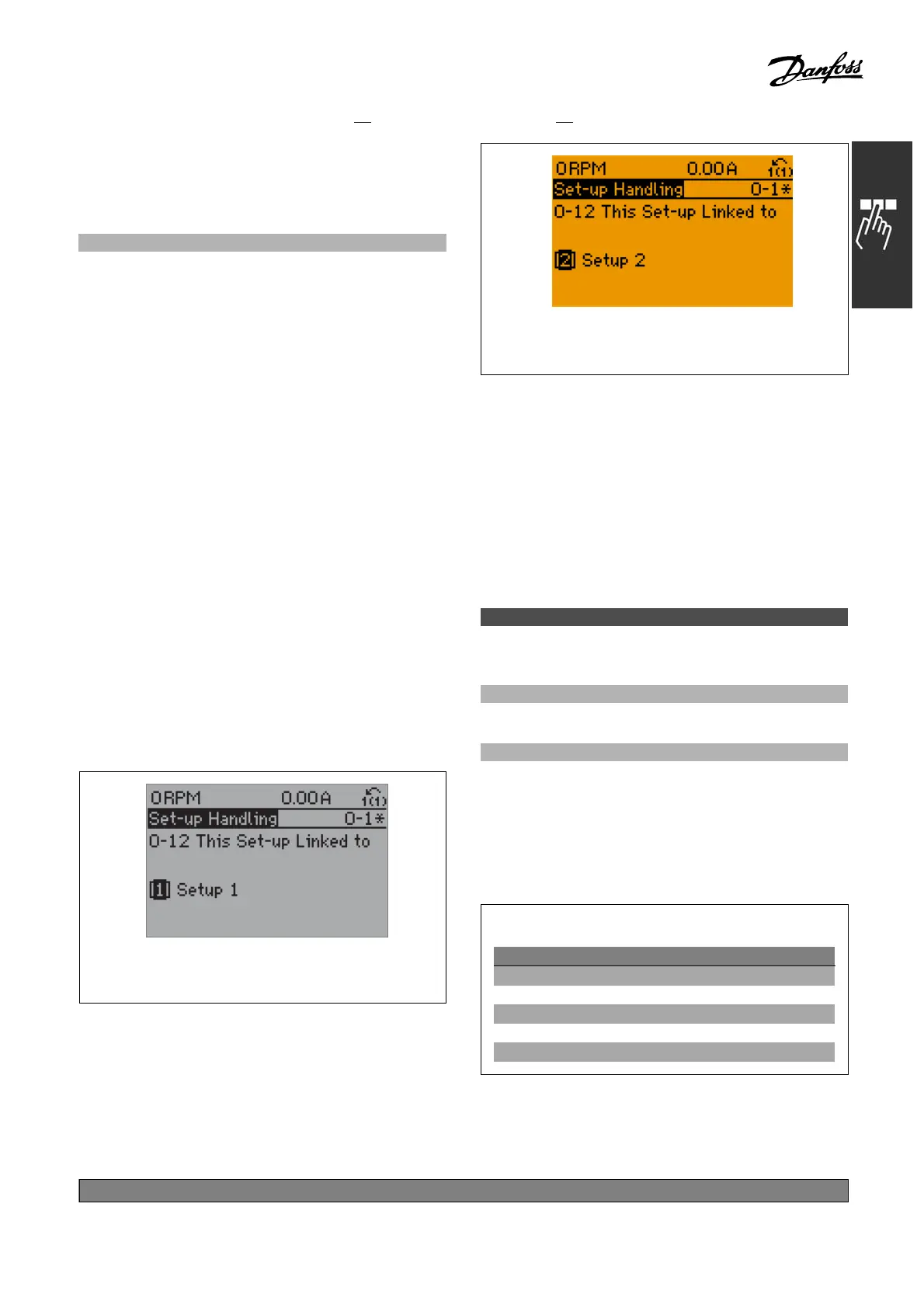

1. Change the edit set-up to Set-up 2 [2] in
par.0-11 Edit Set-up and set par. 0-12 This
Set-up Linked to to Set-up 1 [1]. This will start
the linking (synchronising) process.
130BP075.10
OR
2. While still in Set-up 1, copy Set-up 1 to
Set-up 2. Then set par.0-12 to Set-up 2 [2 ].
This will start the li nking process.
130BP076.10
After the link is complete, par. 0-13 Readout:
Linked Set-ups w ill read {1,2} to indicate that all
‘not changeable during operation’ parameters on
are n ow the same in Set-up 1 and Set-up 2. If there
are changes to a ‘not changeable during operation’
parameter, e.g. par 1-30 Stator Resistance (rs),in
Set-up 2, they will also be changed automatically in
Set-up 1. A switch between S et-up 1 and Set-up
2 during operation is now possi ble.
0-13 Readout: Linked Set-ups
Array [5]
Range:
0-255N/A
*
0N/A
Function:
View a list of all the set-ups linked by means of par.
0-12 This Set-up Linked to.Theparameterhas
one index for each parameter set-up. E ac h set-up
shows the set -up bitset to which it is linked. .
Example: Set-up 1 and Set-up 2 are linked
Index LCP value
0{0}
1 {1,2}
2 {1,2}
3{3}
4{4}
*
default setting ()display text []value for use in communication via serial communication port
153
MG.33.B
6.22 - V LT is a registered Danfoss trademark
