Danfoss FC 300 Design Guide

FC 300 Design Guide
How to Program
SelectResume [0] to restart the freque ncy converter
maintaining the samelocal reference and the same
start/stop settings (applied by [START/STOP]) as
before the frequency converter was powered down.
Select Forced stop, use saved reference [1] to
restart the frequency converter with a saved
local reference, after mains voltage reappears
and after pressing [START].
Select Forced stop, set reference to 0 [2] to
reset the local reference to 0 upon restarting
the frequency converter.
" 0-1* Set - U p Operations
Define and control the i ndividual parameter set-ups.
0-10 Active S et-up
Option:
Factory setup [0]
*
Set-up 1 [1]
Set-up 2 [2]
Set-up 3 [3]
Set-up 4 [4]
Multi set-up [9]
Function:
Select the set-up to control the frequency
converter functions.
Factory Set-up [0] cannot be changed. It
contains the Danfoss data set, and can be
used as a data source when returning the
other set-ups to a known state.
Set-up 1 [1] to Set-up 4 [4] are the four
separate parameter set-ups within which all
parameters can be programmed.
Select Multi Set-up [9] for remote selection
of set-ups u sing digital inputs and the serial
communication port. This option uses the settings
from par. 0-12 This option linked to. Stop the
frequency converter before making changes to
open loop and closed loop functions.
Use p ar. 0-51 Set-up copy to copy a set-up to one
or all other set-ups. Stop the f req u ency converter
before switching between set-up s where parameters
marked ‘not changeable during operation’ have
different values. To avoid conflicting settings of
the same parameter within two different set-ups,
link the set-ups together using par. 0-12This
set-up linked to. Parameters which are ‘not
changeable during operation’ are marked FALSE in
the parameter lists in the section Parameter Lists.
0-11 Edit Set-up
Option:
Factory setup [0]
*
Set-up 1 [1]
Set-up 2 [2]
Set-up 3 [3]
Set-up 4 [4]
Active Set-up [9]
Function:

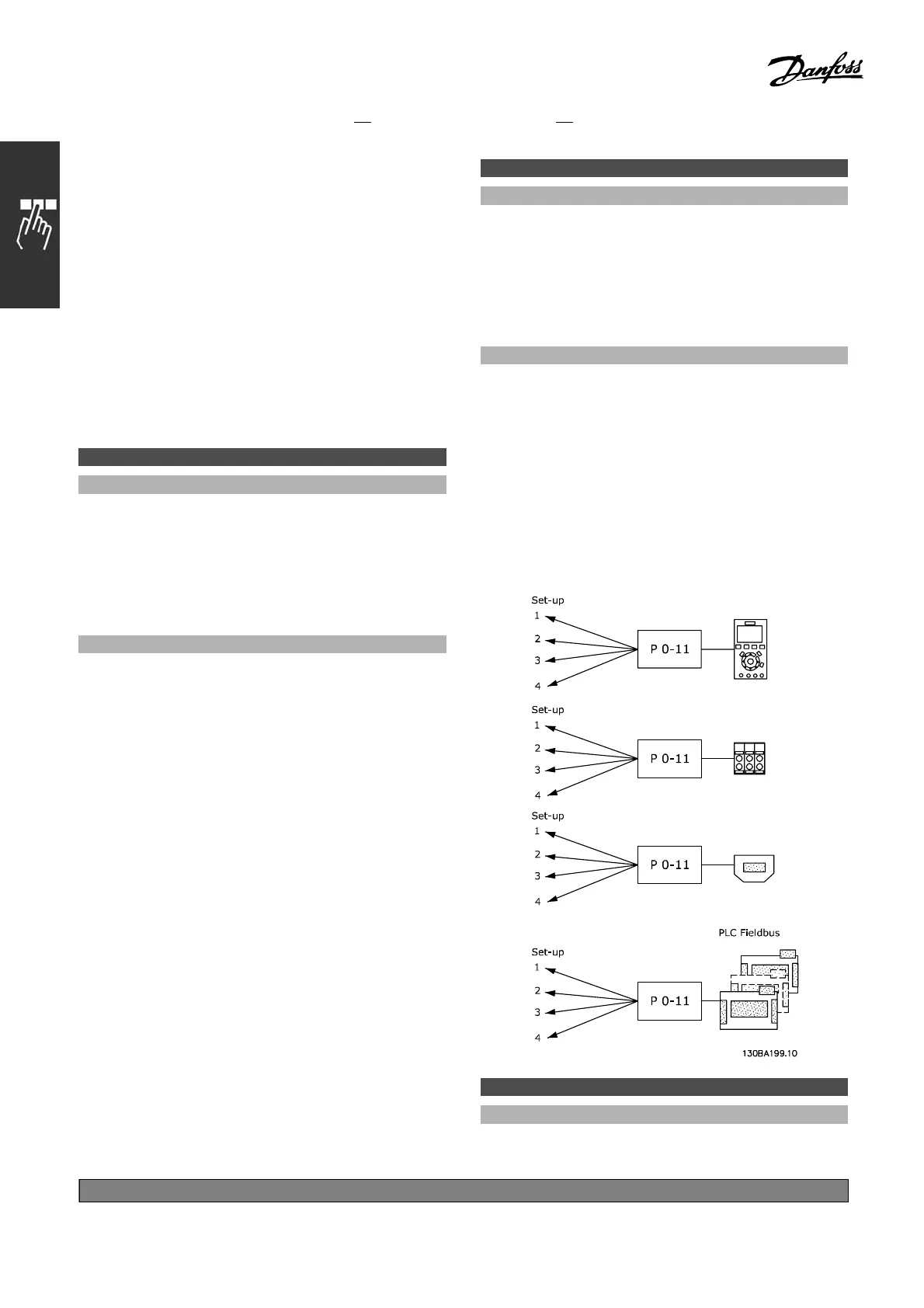

Select the set-up to be edited (i.e. prog rammed)
during operation; either the active set-up or
one of the inacti ve set- ups.
Factory set-up [0] cannot be edited but it is useful
as a data source to return the other set-ups to
aknownstate. Set-up 1 [1] to Set-up 4 [4 ] can
be edited freely during operation, independently
of the active set-up. The Active set-up [9] can
also be edited during operation. Edit the chosen
set-up from a range of sources: LCP, FC RS485 ,
FC USB or up to five field bus s ites.
0-12 This Set-up Link ed to
Option:
*
Setup 1 [1]
*
default setting ()display text []value for use in communication via serial communication port
152
MG.33.B
6.22 - V LT is a registered Danfoss trademark
