STOP
READY
I/O
ID:405
P3.5.1.11
Digital Inputs
BA
C
DigINSlotA.3
DigINSlot0.2
DigINSlotA.6
Fault Reset Close
Ext Fault Open
Ext Fault Close
e30bg692.10

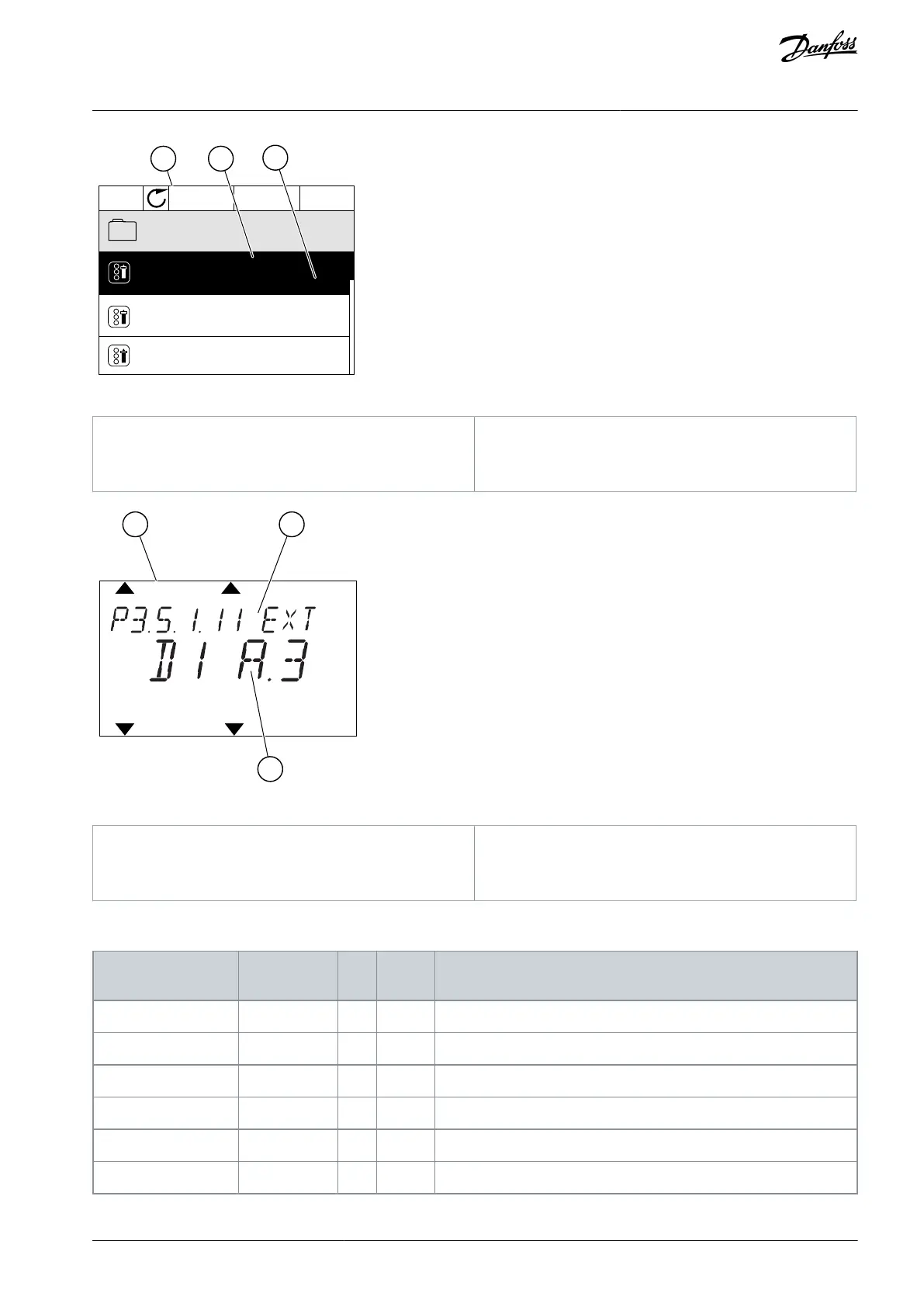

Illustration 52: The Digital Inputs Menu in the Graphical Display
A
The graphical display
B
The name of the parameter, that is, the function
C
The value of the parameter, that is, the set digital in-
put
READY
FAULT
ALARM
STOP
RUN
KEYPAD
1/O
REV
FWD
BUS
A B
C
e30bg693.10
Illustration 53: The Digital Inputs Menu in the Text Display
A
The text display
B
The name of the parameter, that is, the function
C
The value of the parameter, that is, the set digital in-
put
Example
In the standard I/O board compilation, there are 6 digital inputs available: the slot A terminals 8, 9, 10, 14, 15 and 16.
Input type (graphical
display)
Input type
(text display)
Slot
Input #
Explanation
DigIN
dI
A
1
Digital input #1 (terminal 8) on a board in Slot A (standard I/O board).
DigIN
dI
A
2
Digital input #2 (terminal 9) on a board in Slot A (standard I/O board).
DigIN
dI
A
3
Digital input #3 (terminal 10) on a board in Slot A (standard I/O board).
DigIN
dI
A
4
Digital input #4 (terminal 14) on a board in Slot A (standard I/O board).
DigIN
dI
A
5
Digital input #5 (terminal 15) on a board in Slot A (standard I/O board).
DigIN
dI
A
6
Digital input #6 (terminal 16) on a board in Slot A (standard I/O board).
AB298035655957en-000201 / DPD01083 | 195Danfoss A/S © 2023.08
Parameter Descriptions
VACON® 100 FLOW
Application Guide
