Chapter 3 Electrical Wiring｜VP3000
114
Frame C1
Applicable models: VFD025VP43ANTAA, VFD032VP43ANTAA, VFD038VP43ANTAA

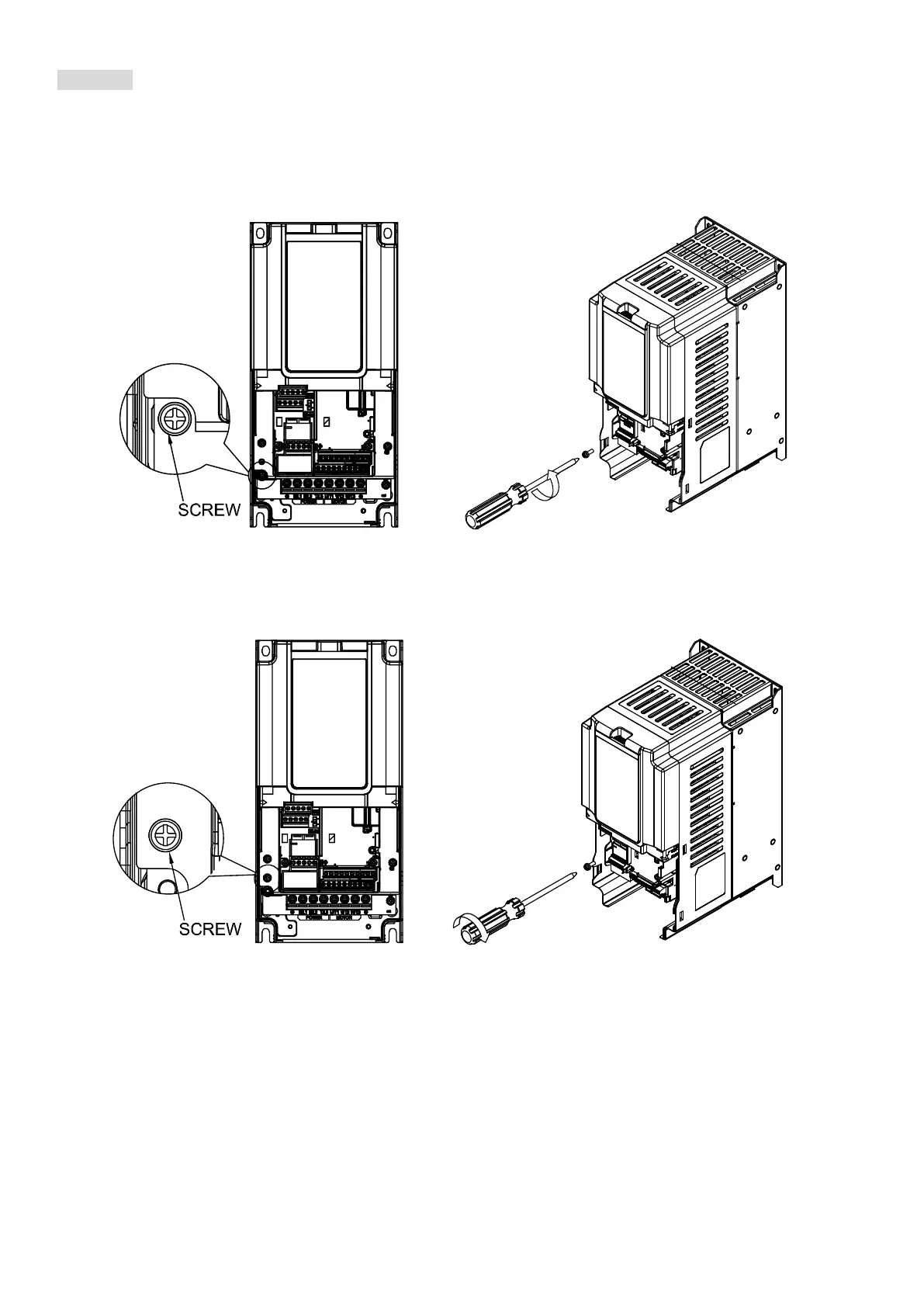

1. Loosen and remove the screws.
Screw torque: 8–10 kg-cm / (6.9–8.7 lb-in) / (0.78–0.98 Nm)
Figure 3-60
2. Fasten the screws to the RFI jumper storage placement.
Screw torque: 8–10 kg-cm / (6.9–8.7 lb-in) / (0.78–0.98 Nm)
Figure 3-61
