Delta VP3000 Series User Manual

Chapter 3 Electrical Wiring｜VP3000
132
Frame L–M
Applicable models: VFD530VP43SHTCA–VFD1K2VP43SHTCA

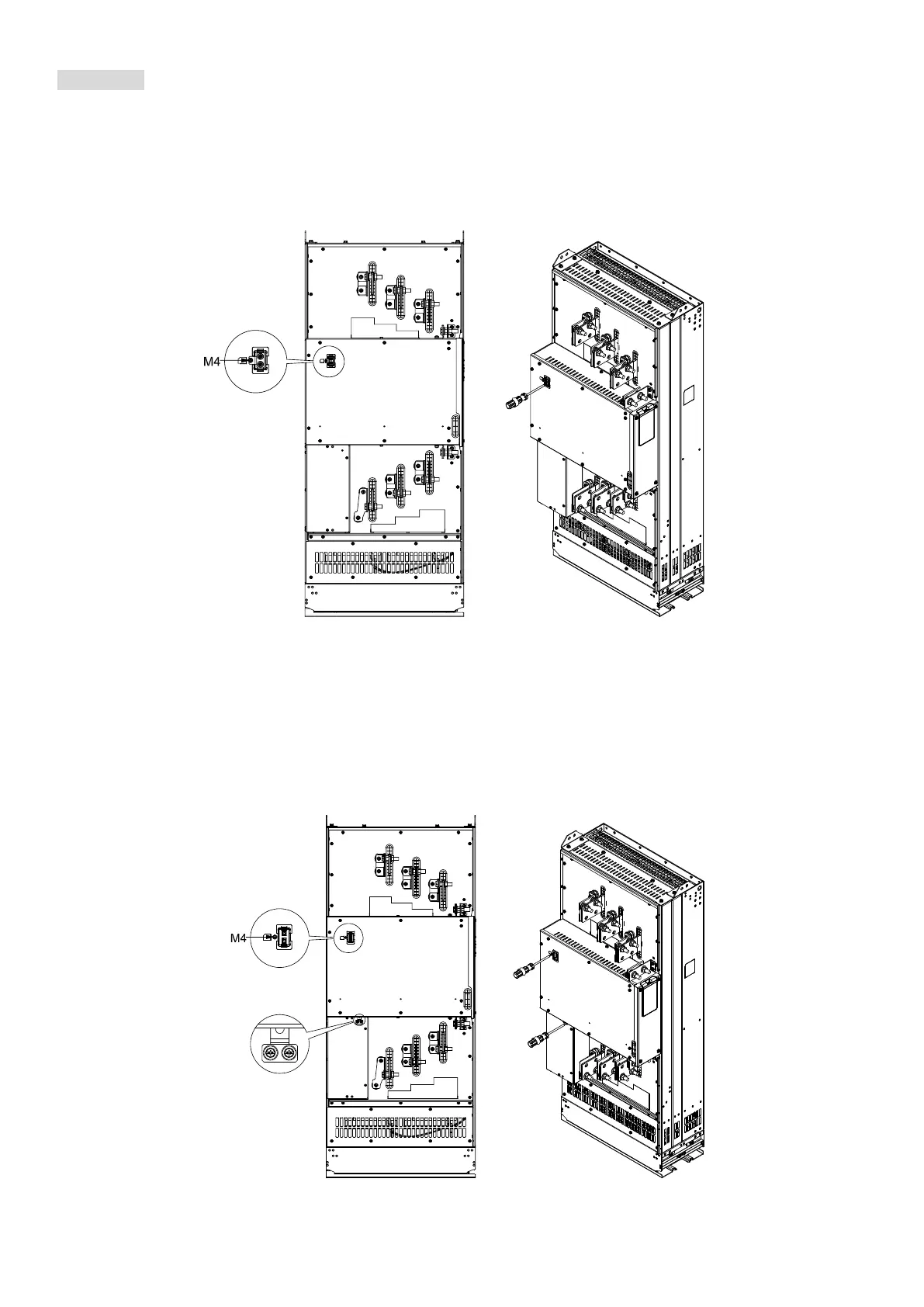

1. Loosen the three screws on the RFI jumper and remove the jumper.
M4 screw torque: 14–16 kg-cm / (12.2–13.9 lb-in.) / (1.37–1.57 Nm)
RFI jumper screw torque: 8–10 kg-cm / (6.9–8.7 lb-in.) / (0.78–0.98 Nm)
Figure 3-96
2. Fasten the M4 screws back to its original position and put the RFI jumper to the position indicated in the
figure below and fasten it.
M4 screw torque: 14–16 kg-cm / (12.2–13.9 lb-in.) / (1.37–1.57 Nm)
RFI jumper screw torque: 8–10 kg-cm / (6.9–8.7 lb-in.) / (0.78–0.98 Nm)
Figure 3-97
