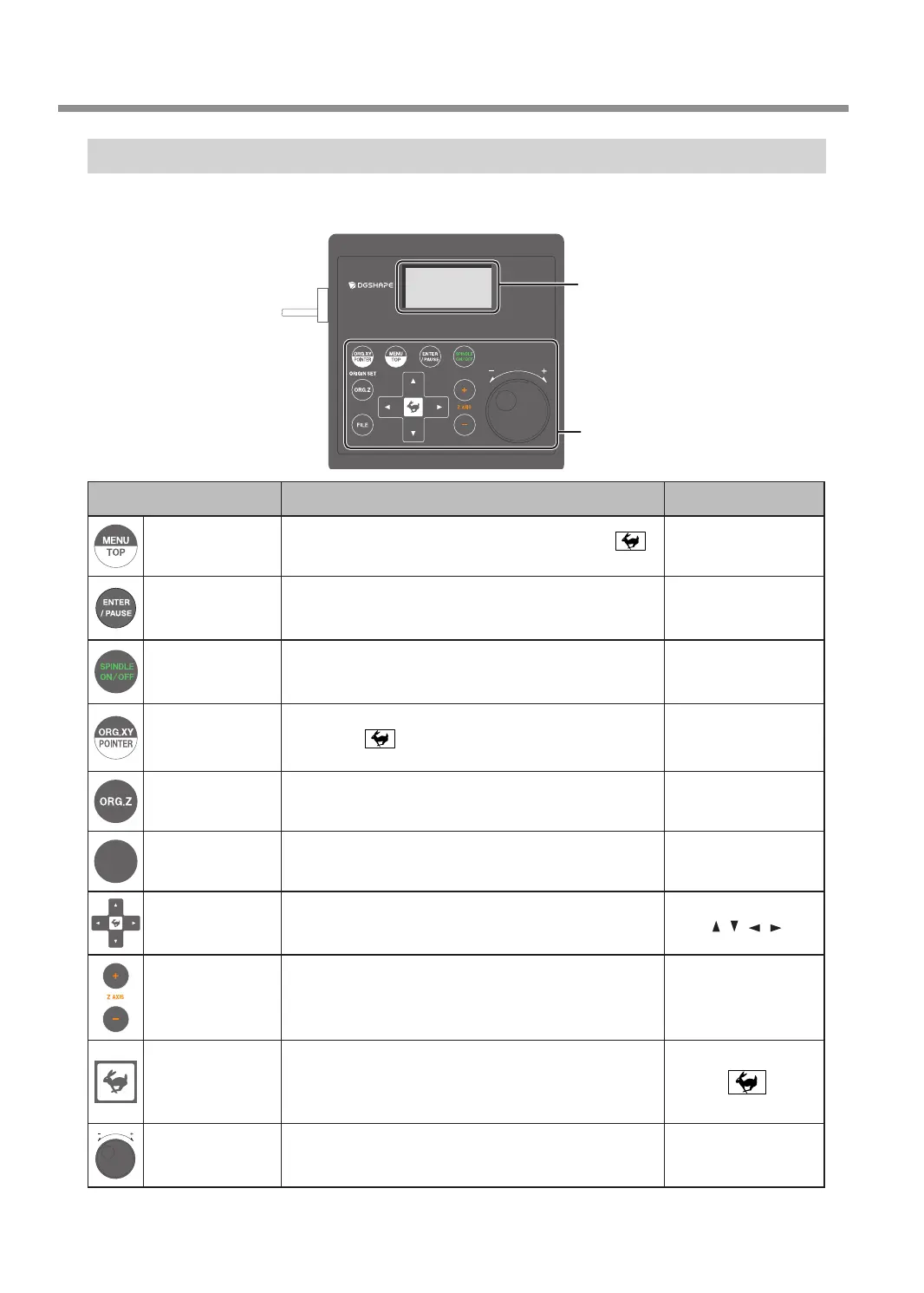

Handy Panel
This is used to perform tool movement and other machine operations, and to make various settings. Close the
front cover, then perform the operation of the handy panel.
Display screen
Menus, messages, etc. are displayed here.
" P.9 “Viewing the Handy Panel Screen”
Operation button
For details, see table below.
Operation button Functional overview
Notation used in this
document
Menu/Top
Pressing this changes the menu screen. Hold down
and press this button to return to the main screen.
[MENU/TOP]
Enter/Pause
This executes a selected on-screen item or conrms a
selected item or value. Pressing this during engraving
pauses operation and displays the PAUSE menu.
[ENTER/PAUSE]
Spindle
Holding this down for one second or longer while the
spindle is stopped makes spindle rotation start. Pressing
this during spindle rotation stops rotation.
[SPINDLE]
X/Y-axis Origin
Setting/Laser
Pointer
This sets the reference point for the engraving position.
Hold down
and press this button to switch on and
off the irradiation from the laser pointer.
[ORG.XY/POINTER]
Z-axis Origin
Setting
This sets the reference point for the engraving position. [ORG.Z]
FILE
File Operates the data in the memory of this machine. [FILE]
Move
These move the tool forward and backward, and to the left
and right.
[
] [ ] [ ] [ ]
Z-axis
Movement
These move the tool up and down.
[+Z]
[-Z]
Feed/Shift
Pressing a Movement or Z-axis Movement button while
holding down this button makes the tool move rapidly. This
is also used as a shift key by pressing it at the same time
as other buttons.
Dial
This adjusts the movement of the tool and the number of
rotations of the spindle. You use this to select items and
change settings on the menu screen.
[Dial]
Part Names and Functions
8
Chapter 1 Getting Started
