Using a Diamond Scraper
This performs "Scribing" using a diamond scraper. With "Scribing," cutting is carried out by scraping the workpiece
without rotating the spindle. Because automatic Z control is set to [ON], the cutting-in depth of the workpiece is
determined by the pressure of the cutter.
WARNING
Never inadvertently touch the computer or handy panel while performing this task.
Unintended operation of the machine may lead to you being caught in the machine.
WARNING
Securely fasten the cutting tool and workpiece in place. After securing in place,
make sure no spanners or other articles have been left behind inadvertently.
Otherwise, such articles may be thrown from the machine with force, posing a
risk of injury.
CAUTION
Be careful around the cutting tool.
The cutting tool is sharp. Broken cutting tools are also dangerous. To avoid injury,
exercise caution.
CAUTION
The machine contains blades and other sharp components.
Be careful not to touch the tool tip or any other sharp edges. Doing so may cause
injury.

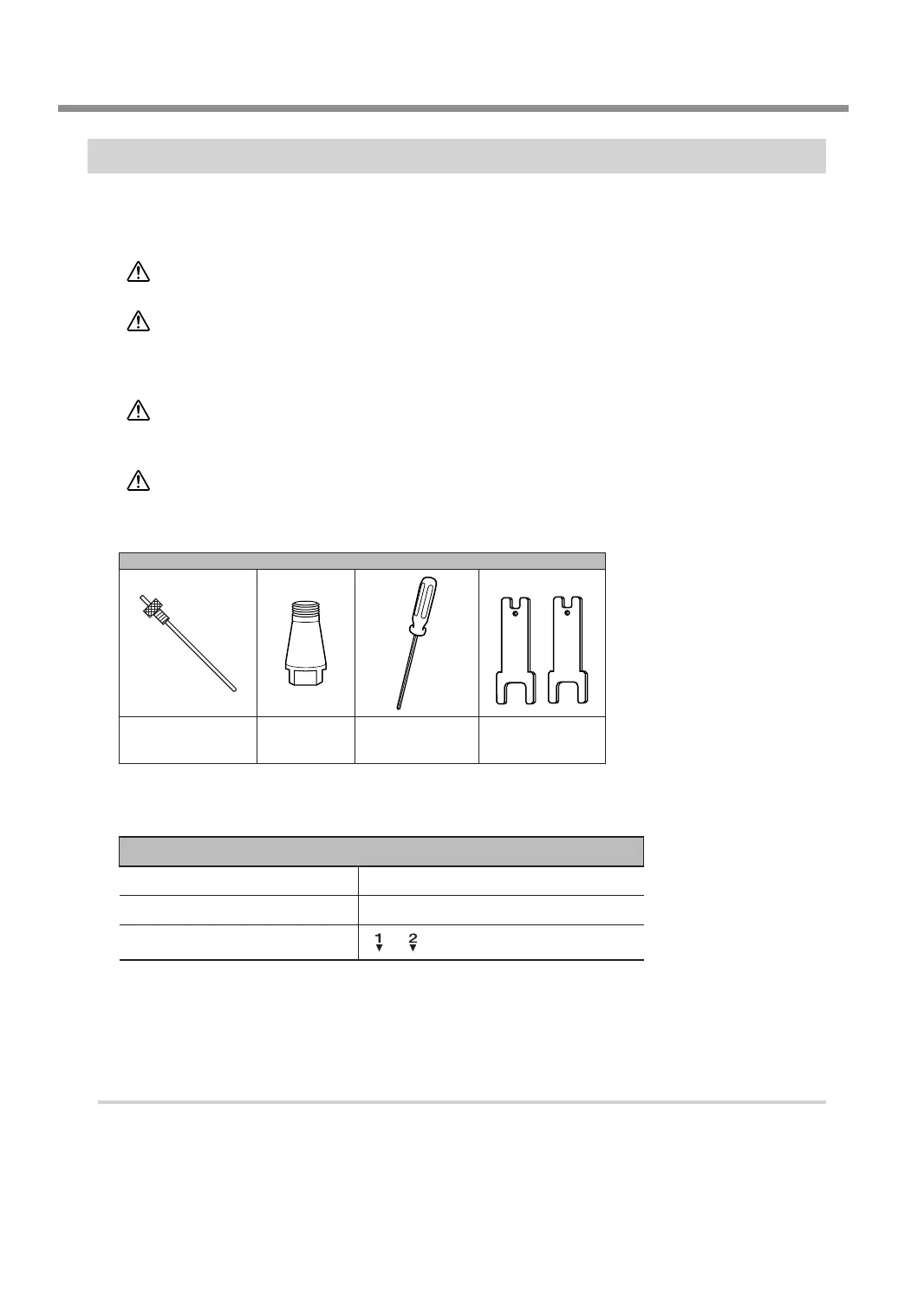

Items used in this procedure
Diamond scraper* Solid collet*
Hexagonal
screwdriver
Wrenches (2)
* Optional item
** ø3.175 mm (0.125 in.) diamond scrapers can be used with the included solid collet.
** For ø4.36 mm (0.17 in.) diamond scrapers, use an optionally available dedicated diamond-scraper collet.
Settings for this machine
Automatic Z control ON
Spindle rotation OFF
Lock lever position
or
Before performing the procedure in this section, complete the following operations.
" P. 38 "Setting the Workpiece"
" P. 39 "Step 2: Setting the XY Origin"
1.
Make the settings for spindle rotation and Z-axis control.
A
If the front cover is open, close it.
Using Various Tools
88
Chapter 5 Various Engraving Methods
