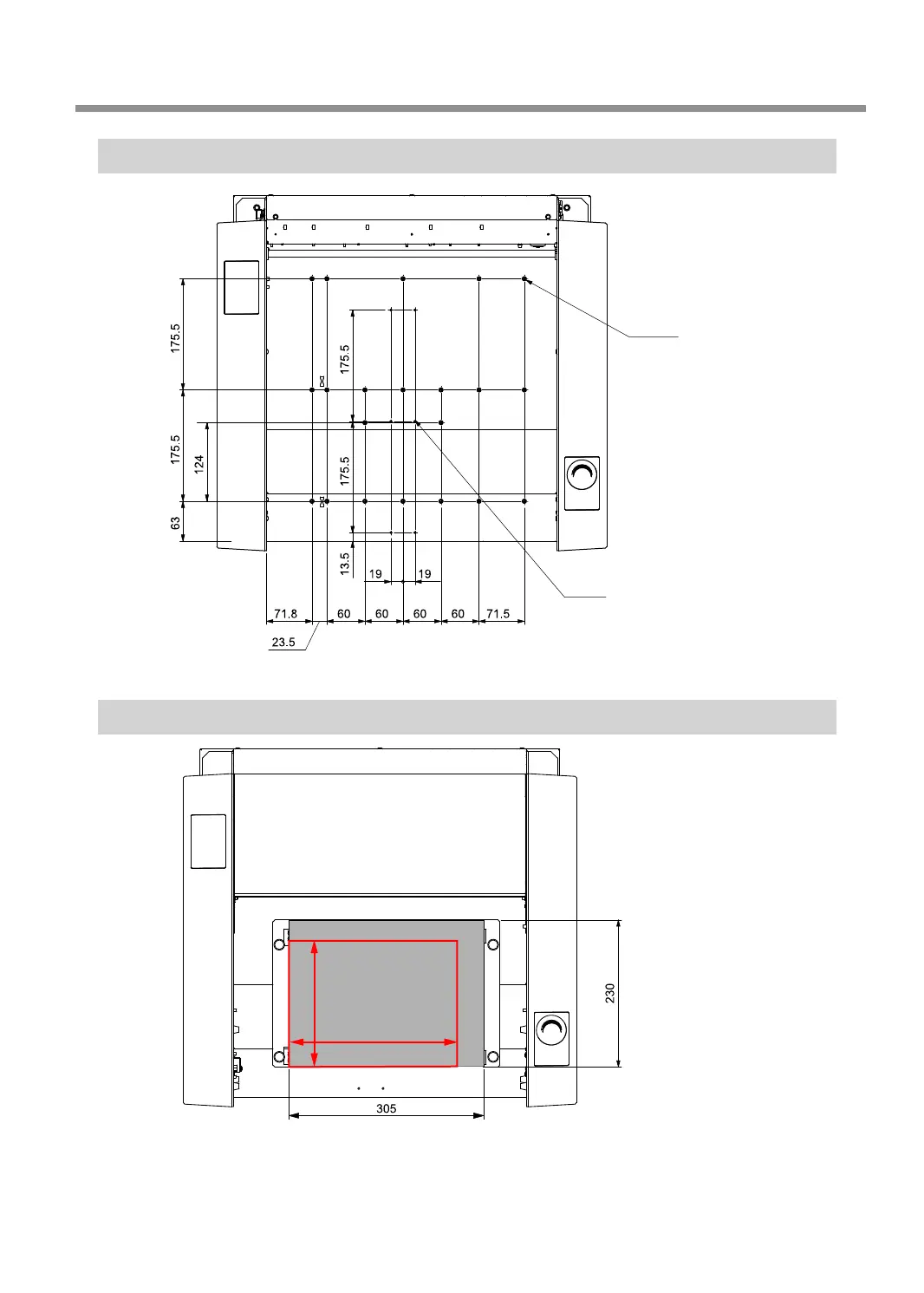

Workpiece Table Installation Area Dimensional Drawing
Unit: mm
21×M5
4×M4
Laser Pointer Irradiation Area
Unit: mm
( 260 mm )
( 197 mm )
Y operating range
/Workpiece table
dimensions
X operating range/Workpiece table dimensions
Laser pointer
irradiation area
Machine Specications
155
Chapter 6 Appendix
