DGSHAPE DE-3 - Cleaning Inside the Spindle Unit Cover

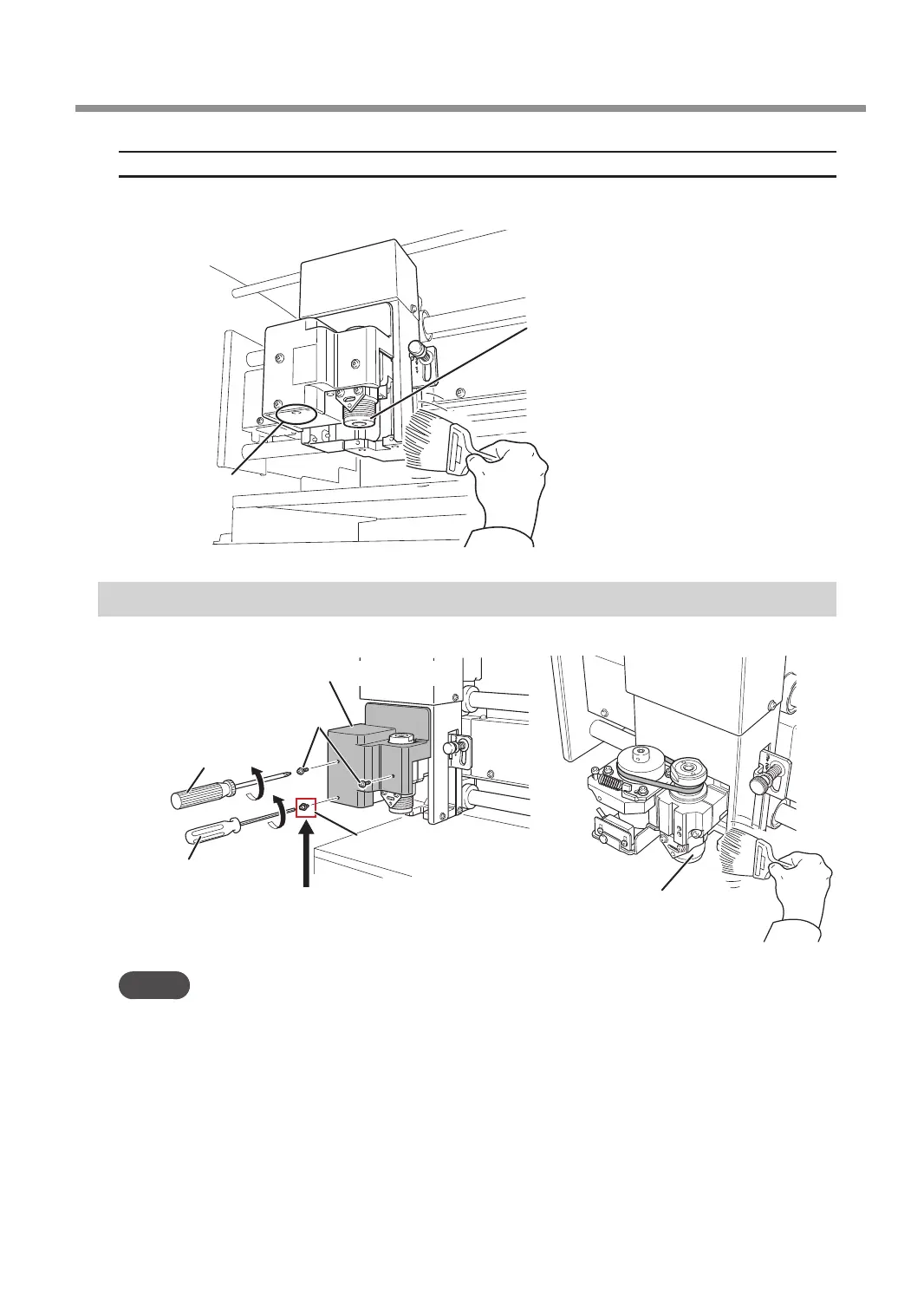

Cleaning Near the Spindle Head
Uninstall the nose unit, collet, and tool, and remove any cutting waste that has collected in areas such as the tip of
the spindle unit and the laser pointer.
Spindle unit
Laser pointer
Cleaning Inside the Spindle Unit Cover
Detach the spindle unit cover and clean away any buildup of cutting waste inside.
Spindle unit
* A dierent type of screw is used in one location.
Exercise caution when attaching the screws.
Spindle unit cover
Screws (two locations)
Cap screw
Hexagonal
screwdriver
Phillips head screwdriver
(commercially available)
MEMO
Engraving while sucking up cutting waste using a vacuum cleaner by attaching the vacuum adapter can minimize
scattering of cutting waste only when the nose unit is used.
" P. 58 "Attaching the Vacuum Adapter"
