Thickness

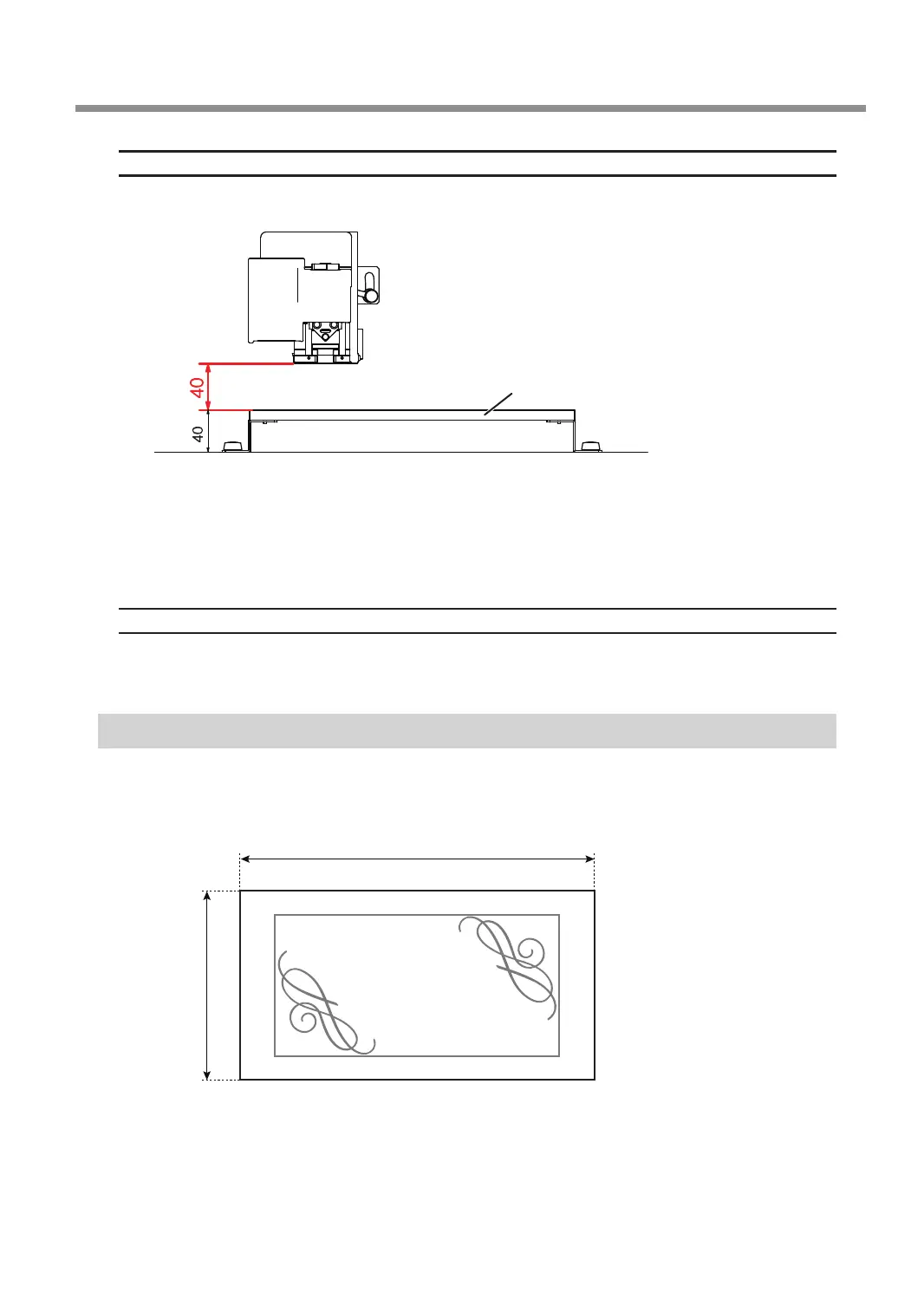

The thickness must be 40 mm (1.6 in.) or less whereby the height for the tool to avoid the workpiece can be
maintained during engraving.
Workpiece table
Thickness of attachable workpieces = 40 mm
(1.6 in.)
* The thickness of workpiece that can actually be engraved is restricted by the length of the installed tool,
the location where the nose unit is installed and the cut-out amount, and is smaller than the range
indicated above.
* When nose unit is used: The maximum distance between the workpiece table and the tip of the nose unit
is 38 mm (1.5 in.).
Shape
The surface to be engraved is level.
* When nose unit is used: Gentle undulations of less than 1 mm (0.04 in.) (trackable undulation height).
Determining the Item to Create and Required Material and Tool
In this example, you will create a celebration gift using the following material and tool.
¾ Material (workpiece): Wood
¾ Tool: Character cutter ø3.175 (ZEC-A2025)
Congraturations
75 mm (3.0 in.)
40 mm
(1.6 in.)
