DGSHAPE DE-3 - Connector Specifications; Expansion Port

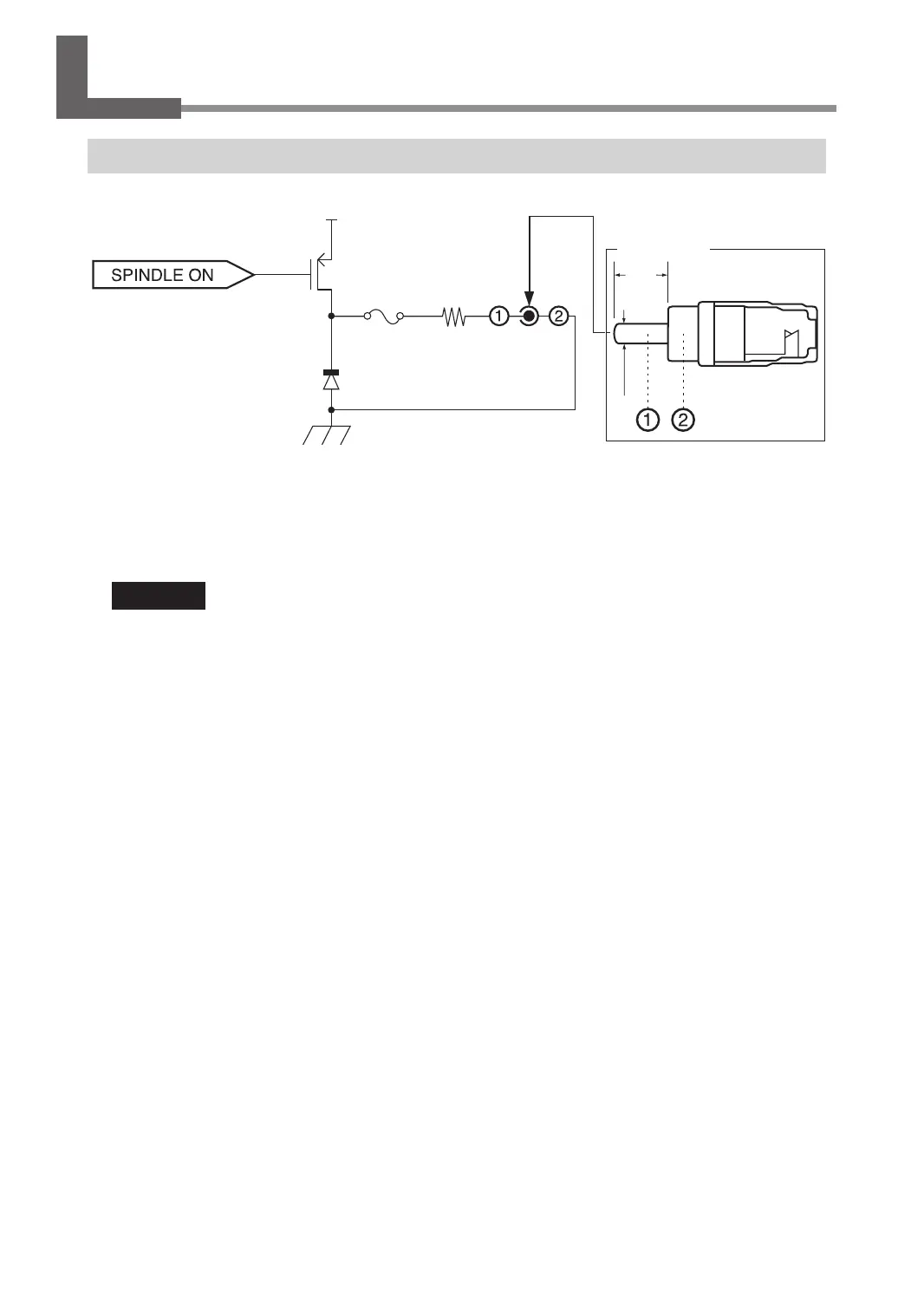

Expansion Port
This circuit works during spindle motor rotation.
+24 V
Pin 1
Connector
Pin 2max = 375 mA
4.7 Ω
3.2 mm
9 mm
Adaptive plug
* We are not responsible for machines connected to this port.
Important
• Be sure to use the connector within the rated range shown above.
• Do not apply an additional voltage to the connector.
• Do not short-circuit the connector to ground.
Connector Specications
152
Chapter 6 Appendix
