DGSHAPE DE-3 - Work Area

Work Area

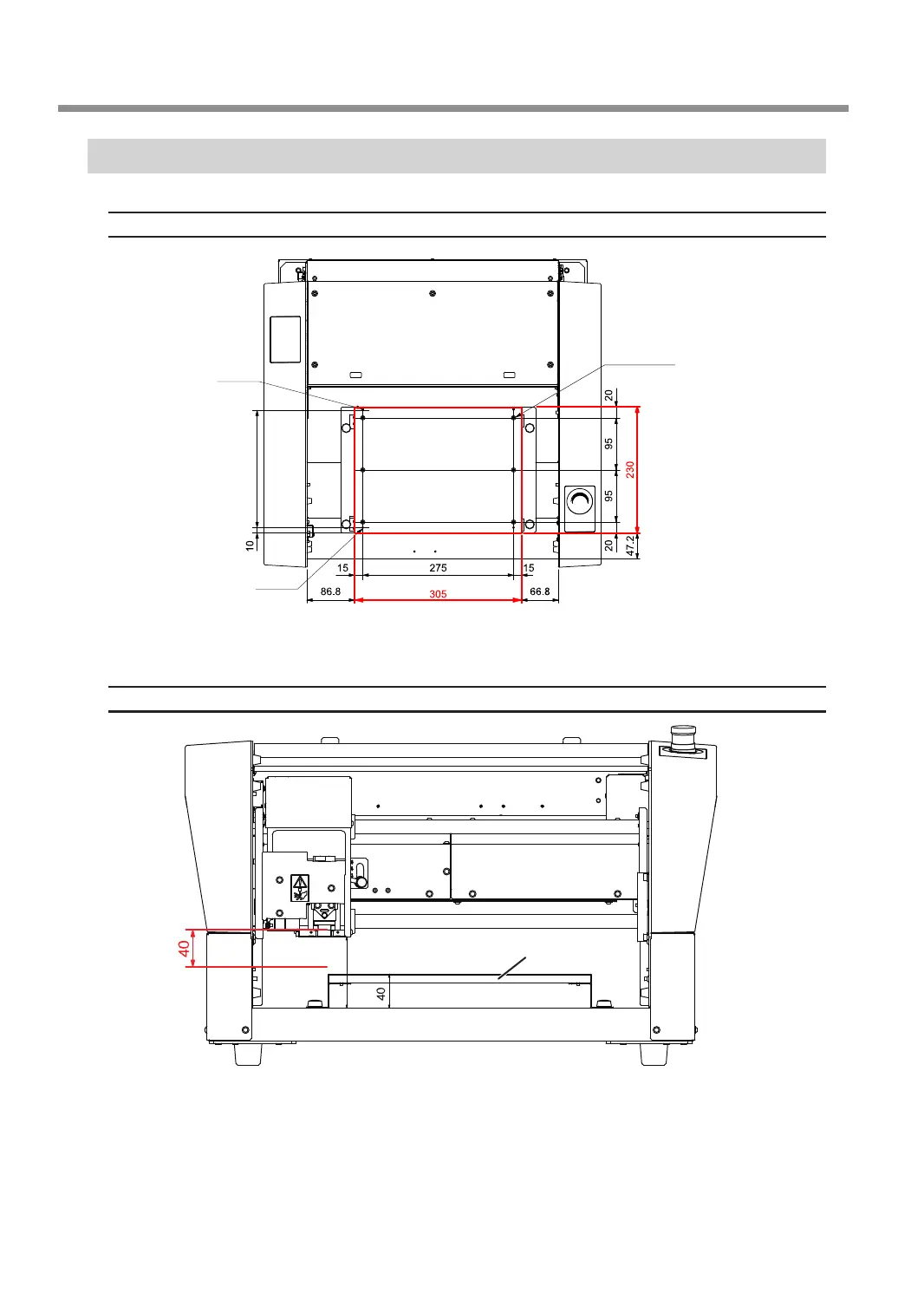

XY Operating Range
4×Φ32
6×Φ3.5凵Φ8
215
2×Φ3.1
2×Φ3.1
Unit: mm
Y operating range
/Workpiece table
dimensions
X operating range/Workpiece table dimensions
Z Operating Range
80
Unit: mm
Workpiece table
Z operating
range
* The thickness of workpiece that can actually be engraved is restricted by the length of the installed tool, the
location where the nose unit is installed and the cut-out amount, and is smaller than the range indicated above.
* When nose unit is used: The maximum distance between the workpiece table and the tip of the nose unit
is 38 mm (1.5 in.).
