ECG, arrhythmia, and ST segment monitoring with M300
142 Instructions for use – Infinity
®
M300 and M300+ series – VG3.0
ECG waveform on a BedView page of the ICS
For information on the ECG waveform on a BedView page in the ICS, refer to the Instructions for use
Infinity CentralStation Wide, Software VG4.0 or later.

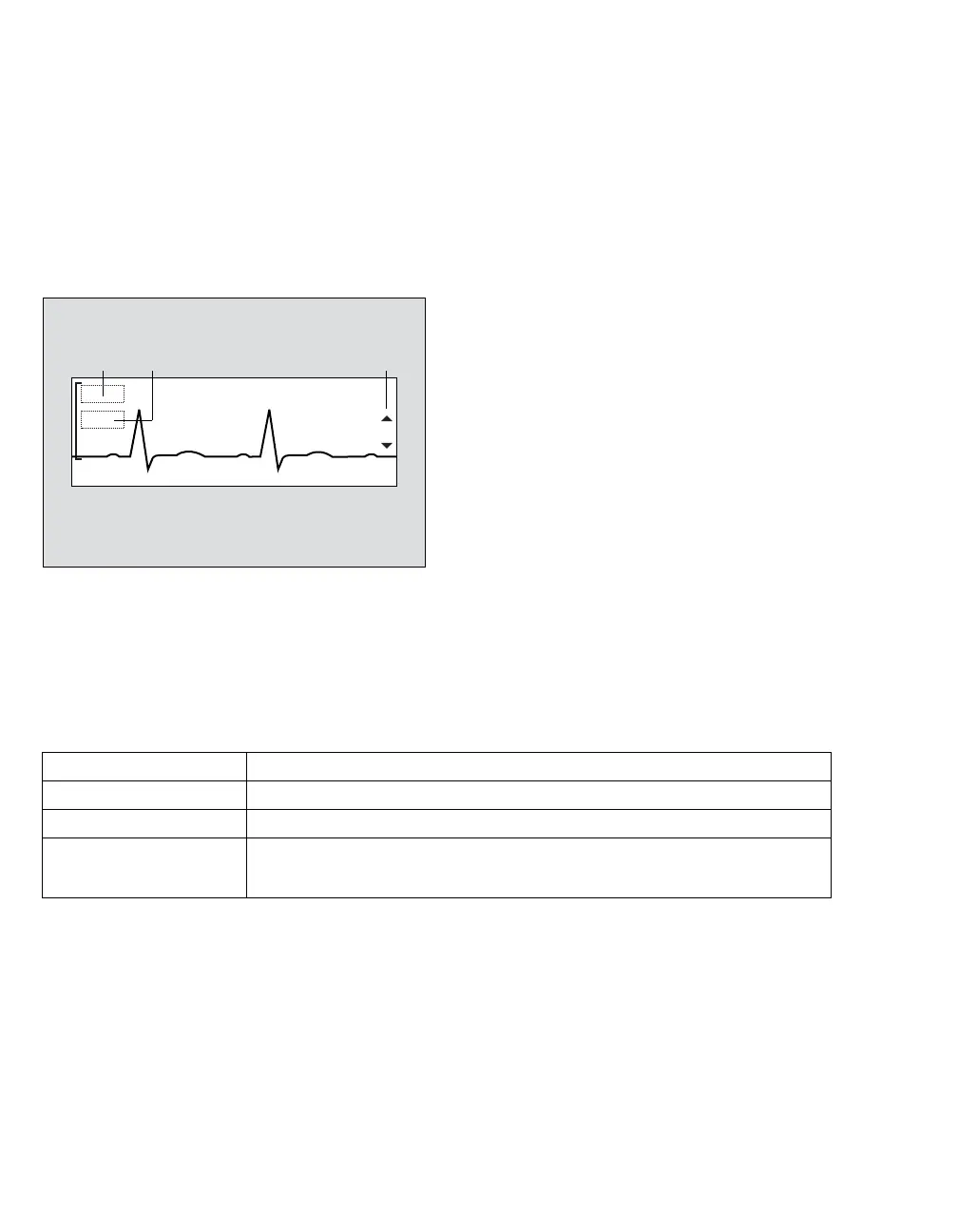

ECG waveform on the M300
A Selected waveform scale
B Lead label
C Arrows on the screen indicate that you can scroll through the different waveforms using the arrow keys
on the M300 (see page 91)
If pacer detection is enabled, blue vertical pacer spikes identify paced beats. Pacer spikes are printed on
strip recordings.
1) V and V+ are chest leads
2) The letter ’d’ (dV3, for example) indicates a derived lead
To select the number of leads and the lead wire set, see "ECG parameter setup functions" on page 148.
459
Lead wire set Available ECG leads
Three electrodes I, II, III
Five electrodes I, II, III, aVR, aVL, aVF, V
1)
Six electrodes Standard: I, II, III, aVR, aVL, aVF, V, V+
1)
TruST 12-lead: I, II, III, aVR, aVL, aVF, dV1, V2, dV3, dV4, V5, dV6
2)
A
B
C
