CH 6/ View Event Data & Reports
Event plot -rms
function keys
Stacked/Overlay - toggles between plotting rms data in a single axis plot or in
separate, up to four axis plots.

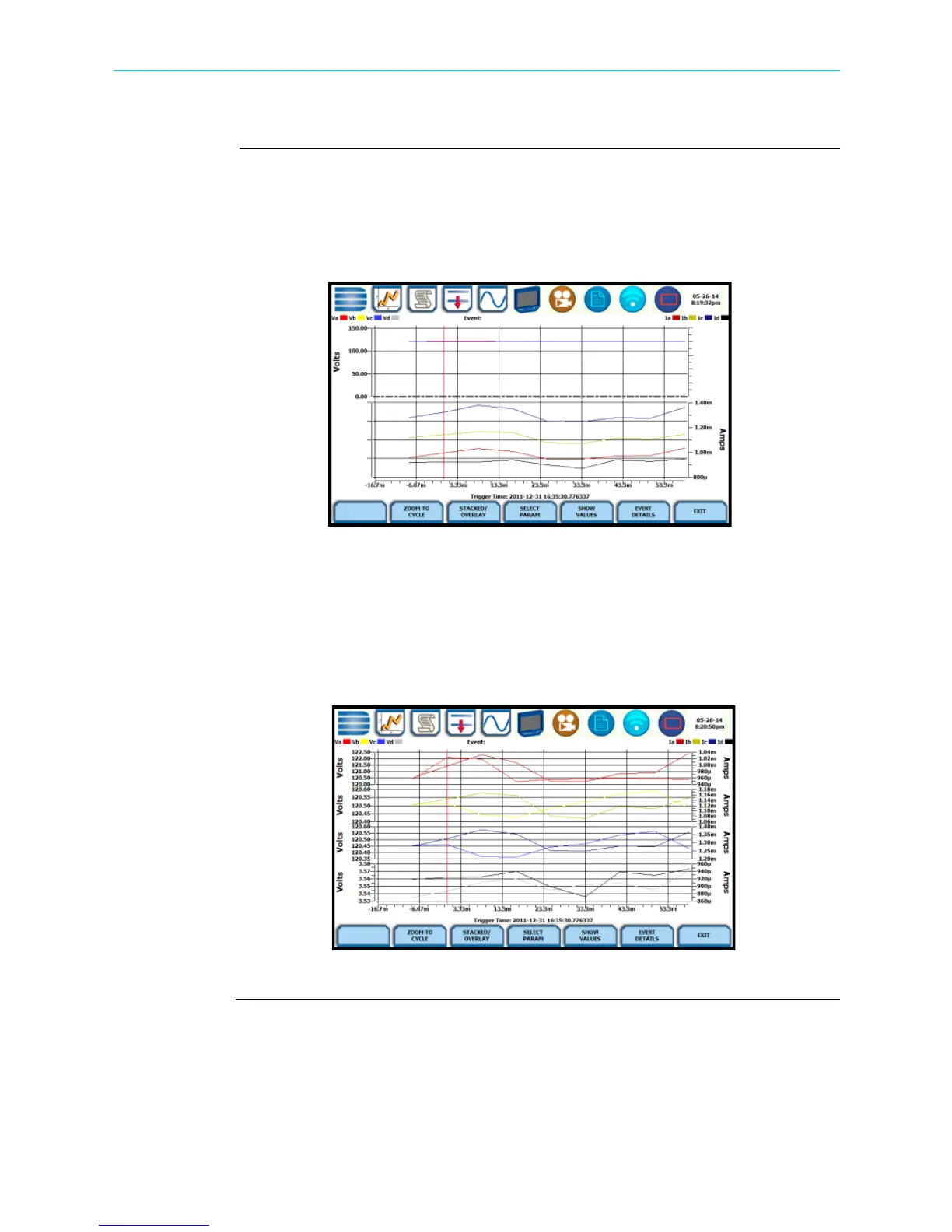

RMS Event Plot in Overlay allows you to view all voltage and current channels in the
same, single axis plot. Sample plot in overlay is shown below.
RMS Event Plot in Stacked view can display up to four (4) stacked graphs with as
many as four (4) channels in each graph. The separate plots appear stacked in a single
screen, with one plot showing all voltage channels and another plot showing all current
channels. You have the option to enable/disable plot display; display area will resize
according to the number of plots enabled for display. Sample plot in stacked view
shown below.
