Dranetz hdpq xplorer User Manual

2-8
Connecting Voltage Measurement Cables, continued
Example:
Neutral to
ground
connection

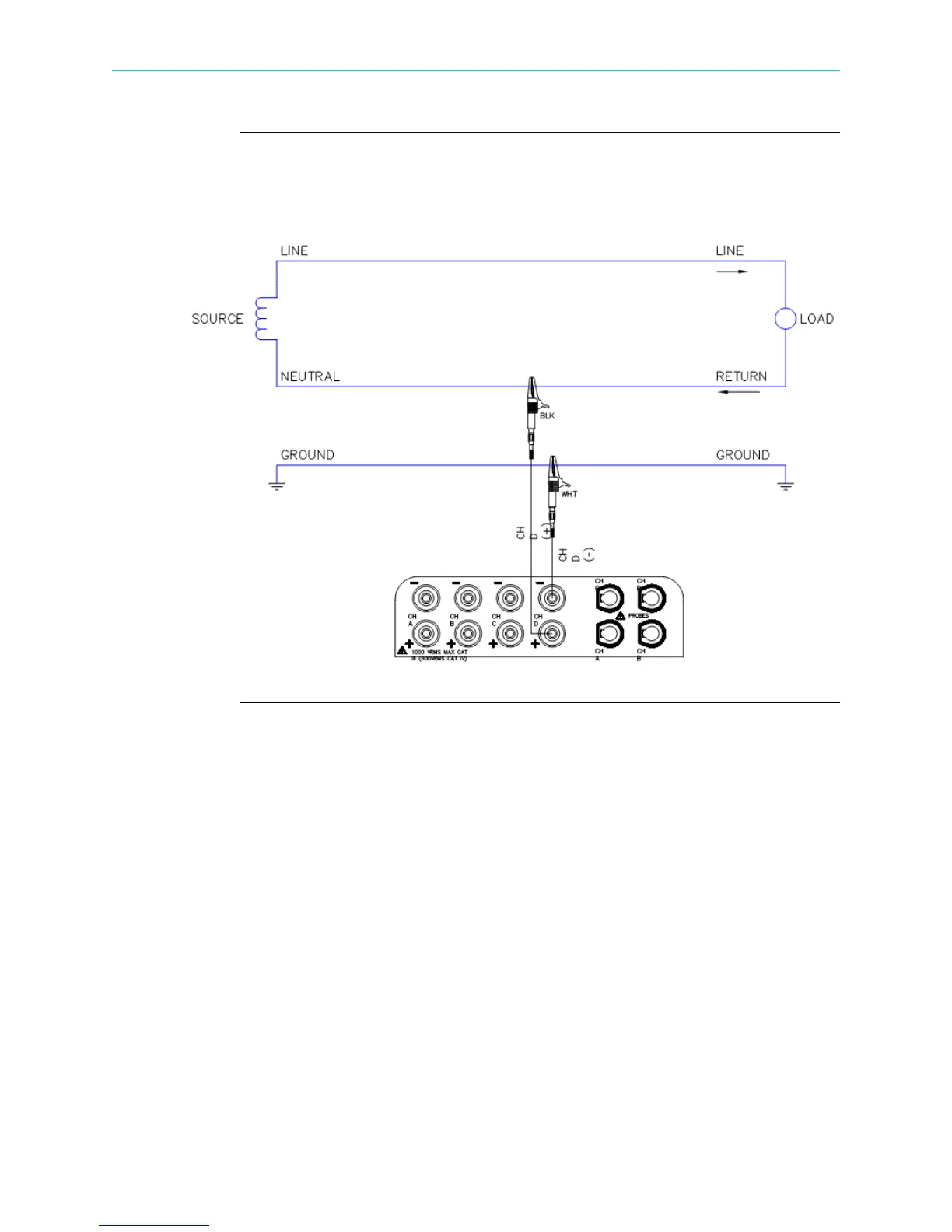

The following figure shows a voltage connection using channel D as a differential input
for measuring neutral to ground voltage or other applications. Connections are identical
for split phase and wye configurations. One probe connects the source neutral line to
the D+ input. Another probe connects the ground to the D- input.
HDPQ-901c
