DURKOPP ADLER 559 - 6 Changing of Cutting Blocks and Knives

6. Changing of cutting blocks and knives
The cutting length can be altered by changing the cutting blocks.
Caution: Danger of injury !
Change the cutting block or the knife only when the automatic
buttonholer is switched off!

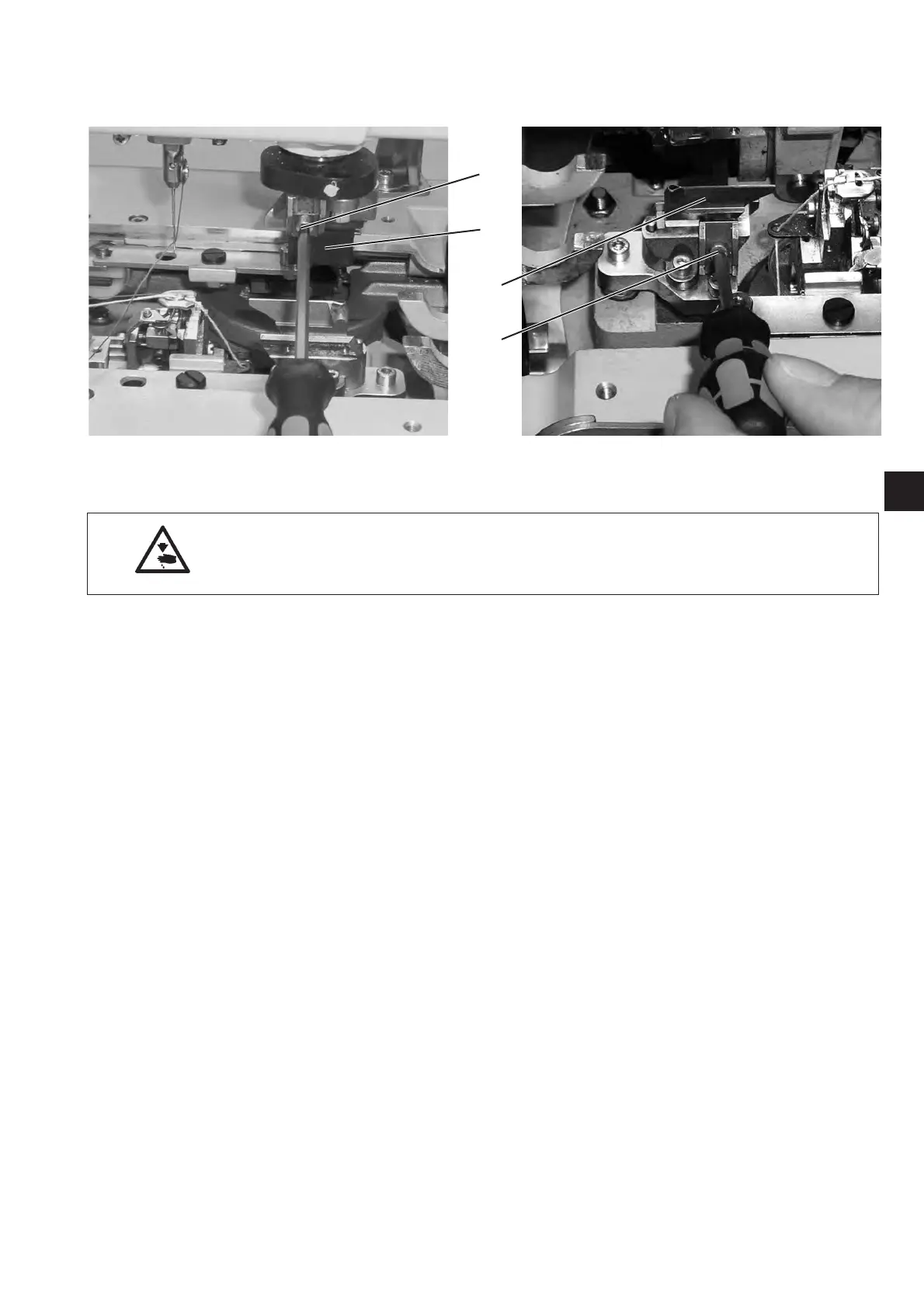

Change the cutting block
–
Loosen the Allen screw 1 (Allen k ey in the accessories).
–
Pull the cutting block 2 to the front and remove it.
–
Insert new cutting block and push it as far as it will go.
–
Tighten the Allen screw 1 again.
Change the knife
–
Loosen the Allen screw 3 (Allen k ey in the accessories).
–
Pull the knife 4 to the front and remove it.
–
Insert new knife and push it as far as it will go.
–
Tighten the Allen screw 3 again.
1
17
1
2
4
3
