7. Potential equalization
–

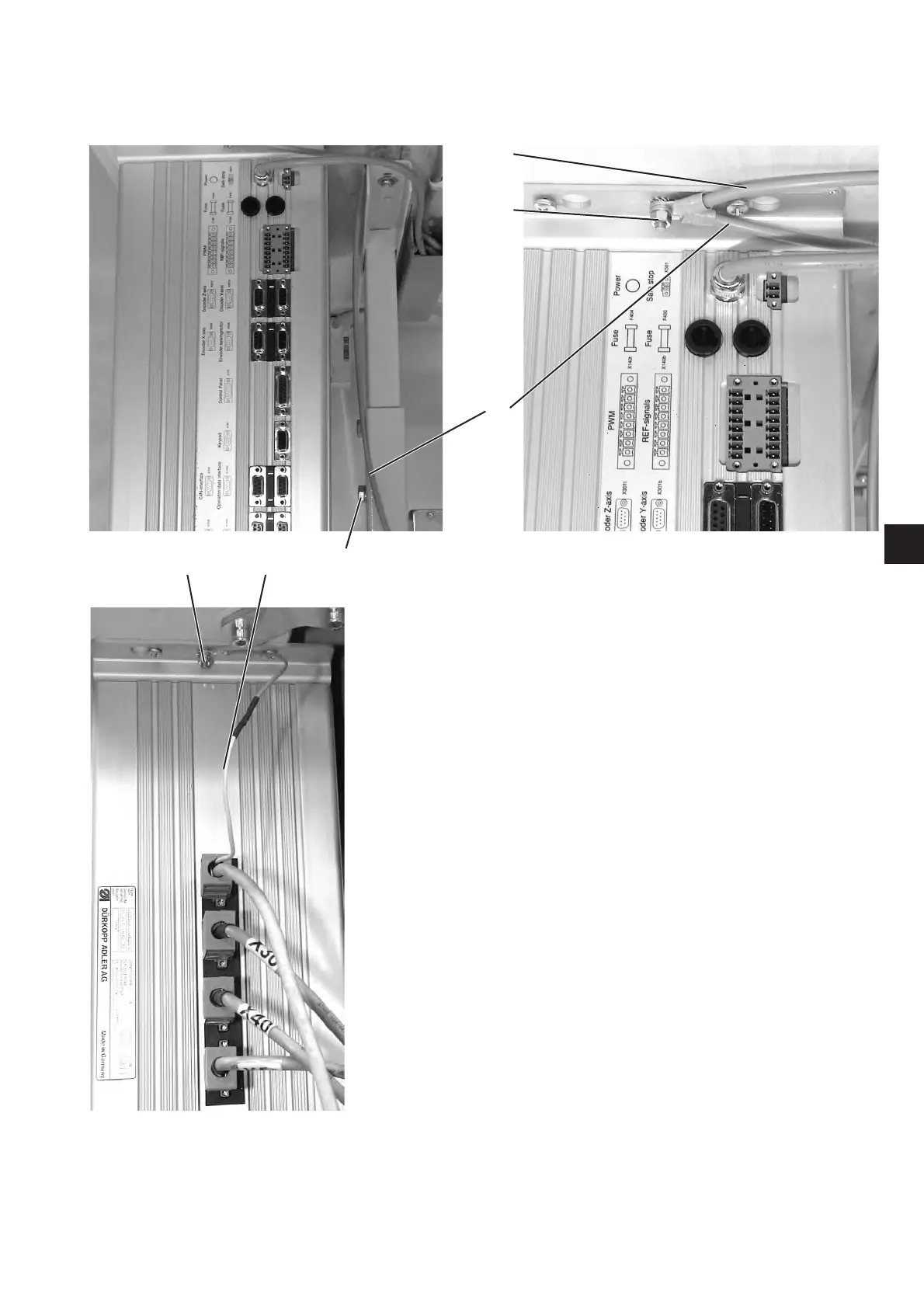

Connect the potential compensation cable 1 to the stand using the
screw and toothed washer 2 (included in the accessories).
–
Screw on the potential c ompensation cable 1 from the stand
together with the potential compensation cable 3 from the automat,
on the control box through the screw 4.
–
Screw on the potential c ompensation cable 5 from the sewing
motor to the control box through screw 6.
Attention !
When screwing on the potential compensation c able,
make sure to lay the toothed washers on the stand
or on the control box.
2
7
3
4
1
652
