10. Lubrication
Caution: Danger of injury !
Oil c an cause skin eruption.
Avoid a longer contact with the skin!
Wash yourself thoroughly after a contact!
ATTENTION !
The handling and disposal of mineral oils is subject to legal
regulations.
Deliver used oil to an authorized collecting s tation.
Protect the environment.
Be careful not to spill any oil!
Fill up the oil reservoirs exclusively w ith lubricating oil DA-10 or an
equivalent oil with the following specification:
–
Viscosity at 40°C: 10 mm²
2
/s
–
Ignition point: 150°C
The oil can be bought at the sales points of DÜRKOPP ADLER AG
under the following parts numbers:
250 ml Container: 9047 000011
1 l Container: 9047 000012
2 l Container: 9047 000013
5 l Container: 9047 000014

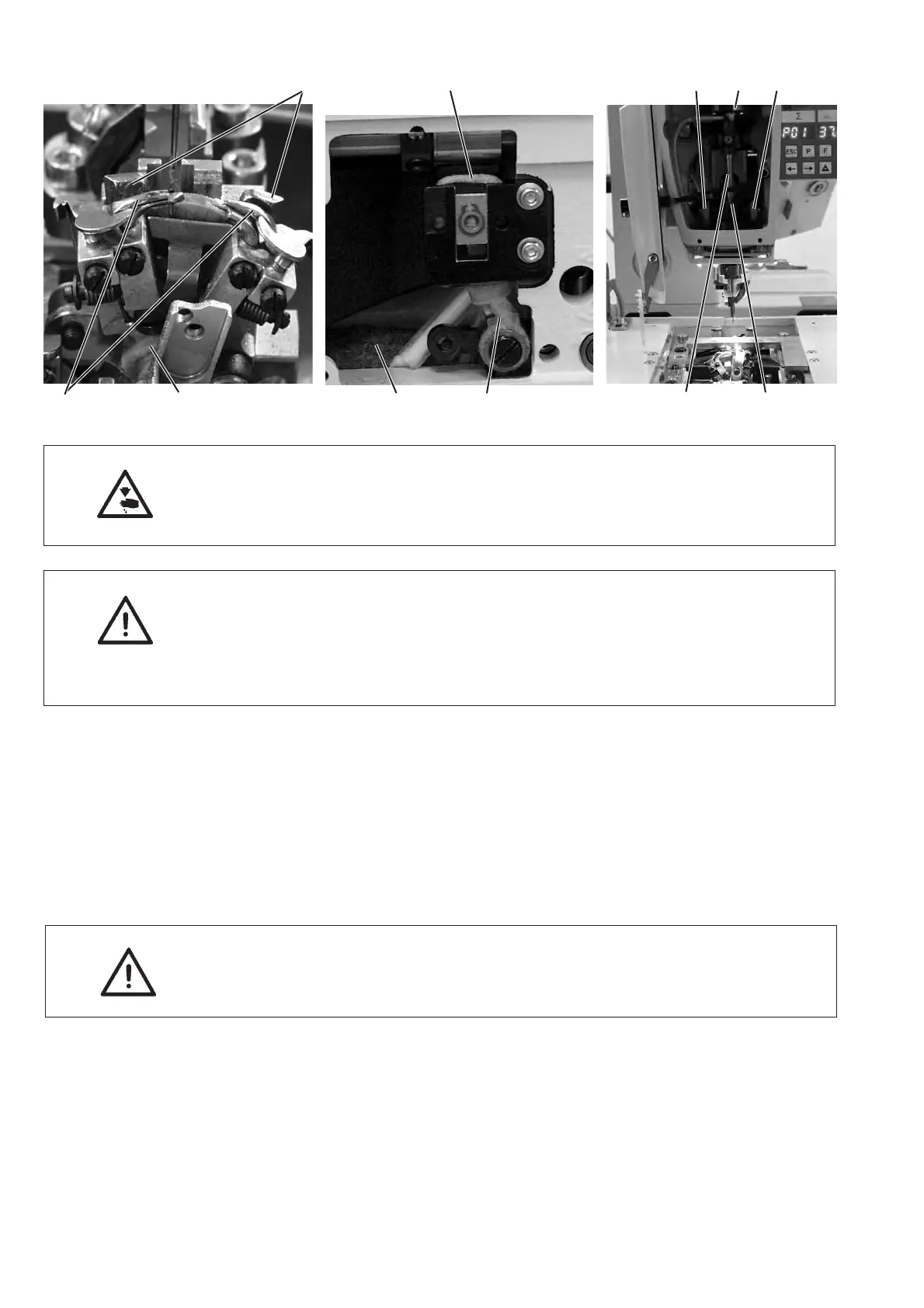

ATTENTION !
If the automatic buttonholer has not been used for a long time or after
assembling the machine, oil the wicks, felts, looper and needle bar
components.
–
Loosen screws and remove the face and front plate
–
Oil the felts and the wicks 1.
–
Apply one or two drops of oil to the needle bar and needle bar
bushing.
–
Screw on the face and front plate.
–
Remove the clamping plates.
–
Oil the wick 3.
–
Apply one or two drops of oil to the spreader 4 and the spreader plate 5.
12
43 11 22
15
111
