DURKOPP ADLER 559 Instruction Manual

9.3 Connecting the pedal
–

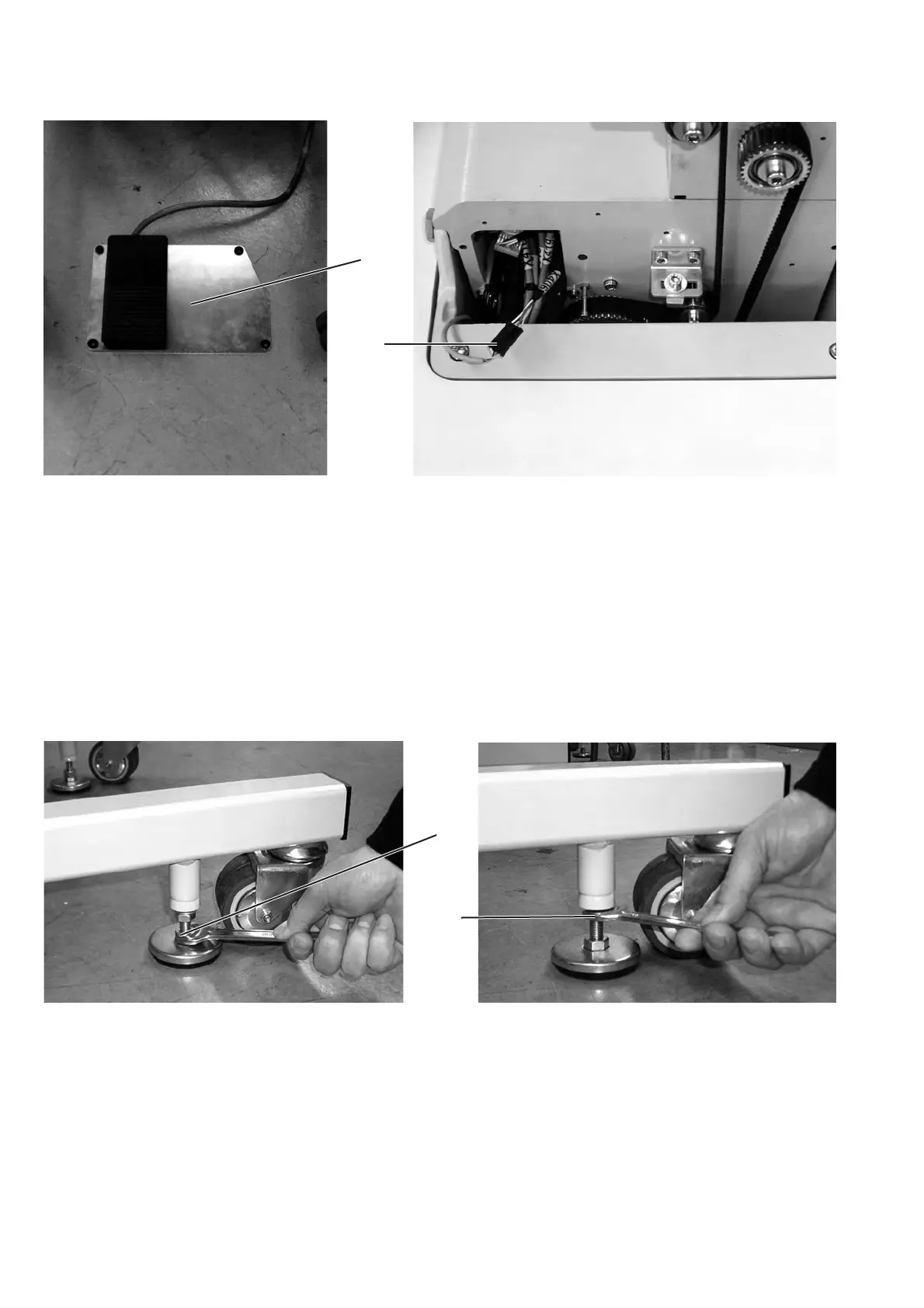

Place the pedal 1 under the s tand.
–
Screw off the handwheel and the belt protection of the automat.
–
Guide the cable of pedal 1 through the cable duct of the automat
to the top.
–
Connect the cable of pedal 1 with bush 2 (X406).
–
Screw the belt protection and the handwheel on again.
9.4 Securing the pedal
–
Screw the two support plates down with nut 1 until the automat
stands firmly and safely.
–
Screw the counternut 2 upwards and tighten it.
10
1
2
1
2
