2.4 Throw eccentric
Caution: Danger of injury !
Switch the main s witch off. Adjust the rotary thread take-up disc only
with the machine switched off.
Standard checking

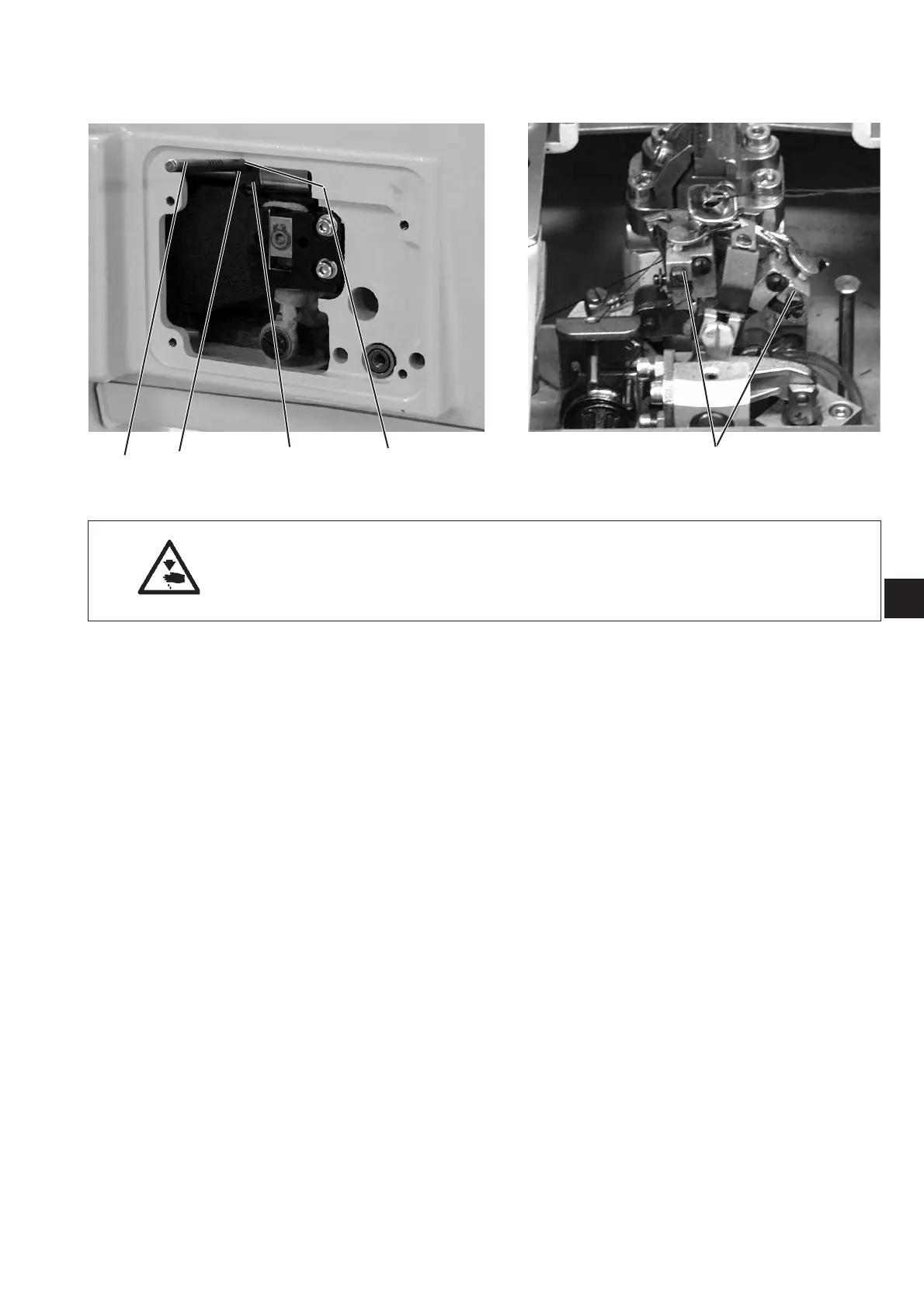

When the looper turret 5 is in its right end position (right entry point),
the arresting pin 4 inserted in the eccentric 2 should abut in the
notching 1 at the arm.
–
Turn the arm shaft in such a way that the looper turret is on the
right side (right entry point).
–
Put the arresting pin 4 in the drill-hole 3 of the eccentric 2.
–
Check whether the arresting pin 4 abuts in the notching 1 of the
arm.
Correction
–
Loosen the screws at the eccentric 2.
–
Position the eccentric with the arresting pin right on top against the
arm.
–
Tighten the screws at the eccentric 2.
3
7
43 2 1
5
