1. Scope of delivery
The scope of delivery is dependent on your order. Please check before
the assembly whether all required parts are available.
–
1 Machine head
–
2 Control
–
3 Control panel
–
4 Thread stand
–
5 Maintenance unit
–
6 Main switch
–
Right and left spacer for the distance between buttonhole
and fabric edge
–
Tools and small parts in the accessories
–
Optional equipment (depending on the order) e.g.:
- Stand
- Pneumatic connection package
- Integral sewing lamp
- Foot switch

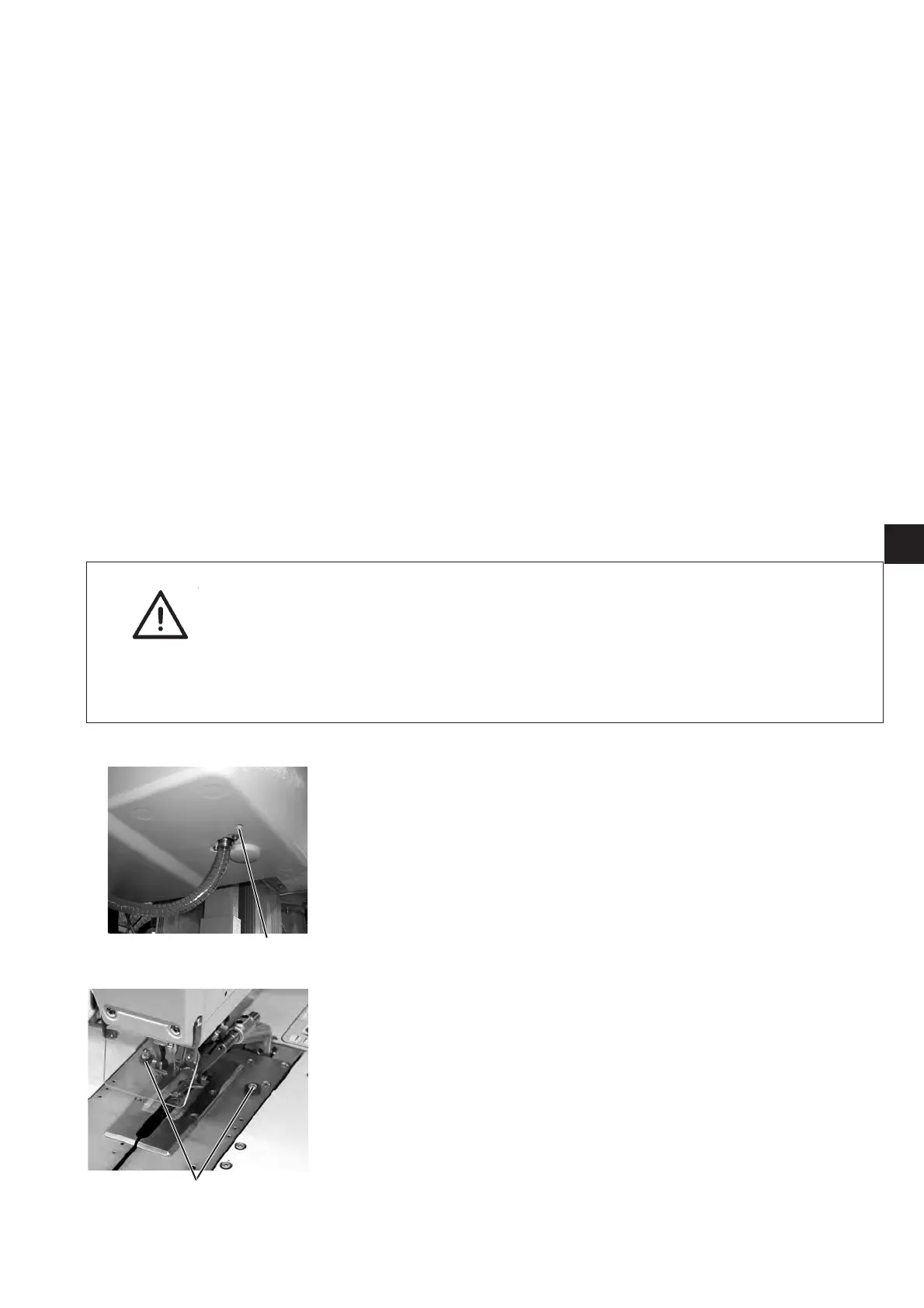

2. General notes and securing devices
ATTENTION !
The sewing automat must only be assembled by trained specialist
staff.
All work on the electric equipment of the automat must only be
carried out by electricians or correspondingly instructed persons.
The mains plug has to be pulled out.
Securing devices
Remove all securing devices before installing the sewing automat.
–
Remove tapes and battens from the machine head, the machine
table and the stand.
–
Remove screw 1. This screw avoids that the machine head swivels
up during transportation.
–
Remove screws 2.
They will prevent the clamping plates from falling.
2
3
1
2
