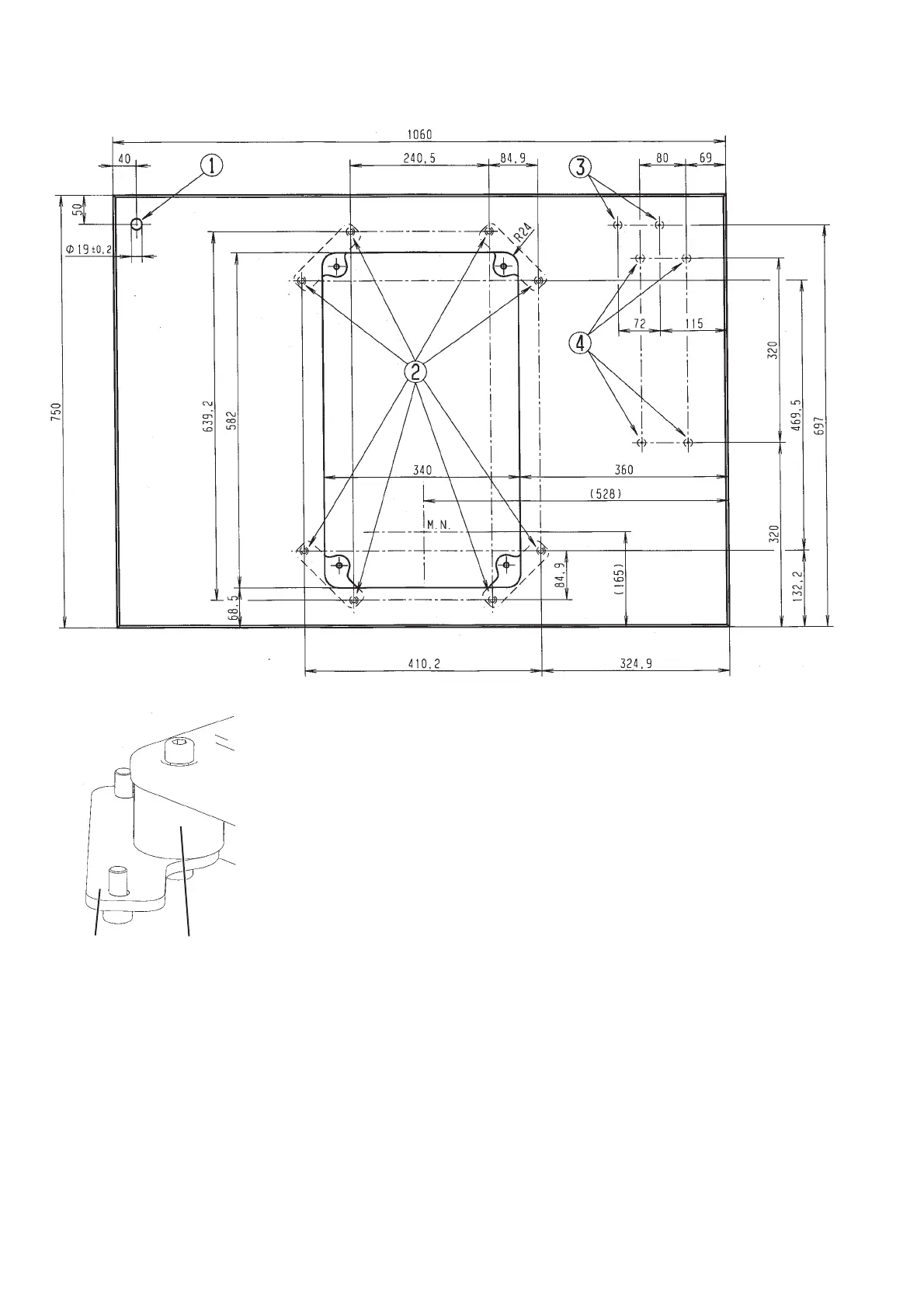

3. Table top with dimensioning
If you manufacture the table top yourself, take the above sketch as an
example for the dimensioning. The table top should be approx. 40 mm
thick.
Hole for the thread stand
Positions for screwing on the brackets. To fasten the machine
safely, use only the screwed inserts M8 x 25 DIN 7965 (the screwed
inserts are not included in the accessories) with the screws for the
brackets.
Positions for screwing on the protective bracket for the control
Positions for screwing on the control
The rubber-bonded metal buffers 5 have to be screwed between the
brackets 7 and the machine pedestal, because otherwise vibrations are
transmitted from the automat to the stand (all required parts are
included in the accessories).
4
75
